Weidmüller
WDU 2,5 BLUE DIN-RAIL Terminal
Part numberWDU 2.5 BLEAN / GTIN4008190163235HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

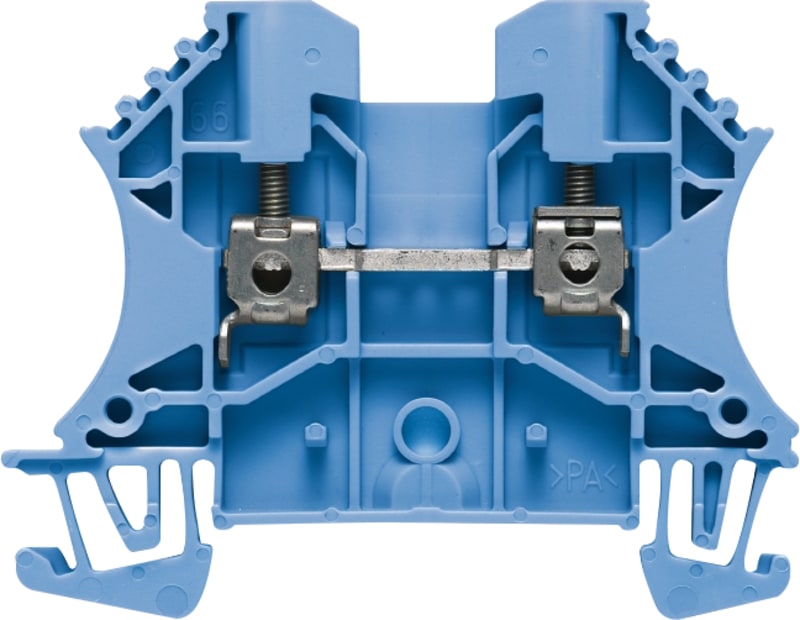

Weidmüller WDU 2.5 BL Feed-through terminal block, Screw connection.
Technical Specifications
- Manufacturer part number (MPN)
- WDU 2.5 BL
- EAN / GTIN
- 4008190163235
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 0.5–4 mm²
- Connectable conductor cross section multi-wired
- 1.5–4 mm²
- Rated current In
- 24 A
- Rated voltage
- 800 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Connection position
- Sideways
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -60–130 °C
- Width
- 5.1 mm
- Width/grid dimension
- 5.1 mm
- Height
- 60 mm
- Depth
- 46.5 mm
- Length
- 60 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Blue
- Internally connected stages
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4008190163235
- SAP 1000010042
- Code 874735
Product Documentation
Document preview: WDU 2,5 BLUE DIN-RAIL Terminal (wdu 2.5 Bl) — Specification sheet
