Weidmüller

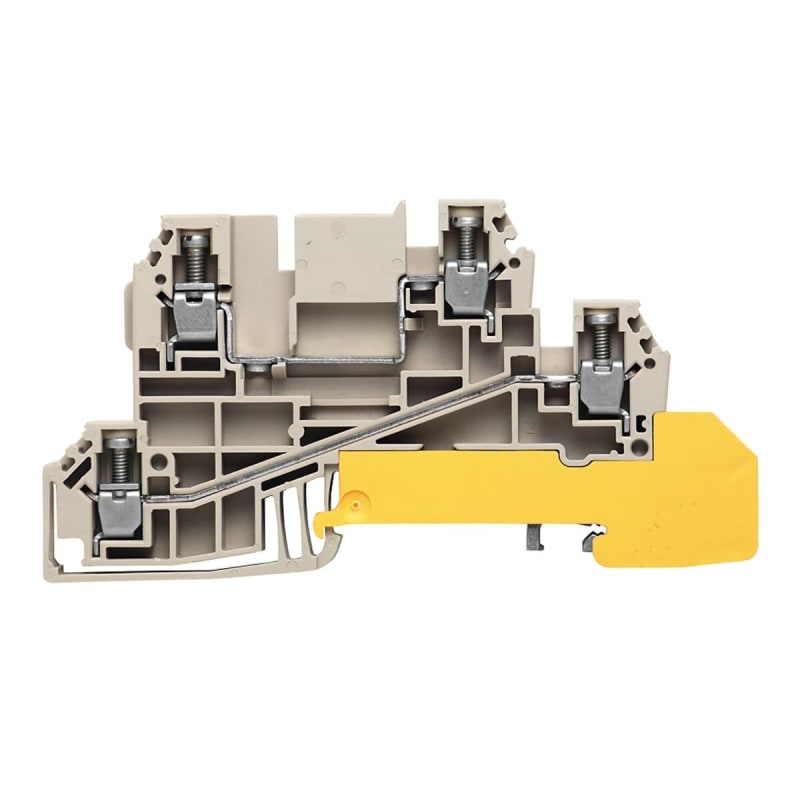

WDL 2,5/L/L/PE 3-TIER INST.
Part numberWDL 2.5/L/L/PEEAN / GTIN4008190164508HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Weidmüller WDL 2.5/L/L/PE Installsjonsklemme.
Technical Specifications
- Manufacturer part number (MPN)
- WDL 2.5/L/L/PE
- EAN / GTIN
- 4008190164508
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Connectable conductor cross section solid-core
- 0.13–4 mm²
- Connectable conductor cross section multi-wired
- 0.13–4 mm²
- Rated current In
- 24 A
- Rated voltage
- 400 V
- Type of electrical connection 1
- Screw connection
- Connection position
- Sideways
- Number of potentials
- 3
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -50–120 °C
- Width
- 6.1 mm
- Width/grid dimension
- 6.1 mm
- Height
- 90 mm
- Depth
- 48 mm
- Closing plate required
- Yes
- Length
- 90 mm
- Basic colour
- Beige
- PE-function
- Yes
- N function possible
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4008190164508
- SAP 1000079980
- Code 8571264
Product Documentation
Document preview: WDL 2,5/L/L/PE 3-TIER INST. (wdl 2.5/L/L/Pe) — Specification sheet
