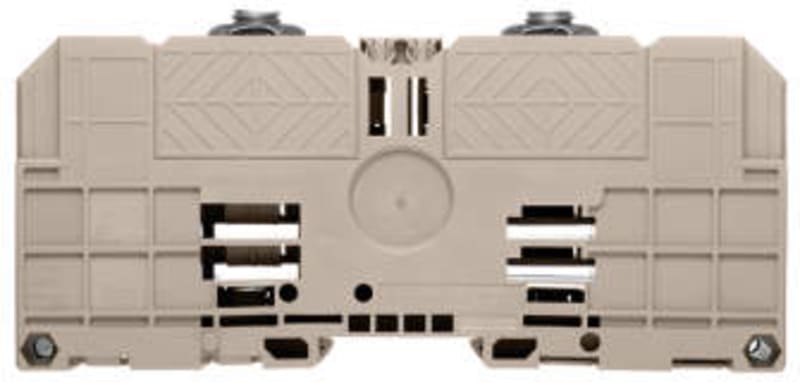

Bolt Terminal - WFF 185/AH
Pricing
Request a quote
We reply within 24 hours
Overview
Weidmüller Bolt Terminal - WFF 185/AH (part number 1029600000) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 2 pcs; Suitable for conductor material: Copper; Rated current In: 353 A; Rated voltage: 1000 V; Type of electrical connection 1: Bolt connection.
Technical Specifications
- Manufacturer part number (MPN)
- 1029600000
- EAN / GTIN
- 4008190106188
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 10–240 mm²
- Connectable conductor cross section multi-wired
- 10–240 mm²
- Rated current In
- 353 A
- Rated voltage
- 1000 V
- Type of electrical connection 1
- Bolt connection
- Type of electrical connection 2
- Bolt connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -50–120 °C
- Width
- 55 mm
- Width/grid dimension
- 55 mm
- Height
- 287 mm
- Depth
- 89.5 mm
- Length
- 287 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- No
- Colour
- Beige
- Internally connected stages
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4008190106188
- SAP 1000055967
- Code 8892772
