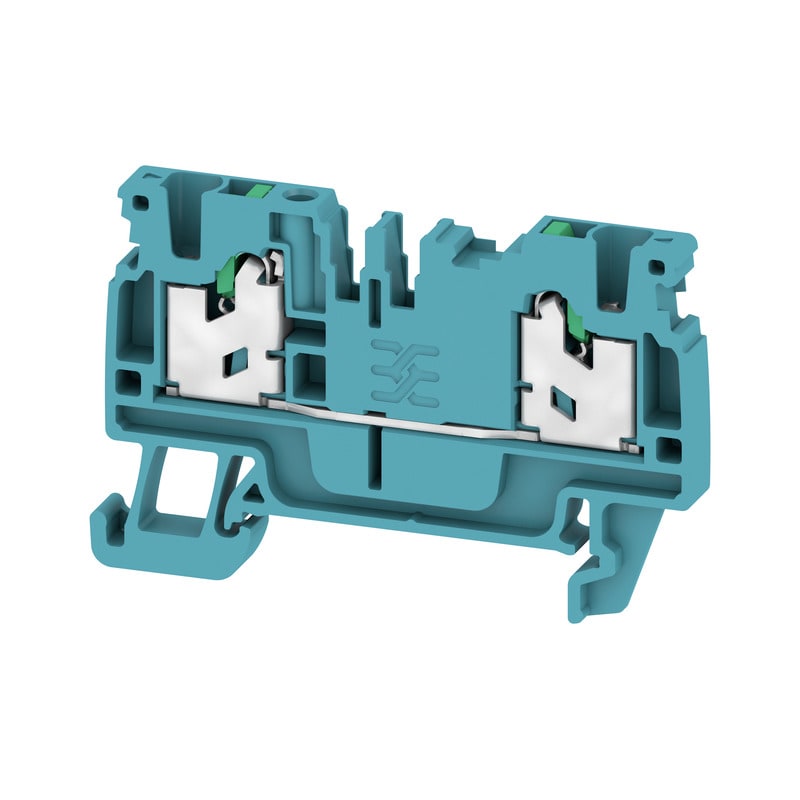

AS2C 2.5 BL
Pricing
Request a quote
We reply within 24 hours
Overview
Weidmüller AS2C 2.5 BL is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 100 pcs; Suitable for conductor material: Copper; Rated current In: 24 A; Rated voltage: 800 V; Connection position: Atop.
Technical Specifications
- Manufacturer part number (MPN)
- S2C 2.5 BL
- EAN / GTIN
- 4064675267638
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 0.34–2.5 mm²
- Connectable conductor cross section multi-wired
- 0.34–2.5 mm²
- Rated current In
- 24 A
- Rated voltage
- 800 V
- Connection position
- Atop
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -60–130 °C
- Width
- 5.1 mm
- Width/grid dimension
- 5.1 mm
- Height
- 59 mm
- Depth
- 38 mm
- Length
- 59 mm
- Explosion-tested version 'Ex e'
- No
- Closing plate required
- Yes
- Colour
- Blue
- Internally connected stages
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4064675267638
- SAP 1200571479
- Code 82932346
Product Documentation
More from Weidmüller
Weidmüller
DEKAFIX-5-FWZ 61-70 (dek 5 FWZ 61-70)
DEK 5 FWZ 61-70
Weidmüller
Earth clamp EK 35
Weidmüller
Dekafix 5 FWZ MRK 41-50 HOR
DEK 5 FWZ 41-50
Weidmüller
A3C 2,5 PE (A3C 2.5 Pe)
A3C 2.5 PE
Weidmüller
END Ferrule 1,5/14 Black DIN
H1,5/14D SW
Weidmüller
Dekafix 5 FWZ MRK 91-100 HOR
DEK 5 FWZ 91-100
Weidmüller
WSM 10 MRK 0 (bag A 200)
WSM 10 0
Weidmüller
WTA 5/ 1 Testadapter for WDU 2,5
WTA 5/1
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy S2C 2.5 BL?
- S2C 2.5 BL can be ordered from cballast.com as a Weidmüller catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Weidmüller product?
- The manufacturer part number is S2C 2.5 BL.
- What is the HS code for S2C 2.5 BL?
- The customs tariff (HS) code for S2C 2.5 BL is 8536.90.
- Who manufactures S2C 2.5 BL?
- S2C 2.5 BL is a Weidmüller product in the Electrical Components range.
- Is a datasheet available for S2C 2.5 BL?
- Yes — the S2C 2.5 BL datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for S2C 2.5 BL?
- The minimum order quantity is 1.
- Is S2C 2.5 BL available?
- Yes — S2C 2.5 BL is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
