Weidmüller
WDU 1,5/R 3,5 BL (wdu 1.5/R3.5 Bl)
Part numberWDU 1.5/R3.5 BLEAN / GTIN4032248020744HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

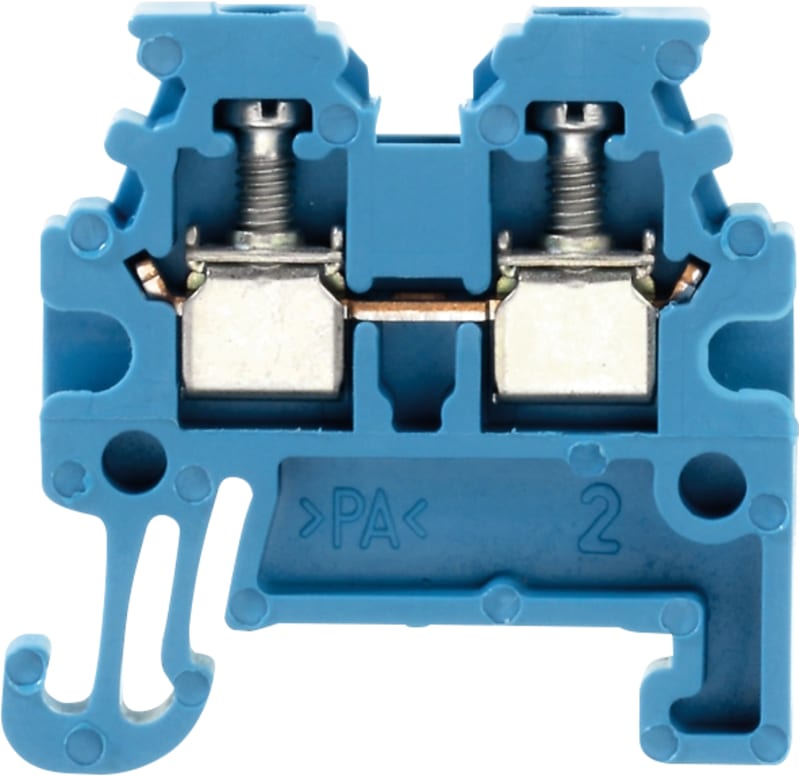

Weidmüller WDU 1.5/R3.5 BL.
Technical Specifications
- Manufacturer part number (MPN)
- WDU 1.5/R3.5 BL
- EAN / GTIN
- 4032248020744
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 0.13–1.5 mm²
- Connectable conductor cross section multi-wired
- 0.13–1.5 mm²
- Rated current In
- 17.5 A
- Rated voltage
- 400 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Connection position
- Sideways
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 15 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -60–130 °C
- Width
- 3.5 mm
- Width/grid dimension
- 3.5 mm
- Height
- 24.5 mm
- Depth
- 24 mm
- Length
- 24.5 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Blue
- Internally connected stages
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4032248020744
- SAP 1000064553
- Code 8902492
Product Documentation
Document preview: WDU 1,5/R 3,5 BL (wdu 1.5/R3.5 Bl) — Specification sheet
