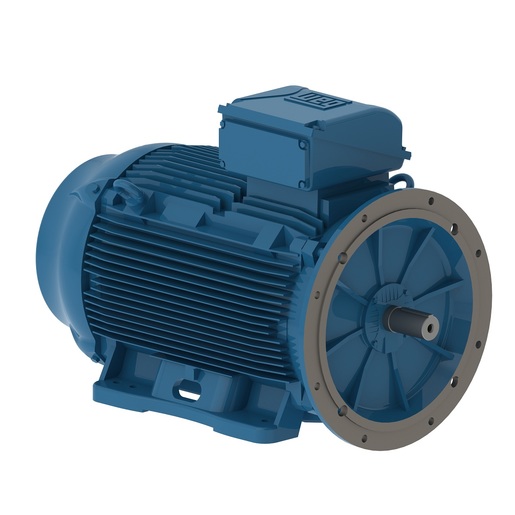

WEG W22 IE3 0.75kW 4-Pole 1500rpm B3 400V
Pricing
Request a quote
We reply within 24 hours
Product Description
WEG W22 3-phase IE3 efficiency class motor, 0.75kW, 4-pole (1500rpm synchronous at 50Hz), 400V ±10%, B3 foot-mounted. Frame 80.
Technical Specifications
- Material
- Aluminium frame, aluminium rotor
- Temperature range
- -20°C to +40°C ambient (Class F insulation)
- IP rating
- IP55
- Approval
- IEC 60034, IE3, CE
- Standards
- IEC 60034, IEC 60034-1, IEC 60034-30-1, IE3
- Approvals
- CE
- HS code
- 8501.52
- Voltage
- 400 V
- Power
- 0.75 kW
- Number of poles
- 4P
Standards & Compliance
- Material
- Aluminium frame, aluminium rotor
- Temperature Range
- -20°C to +40°C ambient (Class F insulation)
- IP Rating
- IP55
- Classification / Approval
- IEC 60034, IE3, CE
- HS Code
- 8501.52
Compatibility & Fitment
Verify kW, voltage (400V 50Hz / 460V 60Hz), speed (2/4/6 pole), frame size, and mounting type (B3/B5/B14/B35).
