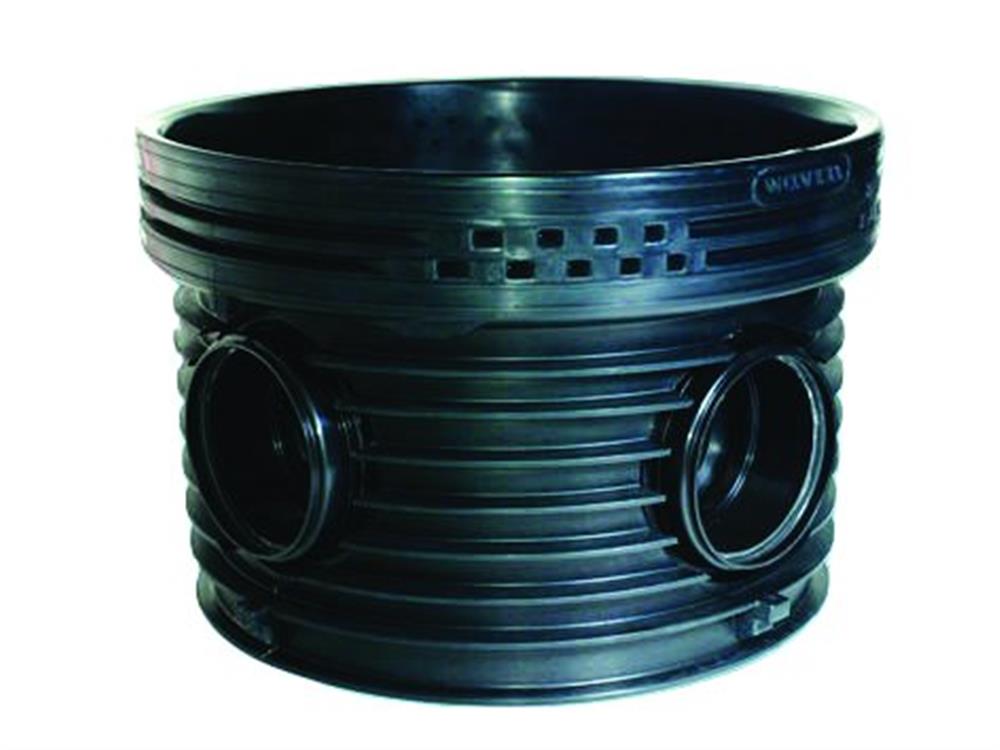

Wavin Tegra 1000 Cleaning and Inspection Well PE - 1000mm, 683mm, 200mm, 3 - 90°
Pricing
Request a quote
We reply within 24 hours
Product Description
Wavin Tegra 1000 Cleaning and Inspection Well PE. Cleaning and inspection chambers 1000/1250 mm (VA / Wells and accessories). Principal data: running pipe 1000 mm, height 683 mm, pipe dimension well 200 mm, type 3 -90°. Supplied under manufacturer part number 0532716, EAN 5708525416539, HS code 3917.40, country of origin Denmark.
Technical Specifications
- Product type
- Cleaning and inspection chambers 1000/1250 mm
- Product group
- Wells and accessories
- Running pipe
- 1000 mm
- Height
- 683 mm
- Pipe dimension well
- 200 mm
- Type
- 3 -90°
- Color
- Black
- Outer diameter
- 1188 mm
- Inner diameter
- 1109 mm
- Insert length
- 83.8 mm
- Connection
- Smooth pipe
- Weight
- 81.175 kg
- Carbon footprint (EPD)
- 354.4414 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 39174000
- HS code
- 3917.40
- Manufacturer part number
- 0532716
- GTIN (EAN)
- 5708525416539
- VVS number
- 193367200
Standards & Compliance
- HS Code
- 3917.40
Cross References
- MPN 0532716
- EAN 5708525416539
- VVS 193367200
