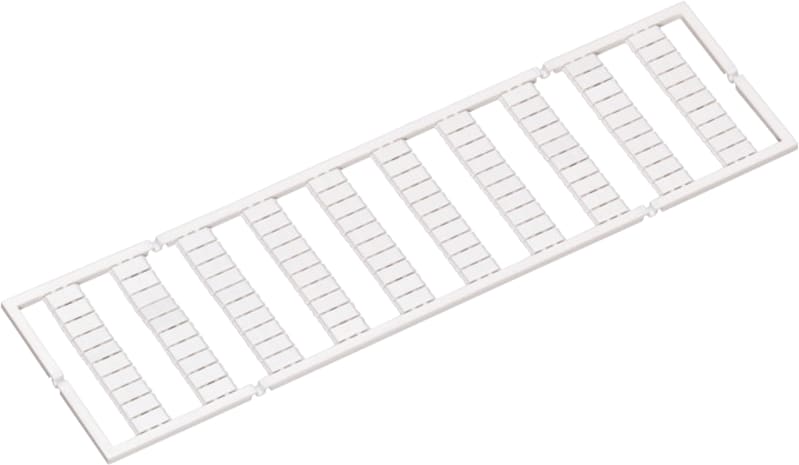

WMB marking card, 151 ... 200 (2X), stretchable 5 - 5.2 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 793-5509 Manufacturer description: WMB marking card; as card; MARKED; 151. 200 (2x); stretchable 5 - 5.2 mm; Horizontal marking; snap-on type; white. Marker Sheet for series TJS terminal blocks 5,2mm.
Technical Specifications
- Manufacturer part number (MPN)
- 793-5509
- EAN / GTIN
- 4044918927857
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Marking method
- Thermal transfer
- Marking
- 151 … 200
- Marking (number)
- 2
- Marking direction
- Horizontal marking
- Marking color
- black
- Marking type
- Numbers
- Marking layout
- Consecutive numbers per strip
- Delivery form
- Marker card
- Delivery form configuration
- 10 strips with 10 markers per card
- Flammability class per UL94
- V2
- Marker/strip width
- 5 … 5.2 mm
- Marker width
- 5 mm
- Smear resistance
- EN 60998-1:2004
- Color
- white
- UV resistance
- EN 60068-2-5:2010 Procedure B
- Halogen-free
- Yes
- Weight
- 8.5 g
- Fire load
- 0.256 MJ
- Product Group
- 2 (Terminal Block Accessories)
- PU (SPU)
- 5 pcs
- Packaging type
- bag
- Country of origin
- DE
- Customs tariff number
- 49119900000
- UNSPSC
- 55,121,731
- eCl@ss 10.0
- 27-14-11-37
- eCl@ss 9.0
- 27-14-11-37
- ETIM 9.0
- EC000761
- ETIM 10.0
- EC000761
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- EAN
- 4055143561549
- MPN
- 793-5509
- Colour
- White
- Imprint
- Numbers
- Modular spacing
- 5 mm
- Direction of coding
- Horizontal
Standards & Compliance
- HS Code
- 4911.99
Cross References
- EAN 4044918927857
- SAP 1000054990
- Code 8838908
Product Documentation
More from WAGO
WAGO
WAGO 2002-1761 TOPJOB S 3-Conductor Carrier Terminal Block 2.5 mm² Push-in Grey
WAGO
3-Conductor through terminal block, 6 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2206-1304)
WAGO
Jumper; 3-Way; insulated; light gray (2006-403)
WAGO
WMB marking card, 21 ... 30 (10X), stretchable 5 - 5.2 mm
793-5504
WAGO
WMB marking card, 201 ... 300 (1X), stretchable 5 - 5.2 mm
793-5510
WAGO
h-distribution connector, 3-Pole, 1 input, 2 outputs, 2 locking levers
770-634
WAGO
3-Conductor through terminal block, 1.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2001-1304)
WAGO
Relay module, Nominal input voltage: 12 VDC, 1 changeover contact, Limiting continuous current: 16 A
788-303
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 793-5509?
- 793-5509 can be ordered from cballast.com as a WAGO catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this WAGO product?
- The manufacturer part number is 793-5509.
- What is the HS code for 793-5509?
- The customs tariff (HS) code for 793-5509 is 4911.99.
- Who manufactures 793-5509?
- 793-5509 is a WAGO product in the Electrical Components range.
- Is a datasheet available for 793-5509?
- Yes — the 793-5509 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 793-5509?
- The minimum order quantity is 1.
- Is 793-5509 available?
- Yes — 793-5509 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
