Vilan
Sensor PRO IR Quattro DALI
Part number002749EAN / GTIN4007841002749HS code8536.90
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

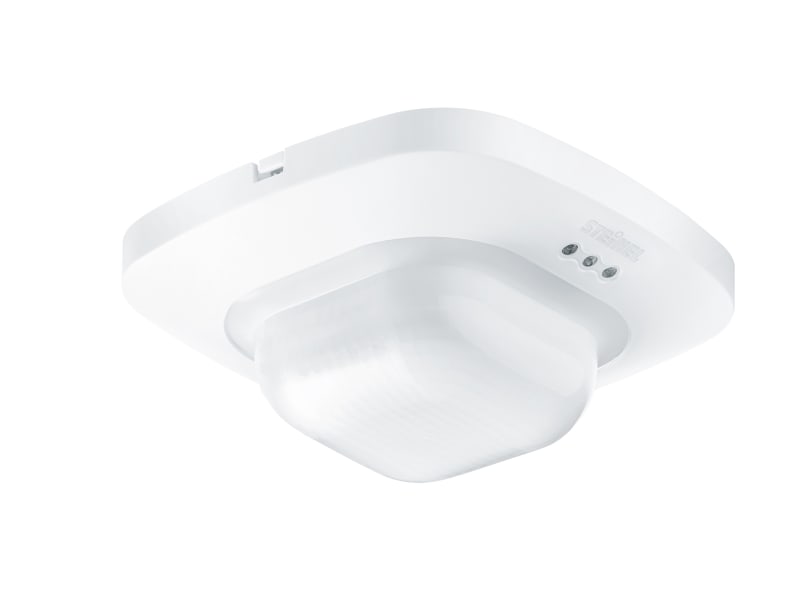

Vilan 002749 Presence detector Control Pro IR Quattro Dali.
Technical Specifications
- Manufacturer part number (MPN)
- 002749
- EAN / GTIN
- 4007841002749
- HS code
- 8536.90
- Sales unit
- pcs
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- White
- Width
- 120 mm
- Model
- Presence detector
- Halogen free
- Yes
- Height
- 76 mm
- Depth
- 76 mm
- Creep-under protection
- Yes
- Voltage type
- AC
- Switch-off delay
- 1800 s
- Frequency
- 50–60 Hz
- With remote control
- No
- Diameter
- 120 mm
- Suitable for wall mounting
- No
- Staircase light controller
- No
- Bridging switch
- Yes
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 3.5 m
- Max. reach sideways
- 3.5 m
- Max. switching power
- 2000 W
- Temperature
- -25–55 °C
- Max. starting current
- 800 A
- Material
- Plastic
- Response value sensitivity adjustable
- No
- Dim function with dimmer basic element
- Yes
- Response value luminosity
- 10–1000 lx
- Suitable for C-load
- Yes
- Diameter reach on floor
- 5 m
- Remote operation
- Yes
- HVAC-control
- No
- Constant light control
- Yes
- Substation input
- Yes
- RAL-number (similar)
- 9010
- With signal unit
- Yes
- Teach-function for response value luminosity
- Yes
- Networkable
- Yes
- Forced switch off
- Yes
- Scan angle
- 360 °
- With connection cable
- Yes
- Degree of protection (IP)
- IP20
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Matt
- Detection angle horizontal
- 360 °
- Min. switch-on time
- 30 s
- Max. duty cycle
- 30 min
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 2.8 m
- Constant light output (CLO)
- Yes
- Number of switching zones
- 1760
- With DALI interface
- Yes
- IFTTT support available
- No
- Forced switch on
- Yes
- Min. starting current
- 0 A
- Min. depth of built-in installation box
- 66 mm
- Max. presence range
- 4 m²
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Compatible with Casambi
- No
- Background monitoring
- No
- With acoustic sensor
- No
- Ceiling built-in mounting without installation box
- Yes
- Movement sensor/presence detector technology
- Passive infrared
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- Yes
- Anti-bacterial treatment
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4007841002749
- SAP 1000338288
- Code 8938902
Product Documentation
Document preview: Sensor PRO IR Quattro DALI (002749) — Specification sheet
