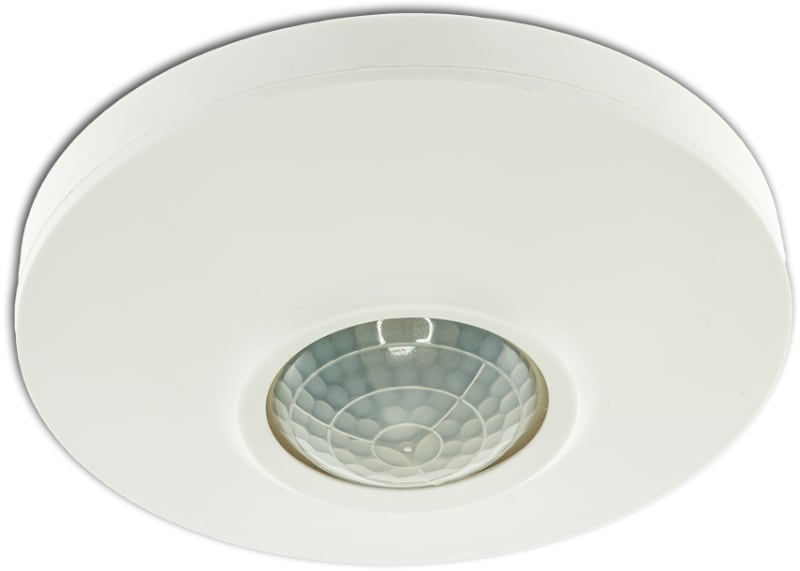

Vanpee PIR Presence Detector with Daylight Sensor 2x25 DALI

Flush-mounted passive-infrared presence detector with integral daylight sensor, controlling up to 2 x 25 DALI ballasts across two channels with support for parallel push-buttons on each channel and a shared bus. 360-degree horizontal detection with 6 m reach at 2.4 m mounting height, adjustable luminosity threshold and constant-light control for daylight-linked dimming. Typical application is office, classroom and corridor lighting where occupancy-driven daylight regulation is required.

Manufacturer part number (MPN)

505384M

EAN / GTIN

7070881212949

Sales unit

pcs

Mounting method

Flush-mounted

Colour

White

Model

Movement sensor

Halogen free

Yes

Creep-under protection

No

Staircase light controller

No

Suitable for wireless transmission

No

Material quality

Thermoplastic

Max. reach frontally

6 m

Max. reach sideways

6 m

Material

Plastic

Response value sensitivity adjustable

Yes

Dim function with dimmer basic element

Yes

Diameter reach on floor

6 m

HVAC-control

No

Constant light control

Yes

Mounting height

2.4 m

Teach-function for response value luminosity

No

Networkable

No

Operation mode switch

No

Animal zone

No

Detection angle horizontal

360 °

Min. switch-on time

18 s

Max. duty cycle

20 min

Suitable for degree of protection (IP)

IP20

Response value luminosity adjustable

Yes

Switch-off delay self-learning

No

Constant light output (CLO)

No

Sensor type

Passive infrared

Country of origin

Taiwan

HS Code

8536.90

• EAN 7070881212949
• SAP 1000684461
• Code 8390245
