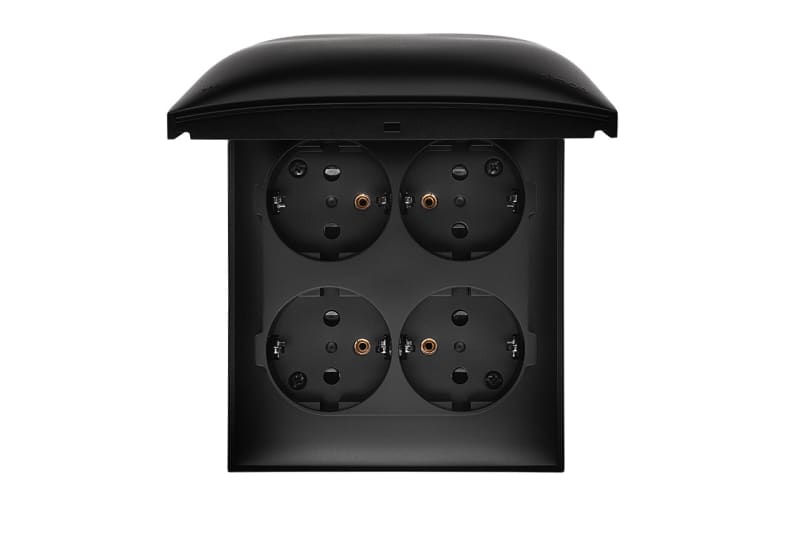

Urmet Socket Outlet 4-Way IP44 Wall-Mounted 16A Screw X4 Matt Black
Pricing
Request a quote
We reply within 24 hours
Product Description
Urmet 1505684 is a 4-way X4 socket outlet in a matt black IP44 wall-mounted enclosure, rated 16 A / 230 V AC 50 Hz with screw terminals. Each of the four positions accepts a CEE 7 protective-contact plug and the hinged lid protects the sockets when not in use. The thermoplastic housing is finished in RAL 9005 lacquered black with rotated central inserts for direct cable entry.
Technical Specifications
- Manufacturer part number (MPN)
- 1505684
- HS code
- 8536.90
- Sales unit
- pcs
- IP rating
- IP44
- Rated current
- 16 A
- Nominal current
- 16 A
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- Black
- Halogen free
- Yes
- Number of units
- 1
- Lockable
- No
- With hinged lid
- Yes
- Connection type
- Screwed terminal
- Surface protection
- Lacquered
- With signal lamp
- No
- Number of phases
- 2
- With enhanced contact protection
- Yes
- Frequency
- 50 Hz
- With on/off switch
- No
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- Yes
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Imprint/indication
- None
- RAL-number (similar)
- 9005
- Transparent
- No
- Surface finishing
- Matt
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP44
- Device width
- 110 mm
- Device height
- 130 mm
- Device depth
- 53 mm
- With function lighting
- No
- With orientation lighting
- No
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Number of active contacts (round)
- 4
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- No
- Anti-bacterial treatment
- No
- Country of origin
- Poland
