Unilamp
Switch Park 2200/3000/4000K 40W Ø60.
Part number3500710EAN / GTIN7072125133973HS code8536.90
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

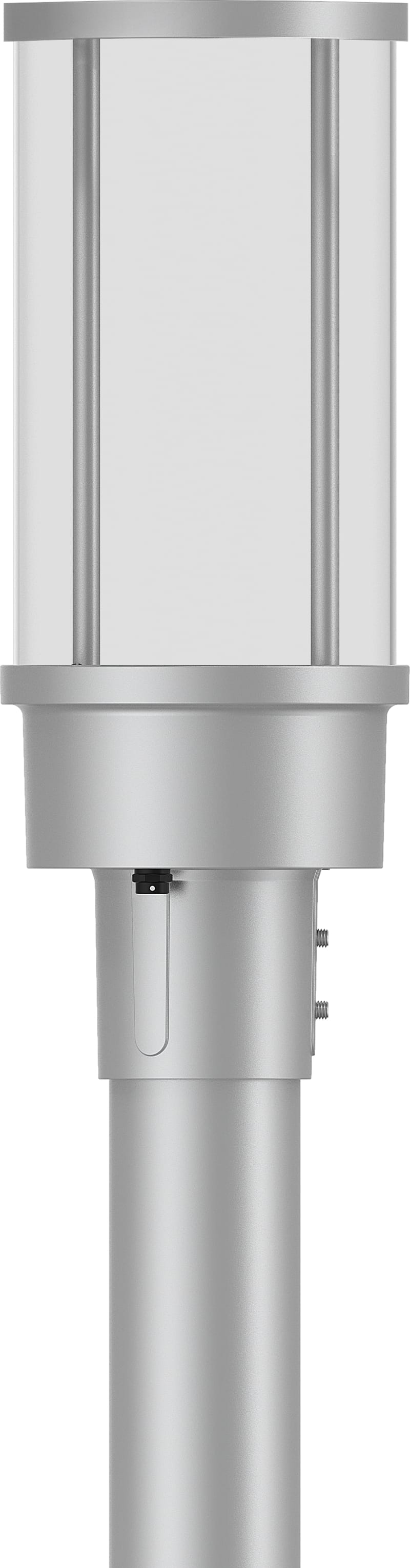

Unilamp 3500710 Switch Park 2200/3000/4000K 40W Ø60 Silver with 5m attached cable.
Technical Specifications
- Manufacturer part number (MPN)
- 3500710
- EAN / GTIN
- 7072125133973
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Power
- 40 W
- Mounting method
- Post top
- Protection class according to IEC 61140
- I
- Conductor cross section
- 2.5 mm²
- Housing colour
- Silver
- Surface protection
- Powder coating
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Cable length
- 5 m
- Diameter
- 550 mm
- With light sensor
- No
- Number of poles
- 3
- Height/depth
- 460 mm
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Material cover
- Plastic, transparent
- Impact strength
- IK08
- With connection cable
- Yes
- Degree of protection (IP)
- IP66
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Adjustable optics
- No
- Max. system power
- 40 W
- Rated luminous flux according to IEC 62722-2-1
- 3200 lm
- Colour of light
- White
- Remote control
- None
- With radio control
- No
- With light regulation program control
- No
- Constant light output (CLO)
- No
- Type of wiring
- Ending
- Rated lifetime L70/B50 at 25 °C
- 225000 h
- Colour consistency (McAdam ellipse)
- SDCM3
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dim function
- Yes
- Light distributor
- Diffuser lens/optic/panel
- Luminaire efficacy
- 80 lm/W
- Dimming DSI
- No
- Operation by Bluetooth
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Exchangeable control gear
- No
- Power factor
- 0.9
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7072125133973
- SAP 1200938583
- Code 84227890
Product Documentation
Document preview: Switch Park 2200/3000/4000K 40W Ø60. (3500710) — Specification sheet
