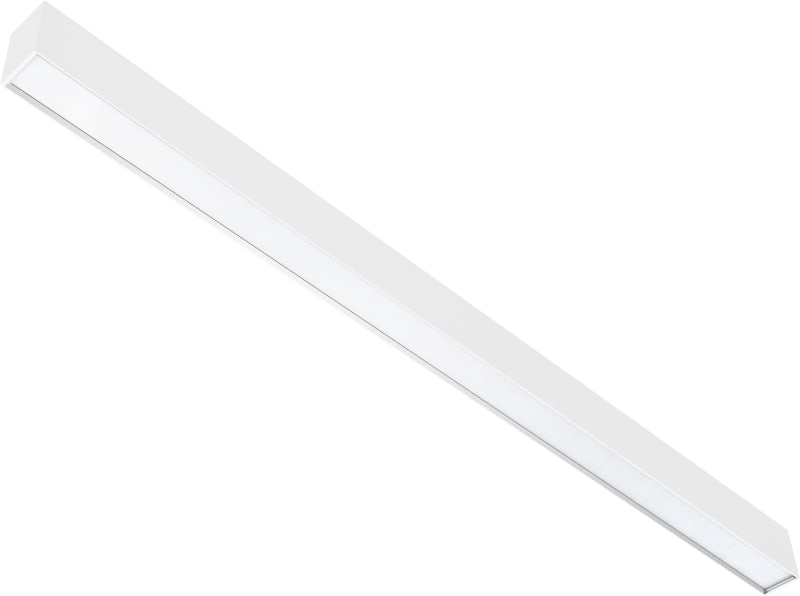

Unilamp Profile-P 1400 U/D SD 4650lm 3/4K MP Suspended
Pricing
Request a quote
We reply within 24 hours
Product Description
Unilamp 3323870 suspended luminaire with up/down light distribution and a pull-cord switch. Microprismatic shielding on the downlight optic keeps UGR below 19. Aluminium housing with white finish and a structured plastic cover, LED not exchangeable and LineSwitch plus leading/trailing-edge phase dimming supported. IP20 rating, protection class I, rated lifetime L70/B50 150,000 h at 25 °C.
Technical Specifications
- Manufacturer part number (MPN)
- 3323870
- EAN / GTIN
- 7072125121475
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Operation by Bluetooth
- No
- Suitable for light line configuration
- No
- Suitable for workplace according to EN 12464-1
- Yes
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 2
- Housing material
- Aluminium
- Housing colour
- White
- Material cover
- Plastic, structured
- Type of grid
- None
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- With control gear
- Yes
- Exchangeable control gear
- No
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DALI-2
- No
- Dimming DMX
- No
- Dimming programmable
- No
- Dimming DSI
- No
- Dimming RF
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- Yes
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- Yes
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dim function
- No
- Light distributor
- Diffuser lens/optic/panel
- Reflector
- None
- Light distribution
- Symmetric
- Colour consistency (McAdam ellipse)
- SDCM3
- Light outlet
- Direct/indirect
- Direct-/indirect proportion separately controllable
- No
- Rated lifetime L70/B50 at 25 °C
- 150000 h
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- I
- Suitable for emergency lighting
- No
- Emergency power supply integrated
- No
- Filament test according to IEC 60695-2-11
- None
- Max. system power
- 44 W
- Rated luminous flux according to IEC 62722-2-1
- 4650 lm
- Colour of light
- White
- Luminaire efficacy
- 105 lm/W
- Colour rendering index CRI
- 80-89
- Unified Glare Ratio (UGR)
- 19
- Power factor
- 0.9
- Constant light output (CLO)
- No
- Colour of light adjustable
- No
- Luminous flux adjustable
- Continuously variable
- Beam angle adjustable
- No
- Width
- 50 mm
- Height/depth
- 72 mm
- Length
- 1410 mm
- With suspension
- Yes
- Type of wiring
- Ending
- Number of poles
- 3
- Conductor cross section
- 2.5 mm²
- Connection type
- Push-in clamp
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7072125121475
- SAP 1200938520
- Code 84227860
