Unilamp

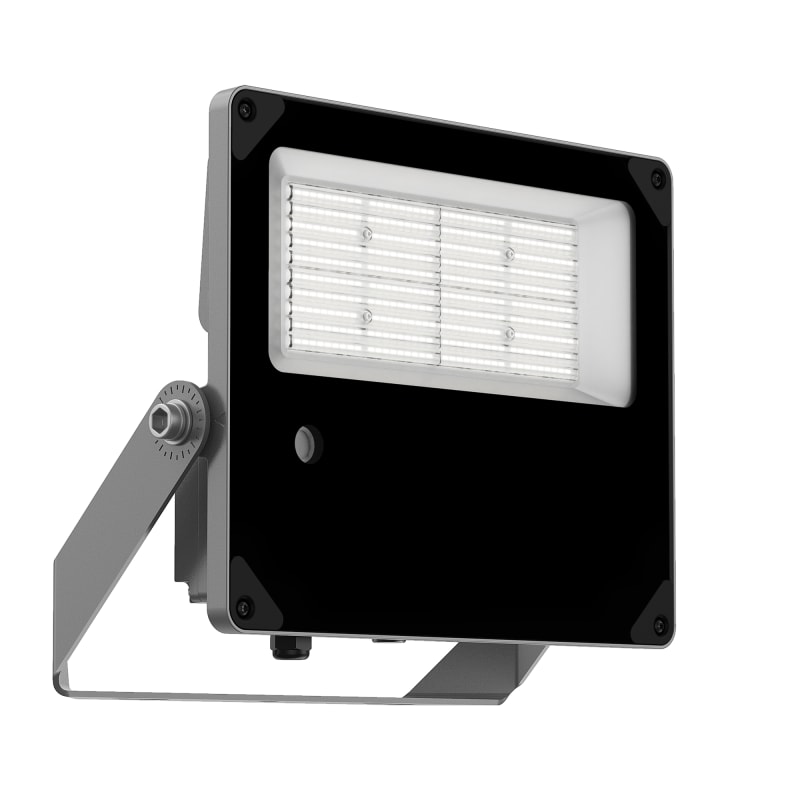

Switch Marina 100W 15000LM 3CCT
Part number3241952HS code8536.90
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Unilamp 3241952 Switch Marina 100W 15000lm 3CCT.
Technical Specifications
- Manufacturer part number (MPN)
- 3241952
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 100 W
- Protection class according to IEC 61140
- I
- Width
- 310 mm
- Conductor cross section
- 2.5 mm²
- Connection type
- Screwed terminal
- Housing colour
- Grey
- Dimmable
- No
- Surface protection
- Powder coating
- Voltage type
- AC
- With movement sensor
- No
- Suitable for lamp power
- 50 W
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Cable length
- 1.5 m
- With light sensor
- Yes
- Number of poles
- 3
- Length
- 342 mm
- Height/depth
- 56 mm
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- With presence detector
- No
- Material cover
- Glass transparent
- Impact strength
- IK08
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP66
- With light source
- Yes
- Built-in battery
- No
- Suitable for number of light sources
- 1
- Connectable conductor cross section
- 0.75–2.5 mm²
- Nominal current
- 180–300 mA
- Colour temperature
- 2200–4000 K
- Max. system power
- 50 W
- Colour of light
- White
- Remote control
- None
- With radio control
- No
- Type of wiring
- Suitable for loop-through wiring
- Rated lifetime L70/B50 at 25 °C
- 110000 h
- Colour consistency (McAdam ellipse)
- SDCM3
- Rated ambient temperature according to IEC 62722-2-1
- -30–50 °C
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Sine Wave Reduction
- No
- Dimming Zigbee
- No
- Light distributor
- Diffuser lens/optic/panel
- Luminaire efficacy
- 150 lm/W
- Dimming DSI
- No
- Operation by Bluetooth
- No
- Dimming DALI-2
- No
- Exchangeable control gear
- Yes
- Dimming D4i
- No
- Solar powered
- No
- With integrated PV panel
- No
- Suitable for off-grid power system
- No
- Rated luminous flux according to IEC 62722-2- 1
- 15000 lm
- Power factor
- 0.9
- Country of origin
- China
