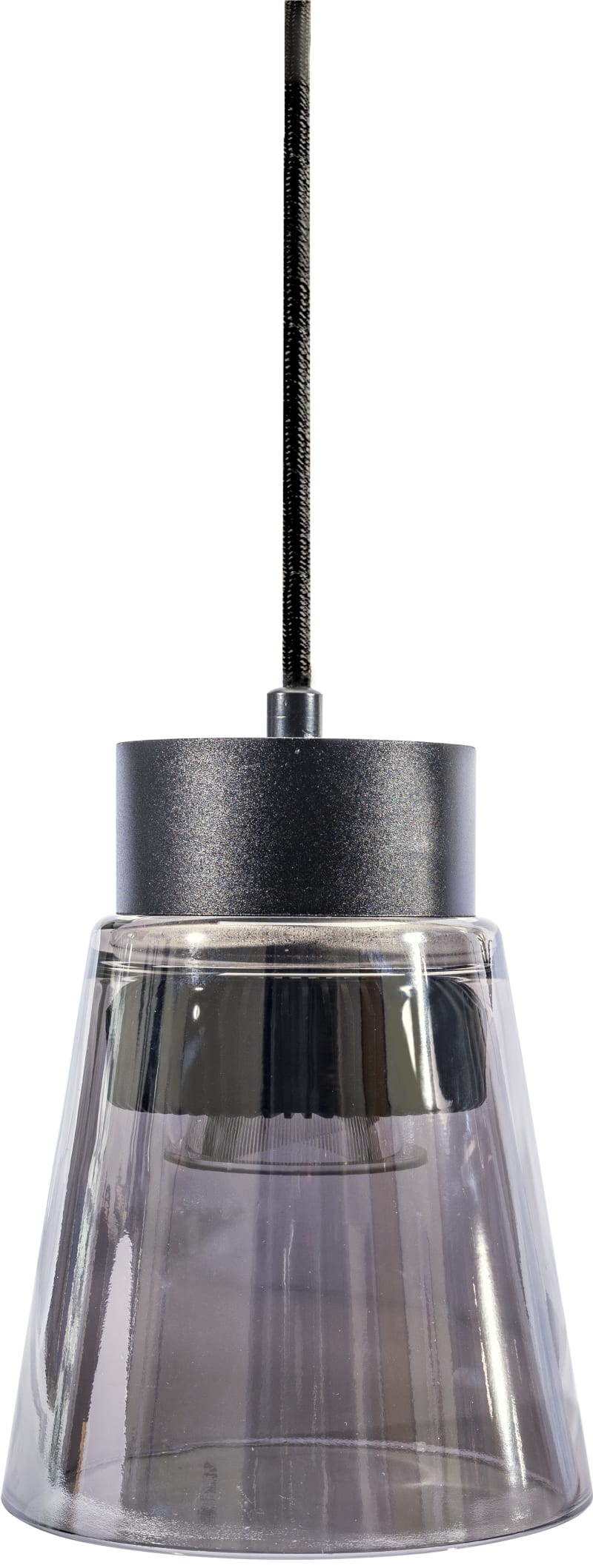

Unilamp Glone L Pendant 13 W 920 lm WarmDim, Black with Smoked Glass

Unilamp Glone L 3221581 is a 13 W LED pendant luminaire delivering 920 lm with WarmDim colour behaviour, in an aluminium body finished black with a smoked glass diffuser. The integrated non-exchangeable LED module drives a symmetric focal-lens distribution with SDCM3 colour consistency and a rated L70/B50 lifetime of 120,000 h at 25 °C. Dimming is by phase cut-on and phase cut-off (leading- and trailing-edge). Protection is IP20 and class II.

Manufacturer part number (MPN)

3221581

EAN / GTIN

7072125124247

HS code

8543.70

Sales unit

pcs

Package quantity

4 pcs

Power

13 W

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

No

Lamp type

LED not exchangeable

With light source

Yes

Suitable for number of light sources

1

Housing material

Aluminium

Housing colour

Black

Material cover

Glass transparent

Type of grid

None

Voltage type

AC

Type of control gear

LED operating device current-controlled

With control gear

Yes

Exchangeable control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming DALI-2

No

Dimming DMX

No

Dimming programmable

No

Dimming DSI

No

Dimming RF

No

Dimming potentiometer (integrated)

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

Yes

Dimming phase cut-on (leading edge)

Yes

Dimming Its Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

No dim function

No

Light distributor

Focal lens

Reflector

None

Light distribution

Symmetric

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct

Direct-/indirect proportion separately controllable

No

Rated lifetime L70/B50 at 25 °C

120000 h

Degree of protection (IP)

IP20

Protection class according to IEC 61140

II

Suitable for emergency lighting

No

Emergency power supply integrated

No

Filament test according to IEC 60695-2-11

None

Max. system power

13 W

Rated luminous flux according to IEC 62722-2-1

920 lm

Colour of light

White

Luminaire efficacy

70 lm/W

Colour rendering index CRI

90-100

Power factor

0.92

Constant light output (CLO)

No

Colour of light adjustable

Continuously variable

Luminous flux adjustable

Continuously variable

Beam angle adjustable

No

Height/depth

188 mm

Diameter

178 mm

With suspension

Yes

Type of wiring

Suitable for loop-through wiring

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Push-in clamp

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Country of origin

China

HS Code

8543.70
