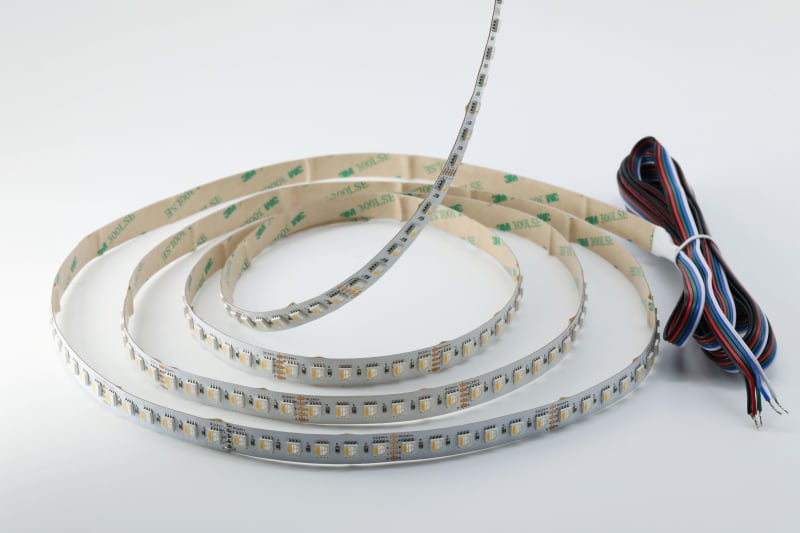

Unilamp MultiStrip RGBW LED Strip 20 W/m, 1150 lm/m, IP20, 5 m
Pricing
Request a quote
We reply within 24 hours
Product Description
Flexible self-adhesive LED strip with 96 RGBW nodes per metre delivering 20 W/m and 1150 lm/m at 120-degree beam angle, supplied as a continuous 5 m reel with a connection set. Colour of light is fully adjustable across RGB with an additional white channel and continuously variable output through a compatible DC current-controlled driver (not included). 12 mm wide, 2.9 mm high, cuttable in 65 mm segments, IP20, rated life 100000 h to L70/B50 at 25 degrees C. Typical applications include cove lighting, display and retail accents, and decorative architectural effects indoors.
Technical Specifications
- Manufacturer part number (MPN)
- 3204112
- EAN / GTIN
- 7072125125893
- Sales unit
- pcs
- Package quantity
- 25 pcs
- IP rating
- IP20
- Model
- Strip
- Mounting method
- Surface mounting/recessed mounting
- Lamp type
- LED not exchangeable
- Number of nodes per meter
- 96
- Lamp power per meter
- 20 W
- Luminous flux per meter
- 1150 lm
- Voltage type
- DC
- Beam angle
- 120 °
- Type of control gear
- LED operating device current-controlled
- Suitable for dimmer
- Yes
- Exchangeable control gear
- Yes
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- III
- Max. system power
- 100 W
- Colour of light
- RGBW
- Constant light output (CLO)
- No
- Colour rendering index CRI
- 80-89
- Colour of light adjustable
- Continuously variable
- Luminous flux adjustable
- Continuously variable
- Beam angle adjustable
- No
- Width
- 12 mm
- Height/depth
- 2.9 mm
- Length
- 5000 mm
- Length of particular segments
- 65 mm
- With end piece
- No
- With connection set
- Yes
- With protective cover
- No
- Self-adhesive
- Yes
- Type of wiring
- Ending
- Number of poles
- 5
- Conductor cross section
- 0.5 mm²
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.41
Cross References
- EAN 7072125125893
- SAP 1200938895
- Code 84227801
Product Documentation
