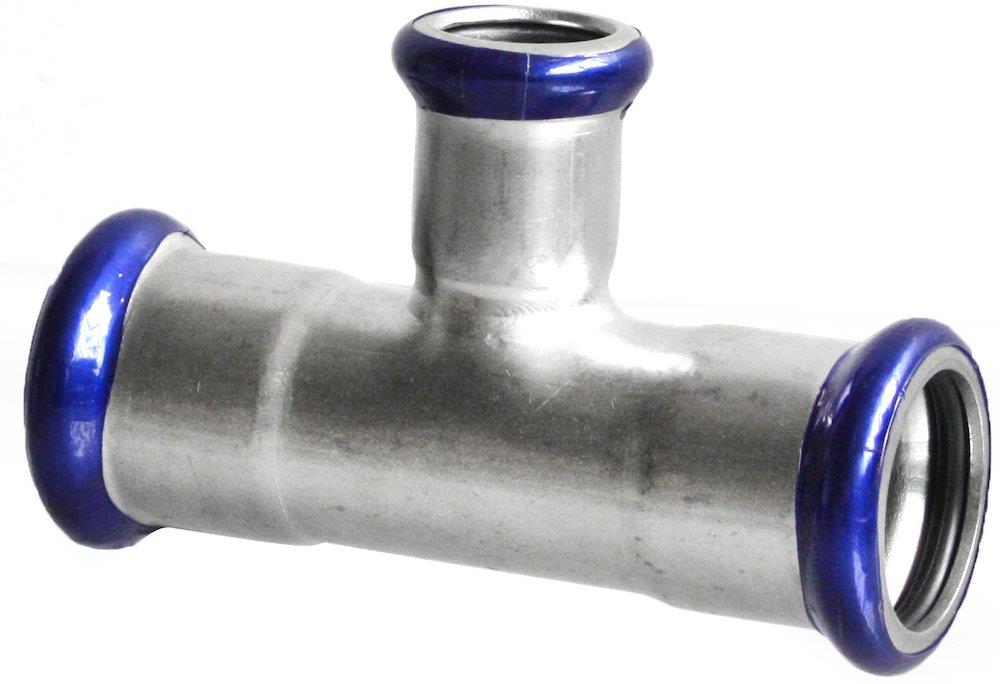

Unico SF Press T-Piece with reduced branch - 42mm, 42mm, 22mm, 3PCS

Unico SF Press T-Piece with reduced branch. T-pieces (Plumbing / Press fittings and pipes / Unico stainless/acid-resistant). Principal data: pipe dimension 1 42 mm, pipe dimension 2 42 mm, dimension on branch 22 mm, number of pressure sleeves 3 pcs. Supplied under manufacturer part number S41EH-LBP, HS code 7307.22, country of origin Italy.

Product type

T-pieces Product group: Press fittings and pipes Pipe dimension 1: 42 mm Pipe dimension 2: 42 mm Dimension on branch: 22 mm Number of pressure sleeves: 3 pcs material: Stainless/acid-resistant O ring: EPDM - leaks if not pressed Operating temperature: -20 to +85 °C Operating pressure max: 16 bar Temperature max: 120 °C Restriction: Not approved for gas Press end type: 3 sockets Press jaw: M-22 / M-42 (PR-3S) Jointing system: Press L dimension: 118 mm L1 dimension: 51 mm I dimension: 59 mm D dimension: 42 mm D1 dimension: 22 mm Z dimension: 27 mm Z1 dimension: 28 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.9340 kg CO2e per pcs Environmental declaration: EPD third-party verified Country of origin: Italy Customs tariff code (EU CN): 73072210 HS code: 7307.22 Manufacturer part number: S41EH-LBP VVS number: 034870414

HS Code

7307.22

• MPN S41EH-LBP
• VVS 034870414
