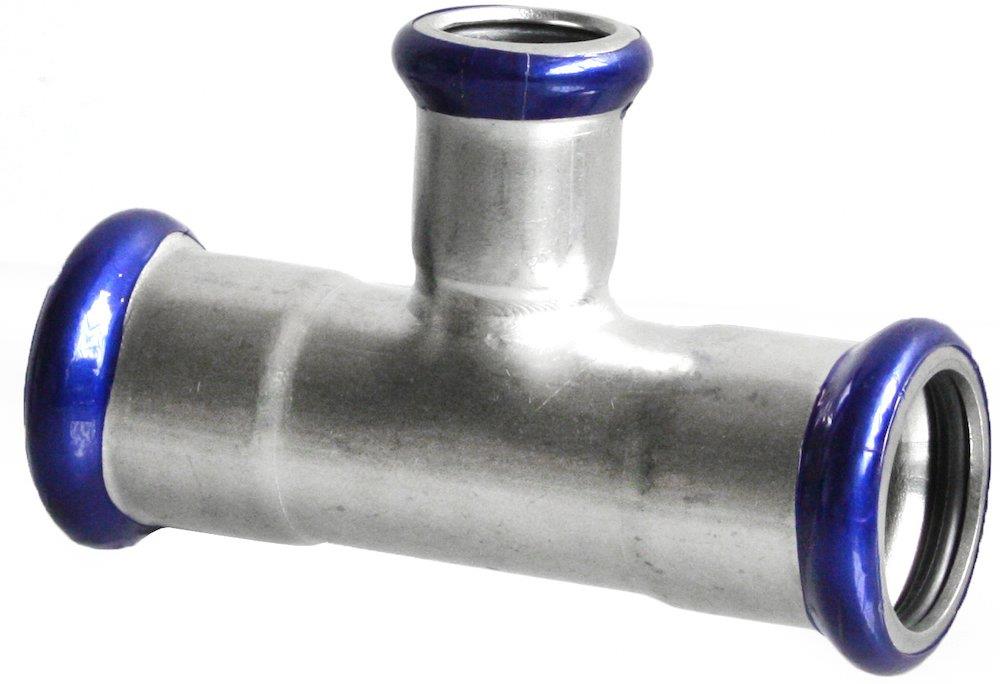

Unico SF Press T-Piece with reduced branch - 108mm, 108mm, 88.9mm, 3PCS
Pricing
Request a quote
We reply within 24 hours
Product Description
Unico SF Press T-Piece with reduced branch. T-pieces (Plumbing / Press fittings and pipes / Unico stainless/acid-resistant). Principal data: pipe dimension 1 108 mm, pipe dimension 2 108 mm, dimension on branch 88.9 mm, number of pressure sleeves 3 pcs. Supplied under manufacturer part number S41LM, HS code 7307.22, country of origin Italy.
Technical Specifications
- Product type
- T-pieces Product group: Press fittings and pipes Pipe dimension 1: 108 mm Pipe dimension 2: 108 mm Dimension on branch: 88.9 mm Number of pressure sleeves: 3 pcs material: Stainless/acid-resistant O ring: EPDM (black) - leaks if not pressed Operating temperature: -20 to +85 °C Operating pressure max: 16 bar Temperature max: 120 °C Restriction: Not approved for gas Press end type: 3 sockets Press jaw: M-88.9 XL (PR-3B) / M-108 XL (PR-3B) Jointing system: Press L dimension: 312 mm L1 dimension: 168 mm I dimension: 156 mm D dimension: 108 mm D1 dimension: 88.9 mm Z dimension: 79 mm Z1 dimension: 75 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 9.2530 kg CO2e per pcs Environmental declaration: EPD third-party verified Country of origin: Italy Customs tariff code (EU CN): 73072210 HS code: 7307.22 Manufacturer part number: S41LM VVS number: 034870679
Standards & Compliance
- HS Code
- 7307.22
Cross References
- MPN S41LM
- VVS 034870679
Product Documentation
