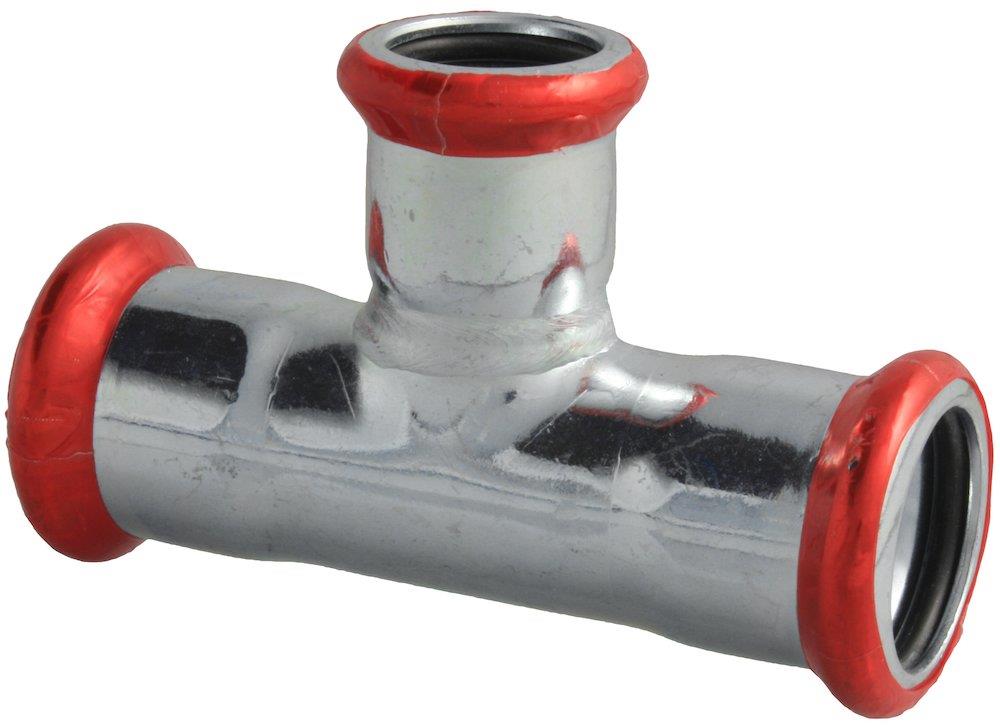

Unico FZ Press T-Piece with reduced branch - 22mm, 22mm, 18mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Unico FZ Press T-Piece with reduced branch. T-pieces (Plumbing / Press fittings and pipes / Unico FZ). Principal data: pipe dimension 1 22 mm, pipe dimension 2 22 mm, dimension on branch 18 mm. Supplied under manufacturer part number C41DE-LBP, EAN 5707234132600, HS code 7307.22, country of origin Italy.
Technical Specifications
- Product type
- T-pieces
- Product group
- Press fittings and pipes
- Pipe dimension 1
- 22 mm
- Pipe dimension 2
- 22 mm
- Dimension on branch
- 18 mm
- Number of pressure sleeves
- 3 pcs
- Operating pressure max
- 16 bar
- Temperature max
- 120 °C
- Operating temperature
- -20 to +85 °C
- O ring
- EPDM (black) - leaks if not pressed
- Press end type
- 3 sockets
- Surface
- Galvanised
- Press jaw
- M-18 / M-22
- Jointing system
- Press
- L dimension
- 82 mm
- L1 dimension
- 40 mm
- I dimension
- 41 mm
- D dimension
- 22 mm
- D1 dimension
- 18 mm
- Z dimension
- 18 mm
- Z1 dimension
- 19 mm
- REACH SVHC substance above 0.1%
- None
- Sales unit
- Pack
- Carbon footprint (EPD)
- 1.3900 kg CO2e per pcs
- Environmental declaration
- EPD third-party verified
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 73072210
- HS code
- 7307.22
- Manufacturer part number
- C41DE-LBP
- GTIN (EAN)
- 5707234132600
- VVS number
- 034920272
Standards & Compliance
- HS Code
- 7307.22
Cross References
- MPN C41DE-LBP
- EAN 5707234132600
- VVS 034920272
