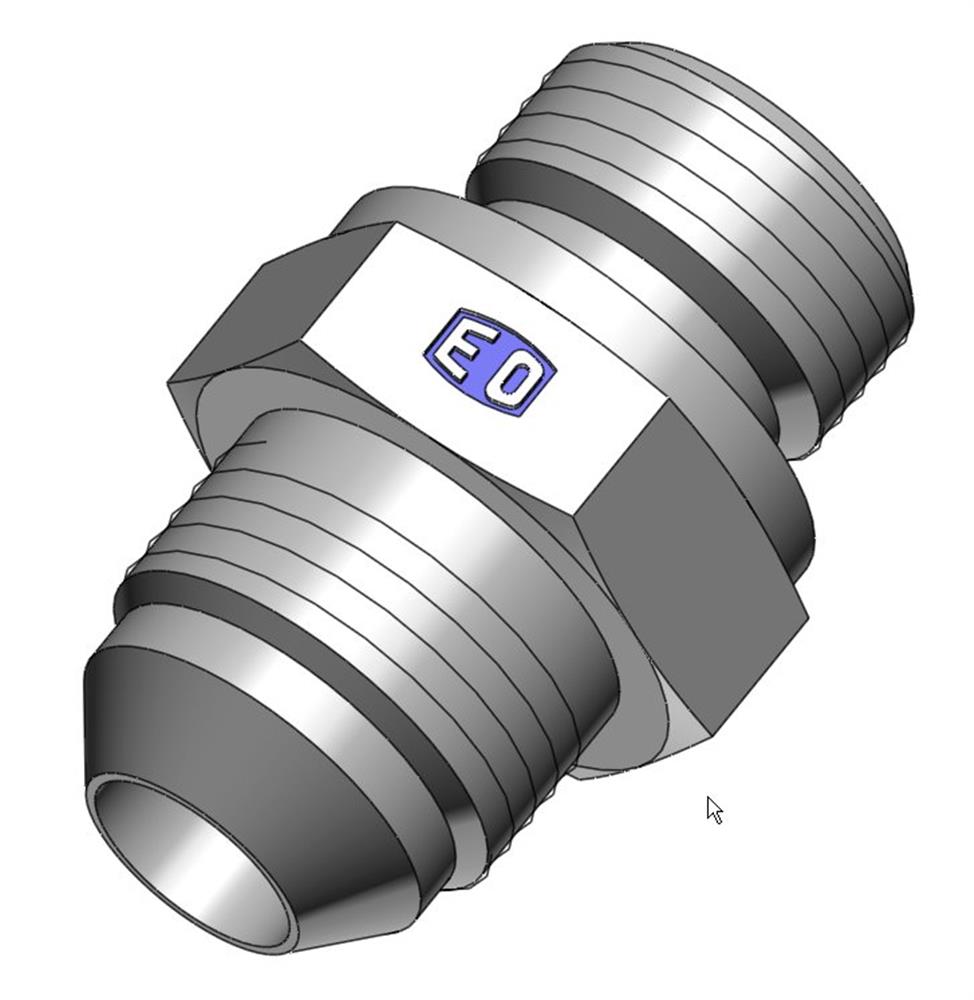

Triple-Lok F82EDMXS Straight Insertion steel chromated JIC/Metric - 16mm, M22X1.5, 350bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Triple-Lok F82EDMXS Straight Insertion steel chromated JIC/Metric. Extraction, pipe/thread, straight (Technique / Hydraulics / Extraction fittings). Principal data: pipe dimension 16 mm, threaded screw M22x1.5, working pressure 350 bar. Supplied under manufacturer part number 10M22F82EDMXS, HS code 7307.99, country of origin Poland.
Technical Specifications
- Product type
- Extraction, pipe/thread, straight
- Product group
- Hydraulics
- Pipe dimension
- 16 mm
- Threaded screw
- M22x1.5
- Working pressure
- 350 bar
- Threaded pipe end
- 7/8"x14 UNF
- Gasket
- NBR
- Approval
- DNV, Bureau Veritas, Lloyd's, DVGW and others
- Safety factor
- 4.1
- Wrench width
- 27 mm
- Length
- 45 mm
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.5003 kg CO2e per pcs
- Country of origin
- Poland
- Customs tariff code (EU CN)
- 73079910
- HS code
- 7307.99
- Manufacturer part number
- 10M22F82EDMXS
Standards & Compliance
- HS Code
- 7307.99
Cross References
- MPN 10M22F82EDMXS
More from Parker Hannifin
Parker Hannifin
Triple-Lok F42EDMXS Straight Insertion steel chromated JIC/BSP - 1 1/2, 38mm, 210bar
24F42EDMXS
Parker Hannifin
Triple-Lok FNMTXS End Socket steel chromated - 8mm, 420bar
5FNMTXS
Parker Hannifin
Triple-Lok WMTX Straight Connector bulkhead steel chromated JIC - 12mm, 12mm, 420bar
8WMTXWLNMS
Parker Hannifin
Triple-Lok TRTXS Reduction Nipple steel chromated - 38mm, 20mm, 210bar
24-12TRTXS
Parker Hannifin
Triple-Lok HMTXS Straight Connector steel chromated JIC - 38mm, 38mm, 210bar
24HMTXS
Parker Hannifin
Triple-Lok F42EDMXS Straight Insertion steel chromated JIC/BSP - 3/4, 25mm, 280bar
16-12F42EDMXS
Parker Hannifin
Triple-Lok F642EDMXS Straight Insertion adjustable steel chromated JIC/BSP - 3/4, 25mm
16-12F642EDMXS
Parker Hannifin
Triple-Lok F642EDMXS Straight Insertion adjustable steel chromated JIC/BSP - 3/8, 12mm
8F642EDMXS
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 10M22F82EDMXS?
- 10M22F82EDMXS can be ordered from cballast.com as a Parker Hannifin catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Parker Hannifin product?
- The manufacturer part number is 10M22F82EDMXS.
- What is the HS code for 10M22F82EDMXS?
- The customs tariff (HS) code for 10M22F82EDMXS is 7307.99.
- Who manufactures 10M22F82EDMXS?
- 10M22F82EDMXS is a Parker Hannifin product in the Hydraulics range.
- Is a datasheet available for 10M22F82EDMXS?
- Yes — the 10M22F82EDMXS datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 10M22F82EDMXS?
- The minimum order quantity is 1.
- Is 10M22F82EDMXS available?
- Yes — 10M22F82EDMXS is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
