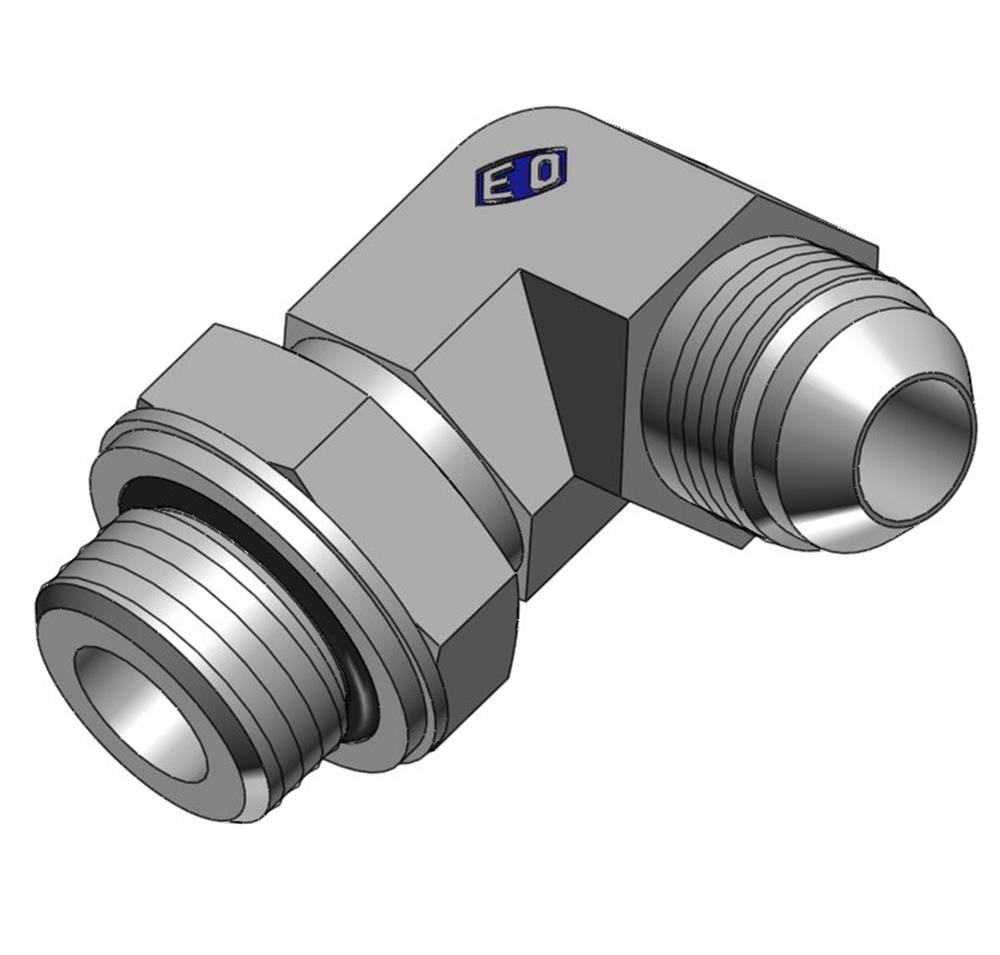

Triple-Lok C40MX Angle Insertion adjustable steel chromated JIC/BSP - 3/4, 12mm, 90°, 250bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Triple-Lok C40MX Angle Insertion adjustable steel chromated JIC/BSP. Extraction, pipe/thread, angle (Technique / Hydraulics / Extraction fittings). Principal data: thread 3/4, pipe dimension 12 mm, angle 90°, working pressure 250 bar. Supplied under manufacturer part number 8-12C4OMXS, HS code 7307.99, country of origin Germany.
Technical Specifications
- Product type
- Extraction, pipe/thread, angle Product group: Hydraulics Thread: 3/4 Pipe dimension: 12 mm Angle: 90° Working pressure: 250 bar Threaded screw: 3/4 Threaded pipe end: 3/4"x16 UNF Safety factor: 4:1 Approval: DNV, Bureau Veritas, Lloyd's, DVGW and others Gasket: NBR Sales unit: Pack Carbon footprint (EPD): 0.3109 kg CO2e per pcs Country of origin: Germany Customs tariff code (EU CN): 73079910 HS code: 7307.99 Manufacturer part number: 8-12C4OMXS
Standards & Compliance
- HS Code
- 7307.99
Cross References
- MPN 8-12C4OMXS
