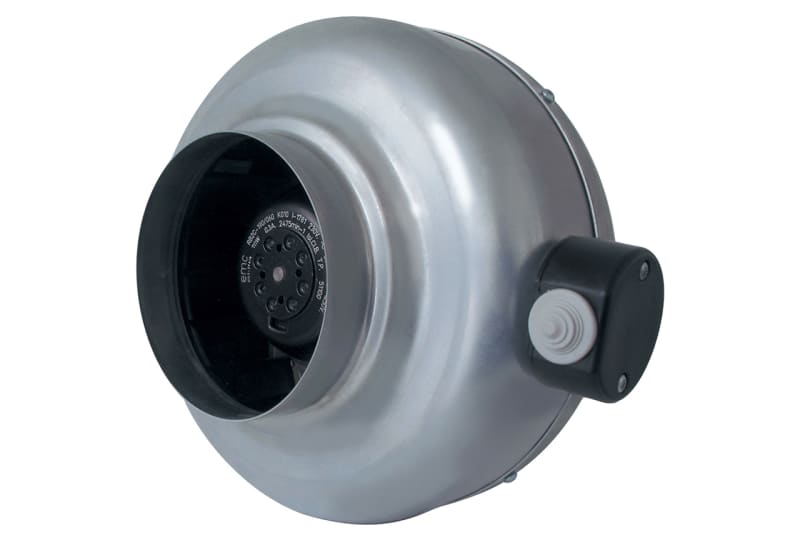

Duct Fan VENT200 NK (225.34.2201.2)
Pricing
Request a quote
We reply within 24 hours
Product Description
Thermex Scandinavia As 225.34.2201.2 Kanalventilator VENT 200NK, 230V, 50-60 Hz, 147 W incl. bracket and junction box. 970 m³/h el. 750 m³/h at 200 Pa.
Technical Specifications
- Manufacturer part number (MPN)
- 225.34.2201.2
- EAN / GTIN
- 8413893787361
- Sales unit
- pcs
- Housing material
- Steel-treated
- Air volume, unloaded
- 971.942 m³/h
- Air volume at pressure 2
- 691.261 m³/h
- Air volume at pressure 3
- 180.9 m³/h
- Pressure 2
- 250 Pa
- Pressure 3
- 525 Pa
- Connection voltage
- 230 V
- Power consumption
- 0.147 kW
- With thermal overload protection
- No
- Direct-current motor
- No
- Indirect drive
- No
- Electrical connection
- Terminals
- Degree of protection (IP)
- IP44
- Max. air temperature
- 60 °C
- 2-speed motor
- No
- Suitable for electronic control
- No
- Suitable for frequency control
- No
- Suitable for low-current control
- Yes
- Suitable for transformer control
- Yes
- Pole-reversible
- No
- Diameter housing
- 333 mm
- Duct diameter
- 198 mm
- Connection
- Insert end
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 7307.99
Cross References
- EAN 8413893787361
- SAP 1200413395
- Code 82437061
