Theben

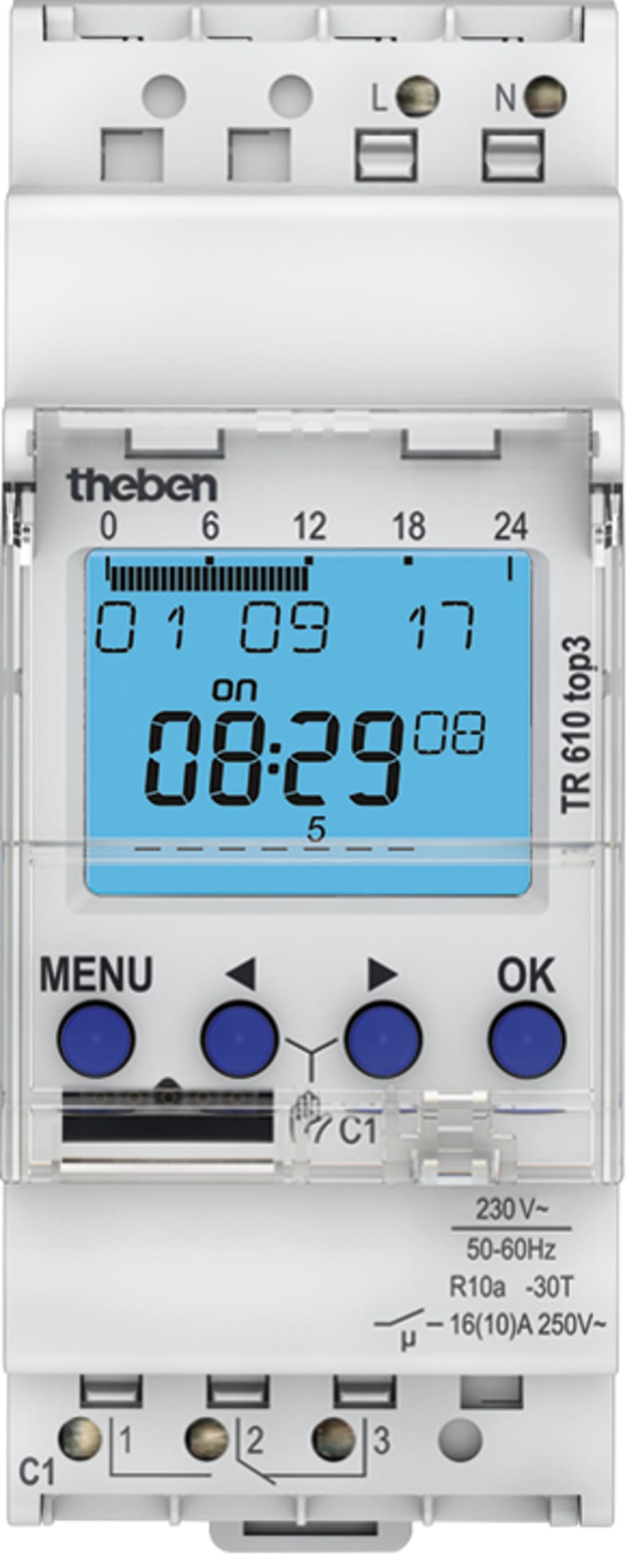

Dig.Weekly timer 1-CHANNEL TR610TOP3 230V
Part numberTR610 TOP3EAN / GTIN4003468610299HS code9107.00
Control & Automation
Timer Relays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Theben TR610 TOP3 1-channel weekly timer 16A 600W LED.
Technical Specifications
- Manufacturer part number (MPN)
- TR610 TOP3
- EAN / GTIN
- 4003468610299
- Sales unit
- pcs
- Voltage
- 230 V
- Mounting method
- DIN rail
- Number of channels
- 1
- Supply voltage
- 230 V
- Voltage type (supply voltage)
- AC
- Frequency supply voltage
- 50–60 Hz
- Autonomy in years
- 10
- Accuracy per day
- 0.25 s
- Text guidance in display
- Yes
- External programming
- Yes
- With memory card
- No
- 60 min program
- Yes
- 24 h program
- Yes
- Weekly program
- Yes
- Annual program
- No
- Holiday program
- Yes
- Impulse program
- No
- Cycle program
- No
- Astro program
- No
- Random program
- No
- Hour meter
- Yes
- Mains synchronous
- No
- Quartz controlled
- Yes
- Radio-controlled
- No
- GPS (global positioning system)
- No
- Contact type
- Change-over contact (NO/NC)
- Number of contacts
- 1
- Shortest switching time channel 1
- 1 min
- Number of memory locations
- 56
- Automatic switching summer/winter time
- Yes
- Suitable for manual operation
- Yes
- External push button input
- No
- Switching preselection
- Yes
- Nominal switching current at 250 V AC
- 16 A
- Max. switching power LED
- 600 W
- Potential free switch contact
- Yes
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 2
- Width
- 35 mm
- Height
- 90 mm
- Depth
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9107.00
Cross References
- EAN 4003468610299
- SAP 1200045497
- Code 81889298
Product Documentation
Document preview: Dig.Weekly timer 1-CHANNEL TR610TOP3 230V (TR610 TOP3) — Specification sheet
