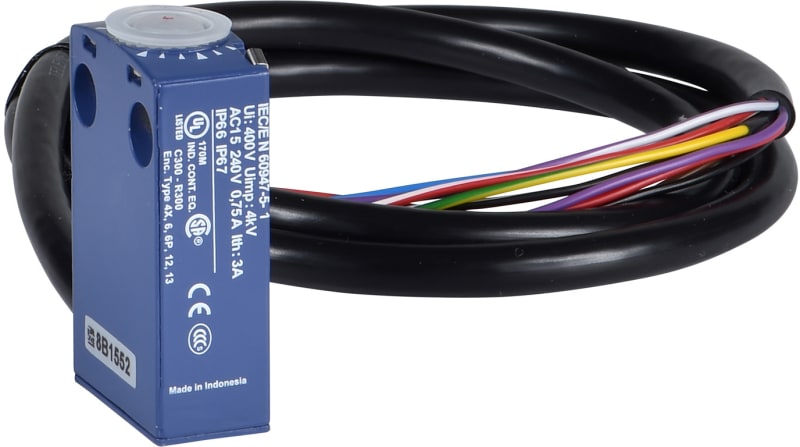

Telemecanique ZCMD41L1 Limit Switch Body, Metal, 2NC/2NO, Snap-action, 1 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCMD41L1 limit switch body (contact block), metal housing, 2NC/2NO snap-action contacts, 1 m cable; combines with ZCK/ZC2 operating heads to form a complete limit switch.
Technical Specifications
- Manufacturer part number (MPN)
- ZCMD41L1
- EAN / GTIN
- 3666916042519
- Sales unit
- pcs
- Package quantity
- 75 pcs
- Contact configuration
- 2 NC / 2 NO
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- With cable preassembled
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66
- Forced opening
- Yes
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 52 mm
- Length of sensor
- 16 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 2
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916042519
- SAP 1000259956
- Code 8238992
