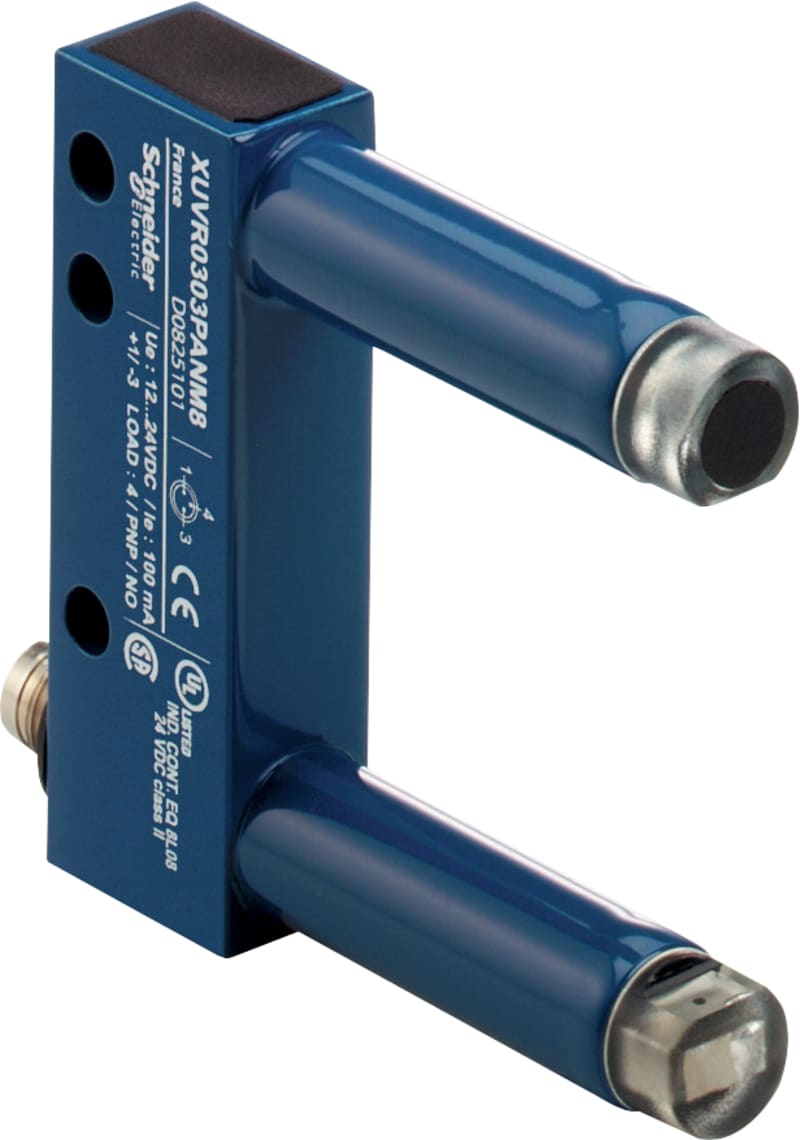

Telemecanique XUVR0303PANL2 Fork Photoelectric Sensor 30 × 30 mm, PNP NO, 2 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUVR0303PANL2 fork (slot) photoelectric sensor, 30 × 30 mm opening, PNP NO output, 2 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XUVR0303PANL2
- EAN / GTIN
- 3666916032190
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Output type
- PNP
- Contact configuration
- NO
- Min. object size
- 10 mm
- Fork depth
- 30 mm
- Fork width
- 30 mm
- Rated switching distance
- 30 mm
- Max. switching distance
- 30 mm
- Max. output current
- 100 mA
- With time function
- No
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Type of electric connection
- Cable radial
- Type of switching output
- PNP/PNP
- Type of switch function
- Normally open contact (NO)
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Special construction
- Width sensor
- 30 mm
- Diameter sensor
- 12 mm
- Sensing mode
- Light switching
- Material of optical surface
- Glass
- Housing material
- Metal
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0 mm
- Response time
- 0.1 ms
- Switching frequency
- 4000 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Pre failure notice
- No
- Laser protection class
- None
- Type of light
- Laser diode, red light
- With restart blockage
- No
- Degree of protection (IP)
- IP65
- Suitable for safety functions
- No
- Ambient temperature
- -10–60 °C
- Rated control supply voltage DC
- 12–24 V
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916032190
- SAP 1000341388
- Code 8975731
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUYPS1LCO965S Laser Photoelectric Sensor, Background Suppression, Sn 300 mm
Telemecanique
Telemecanique XCSM safety limit switch, metal Zamak body, rotary head with steel roller lever, snap-action contacts, 2 NC + 1 NO with positive opening, 1 m pre-wired cable, IP68 XCSM3916L1
Telemecanique
Telemecanique XCSD safety limit switch, metal body, rotary lever with steel roller, 2 NC + 1 NO with positive opening, M20 x 1.5 cable entry, IP67K XCSD3919P20
Telemecanique
Schneider Electric red light block with body/fixing collar with integral LED 12...24V ZB6EB4B
Telemecanique

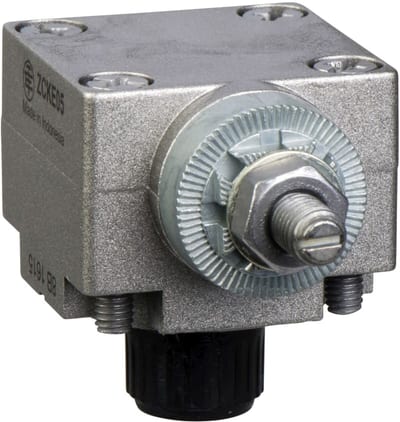

Telemecanique ZCKE056 Operating Head for ZCK Limit Switches
Telemecanique
Telemecanique XZCE03P124M Bulkhead Feed-Through Connector, M12 Male, 4-pin, M20 × 1.5 bulkhead thread
Telemecanique

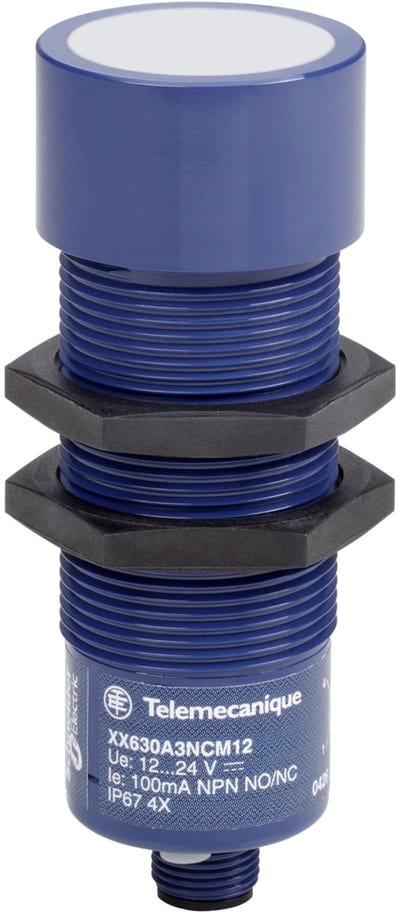

Telemecanique XX630A1NCM12 Ultrasonic Sensor, Sn 50 m, NPN, M12 connector
