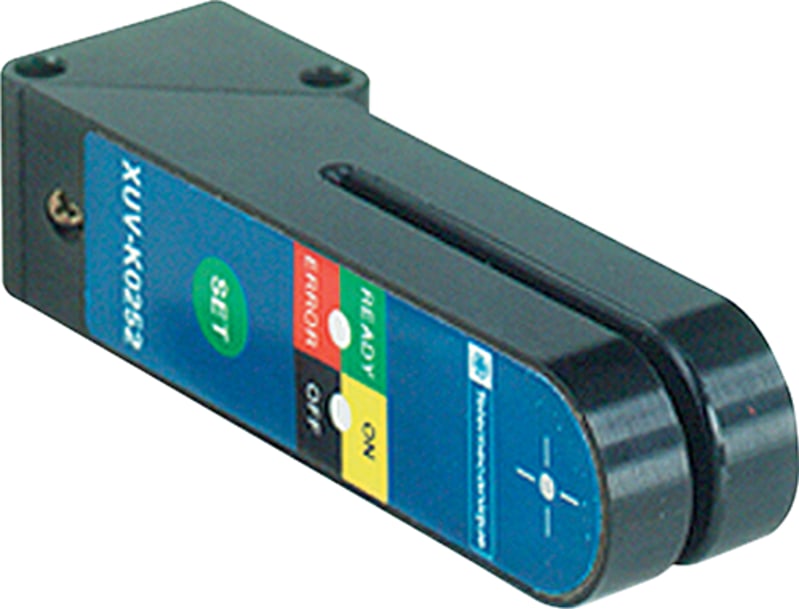

Telemecanique XUVK0252S Fork Photoelectric Sensor Infrared for Labels

Telemecanique XUVK0252S fork-type infrared photoelectric sensor for label detection, with 50 mm fork depth and 2 mm sensing range. PNP/NPN transistor output up to 100 mA, teach-in setup and M8 connector; dark-switching mode with two signalling outputs. Housing 20 x 20 x 90 mm.

Manufacturer part number (MPN)

XUVK0252S

EAN / GTIN

3666916032046

Sales unit

pcs

Package quantity

45 pcs

Min. object size

2 mm

Fork depth

50 mm

Fork width

2 mm

Rated switching distance

2 mm

Max. switching distance

2 mm

Max. output current

100 mA

With time function

No

With reflector

No

Analogue output 0 V ... 10 V

No

Analogue output 0 mA ... 20 mA

No

Analogue output 4 mA ... 20 mA

No

Analogue output -10 V ... +10 V

No

With other analogue output

No

Setting procedure

Teach-In

With communication interface analogue

No

With communication interface AS-Interface

No

With communication interface CANOpen

No

With communication interface DeviceNet

No

With communication interface Ethernet

No

With communication interface INTERBUS

No

With communication interface PROFIBUS

No

With communication interface RS-232

No

With communication interface RS-422

No

With communication interface RS-485

No

With communication interface SSD

No

With communication interface SSI

No

Number of semiconductor outputs with signalling function

2

Number of protected semiconductor outputs

2

Type of electric connection

Connector M8

Type of switching output

PNP/NPN

Type of switch function

Programmable/configurable

Operation agent-safety class

Safety class 0

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Special construction

Width sensor

20 mm

Height of sensor

20 mm

Length of sensor

90 mm

Sensing mode

Dark switching

Material of optical surface

Glass

Housing material

Metal

Max. output current at protected output

100 mA

Min. reflector distance

0 mm

Response time

0.1 ms

Switching frequency

25000 Hz

Type of safety according to IEC 61496-1

1

Voltage type

AC/DC

With monitoring function downstream switching devices

No

Pre failure notice

No

Laser protection class

None

Type of light

Infrared light

With restart blockage

No

Degree of protection (IP)

IP65

Suitable for safety functions

No

Ambient temperature

0–55 °C

Rated control supply voltage DC

12–24 V

Country of origin

Hungary

HS Code

8536.50

• EAN 3666916032046
• SAP 1000341245
• Code 8991486
