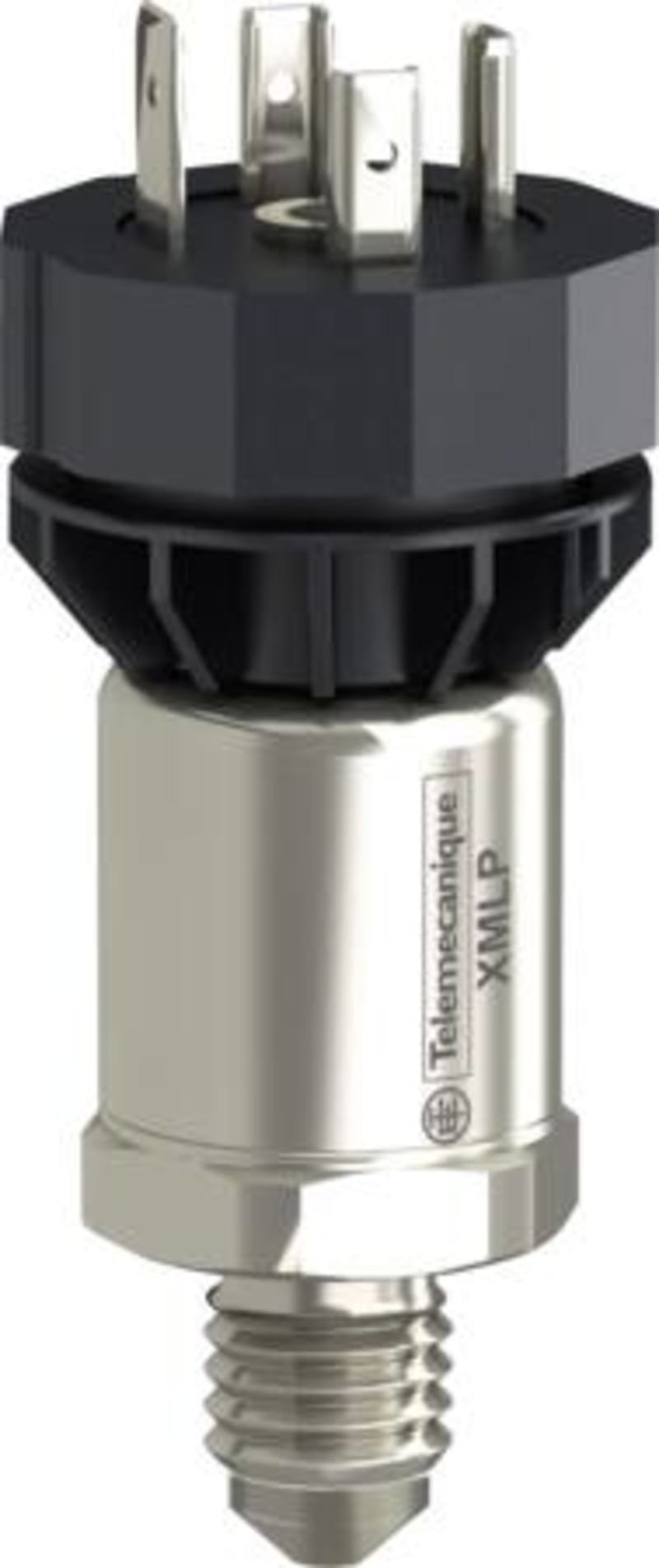

Telemecanique XMLP040BC270 Pressure Transmitter, 0–40 bar, 0.5–4.5 V ratiometric, 7/16"-20 UNF female, DIN connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XMLP040BC270 OsiSense XMLP pressure transmitter, range 0–40 bar, 0.5–4.5 V ratiometric output, 7/16"-20 UNF female process connection, DIN connector.
Technical Specifications
- Manufacturer part number (MPN)
- XMLP040BC270 EAN / GTIN: 3666916022924 Sales unit: pcs Output signal: 4–20 mA Process connection: 7/16 in male Depth: 58.5 mm With display: No Diameter: 26 mm With manual on/off switch: No Initial setting: 0–40000 hPa End setting: 0–40000 hPa Max. operation pressure: 40000 hPa Explosion-proof: No Degree of protection (IP): IP65/IP67 Switch off pressure: 0–40 bar Rated voltage Ue at DC: 12–24 V Bursting pressure: 120 bar Engaging pressure: 0–40 bar Electronic version: Yes End value measuring range pressure: 4000000 Pa Suitable as 2-point controller: No Suitable as limiter: No Suitable as guard: Yes Max. test pressure: 80 bar Medium temperature: -20–120 °C With hand operation: No Max. operating pressure: 40000 hPa Country of origin: Switzerland
Standards & Compliance
- HS Code
- 9026.20
Cross References
- EAN 3666916022924
- SAP 1200045317
- Code 81877334
