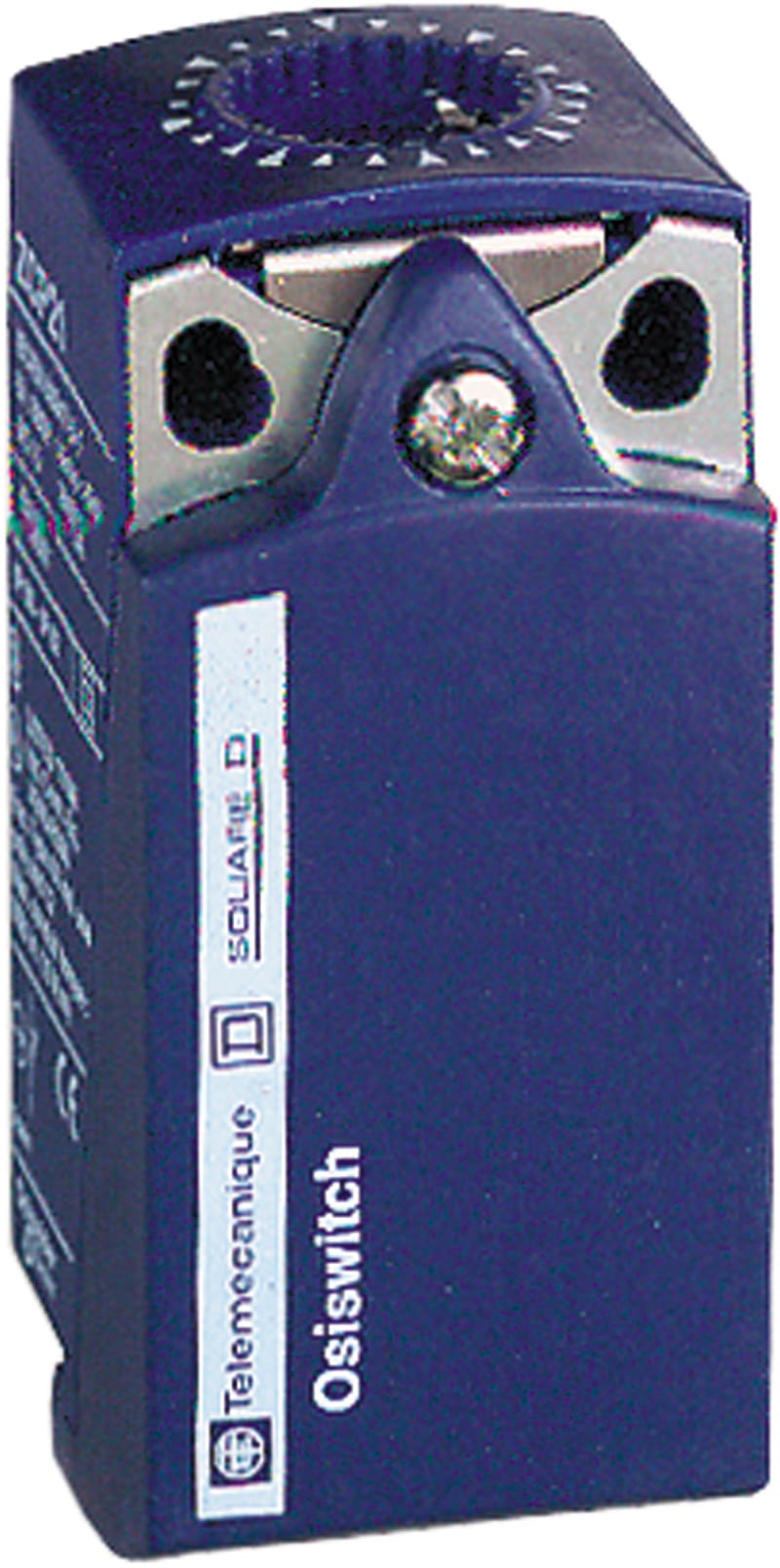

Telemecanique ZCP28 Limit Switch Body, Plastic
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCP28 plastic limit switch body (contact body) for the ZCP compact programme, combine with a ZCE operating head.
Technical Specifications
- Manufacturer part number (MPN)
- ZCP28
- EAN / GTIN
- 3666916042786
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 81 pcs
- Contact configuration
- NO / NO
- Switching function
- Slow-action switch with overlapping
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- No
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 31 mm
- Height of sensor
- 65 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally open contact
- 2
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916042786
- SAP 1000254433
- Code 81142987
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCC8FDM40V Field-Wireable Connector, M8, Female, Straight, 4-pin, Metal
Telemecanique
Telemecanique XXZKITDM6 Ultrasonic Sensor, M12 connector
Telemecanique

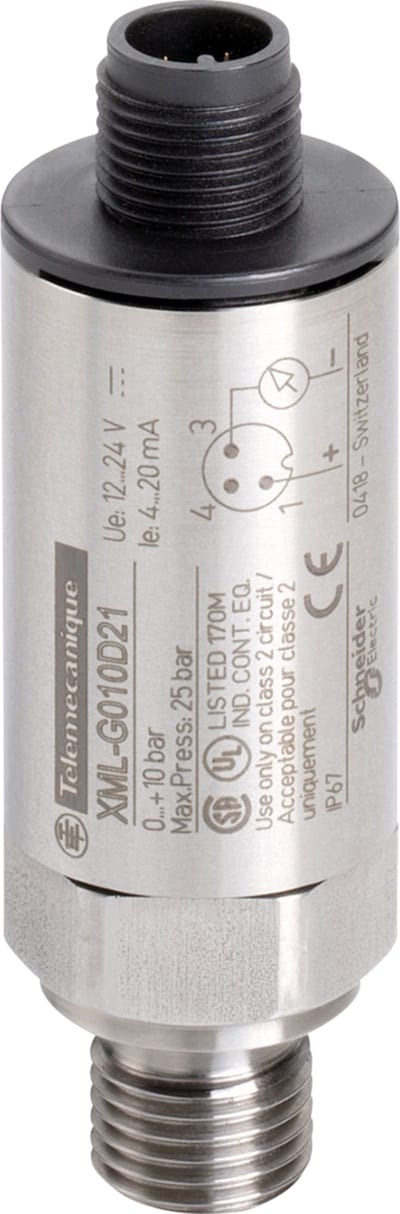

Telemecanique XMLG010D71 Pressure Transmitter, 0–10 bar, 0–10 V
Telemecanique

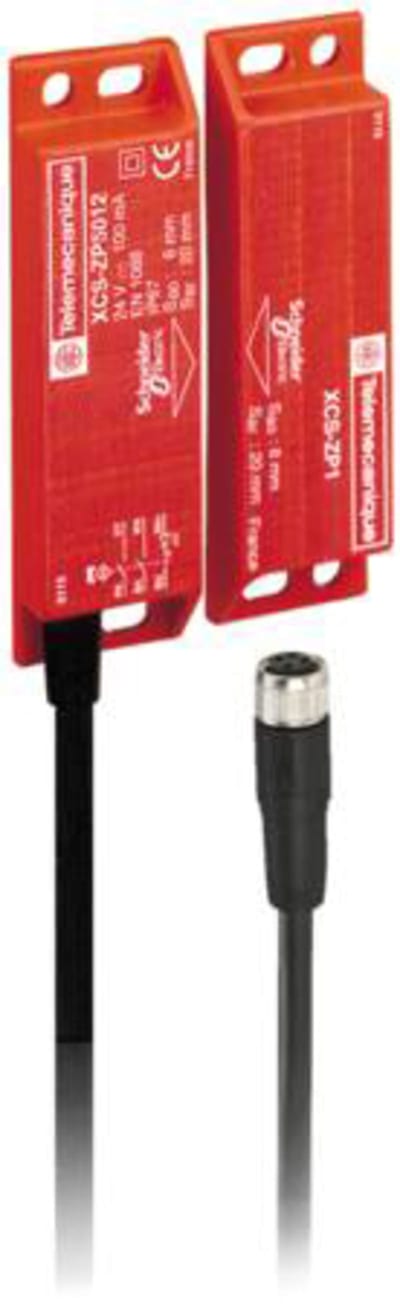

Telemecanique XCSDMP591L01M12 Coded Magnetic Safety Switch, 1NC1NO, LED, M12 connector
Telemecanique

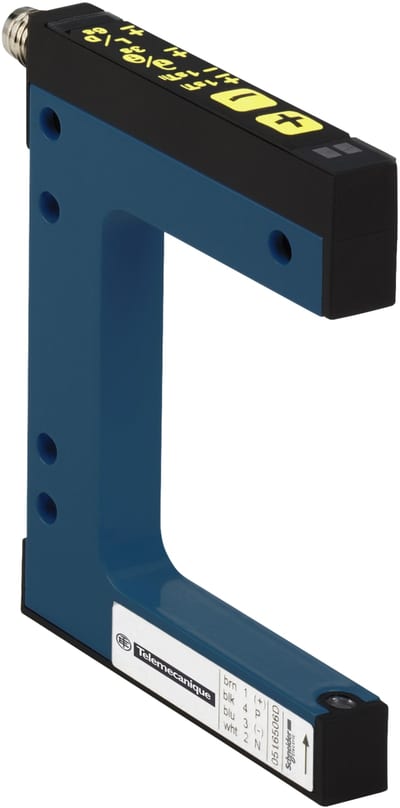

Telemecanique XUYFANEP60005 Infrared Fork Sensor 59 × 5 mm, Teach-In, M8 Connector
Telemecanique

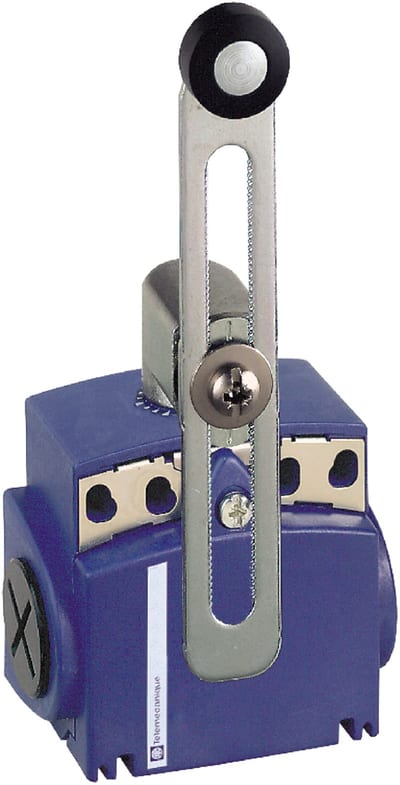

Telemecanique XCKT2145P16 Limit Switch, M16 entry
Telemecanique
Telemecanique XZCP53P11L2 Sensor Cable, M12 female, 8-pin, 2 m
Telemecanique

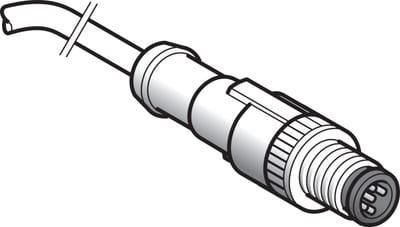

Telemecanique XZCPV1564L5 Sensor Cable, M12 male, 5-pin, PVC, 5 m
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZCP28?
- ZCP28 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZCP28.
- What is the HS code for ZCP28?
- The customs tariff (HS) code for ZCP28 is 8536.90.
- Who manufactures ZCP28?
- ZCP28 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for ZCP28?
- Yes — the ZCP28 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZCP28?
- The minimum order quantity is 1.
- Is ZCP28 available?
- Yes — ZCP28 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
