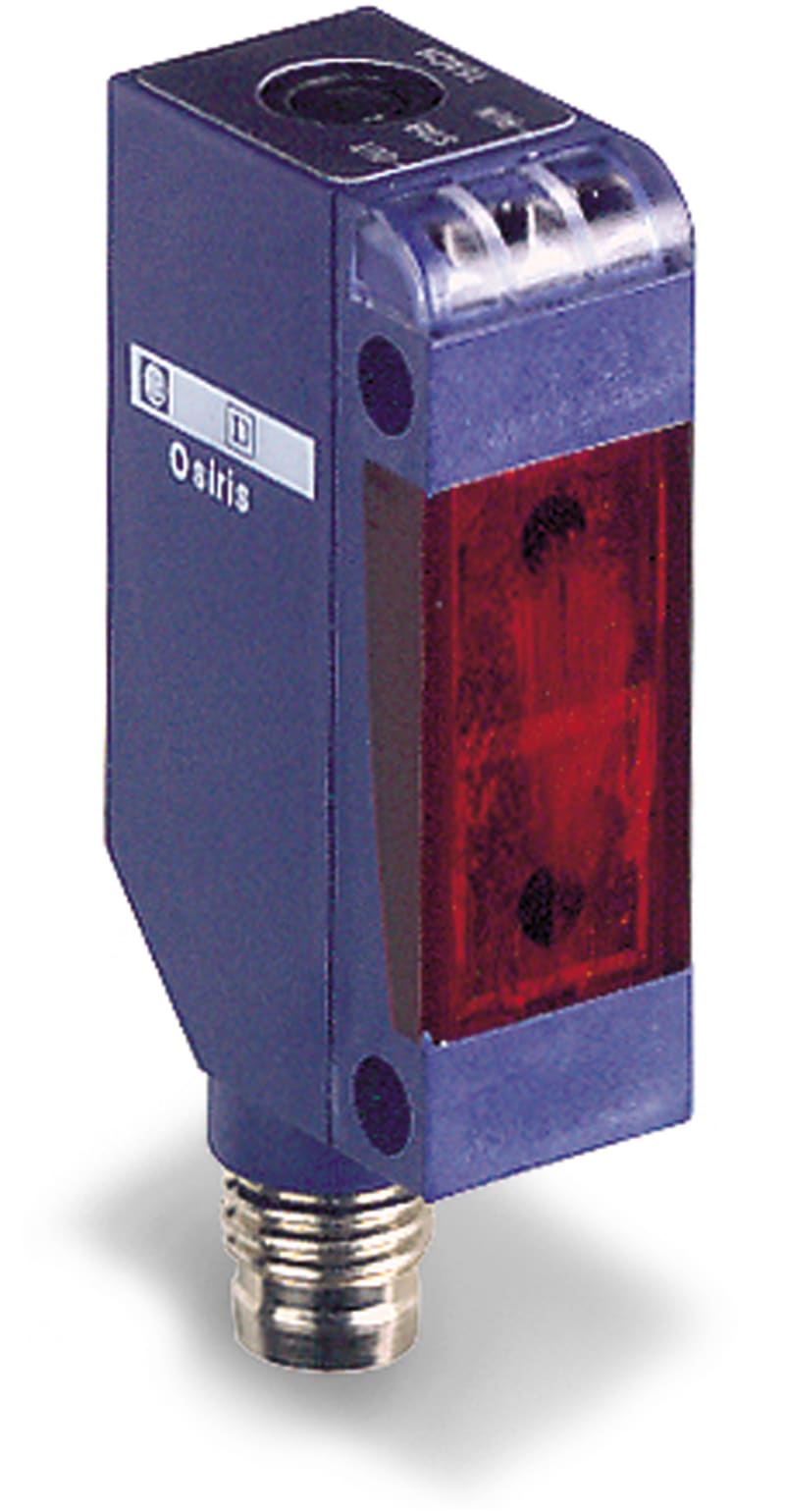

Telemecanique XUM0AKSAM8T Photoelectric Sensor, Photoelectric, M8 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUM0AKSAM8T XUM miniature photoelectric sensor, photoelectric, M8 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUM0AKSAM8T
- EAN / GTIN
- 3666916033555
- Sales unit
- pcs
- Package quantity
- 44 pcs
- Thread size
- M8
- Scope of delivery of the one-way system
- Transmitter
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 10000 mm
- Max. switching distance
- 14000 mm
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Teach-In
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Type of electric connection
- Connector M8
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Special construction
- Width sensor
- 12 mm
- Height of sensor
- 45 mm
- Length of sensor
- 20 mm
- Sensing mode
- Dark switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 5000 mm
- Ambient temperature
- -25–55 °C
- Response time
- 2 ms
- Switching frequency
- 250 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Infrared light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP65
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916033555
- SAP 1000046924
- Code 8836739
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS518B1NAM12 Inductive Proximity Sensor — M18 barrel, Sn 5 mm, NPN, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique XMLP040BC11F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, DIN connector
Telemecanique

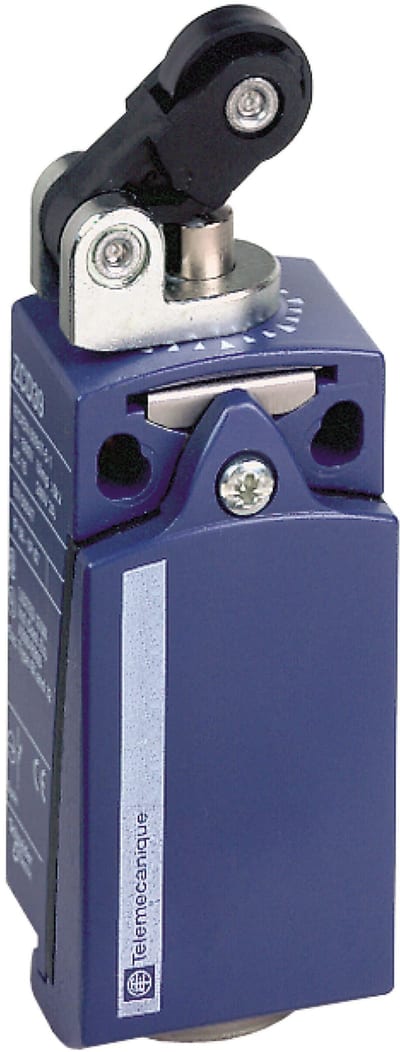

Telemecanique XCKD2121P16 Limit Switch, Roller Lever Arm, Plastic Body, 1 NO + 1 NC, M16 entry
Telemecanique

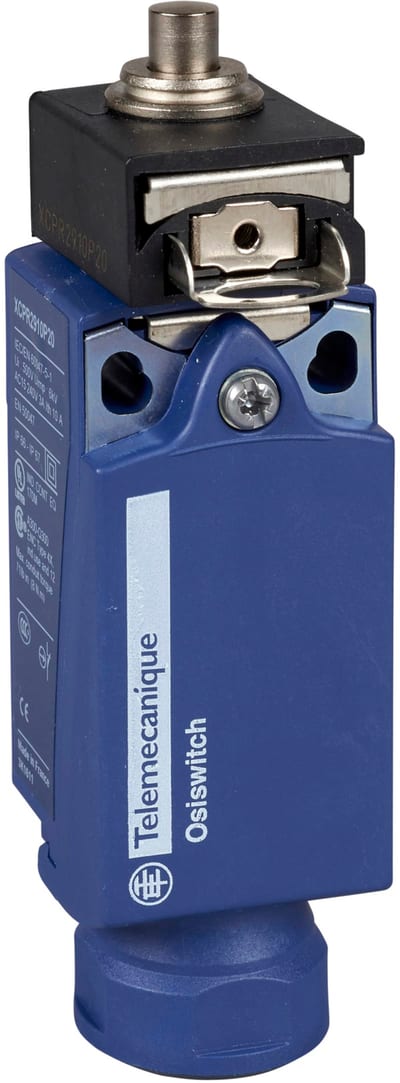

Telemecanique XCPR2110G13 Limit Switch, Metal Plunger, PG13 entry
Telemecanique

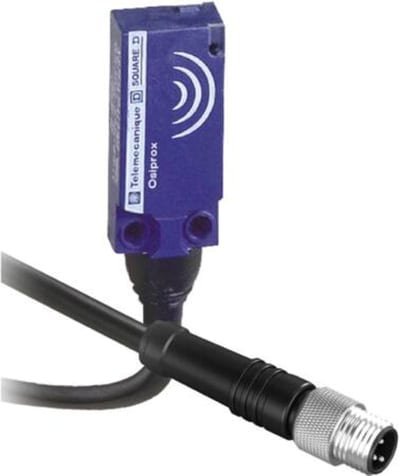

Telemecanique OsiSense XS7F1A1PAL01M8 Inductive Proximity Sensor — 15 × 32 mm block, Sn 10 mm, PNP, NO, M8 connector
Telemecanique

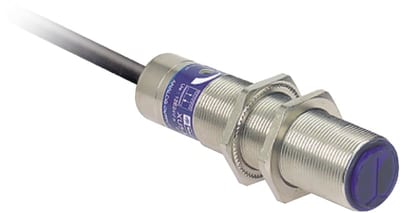

Photocell Ø18mm DIREKTEXU5M1 (XU5M18MA230)
Telemecanique

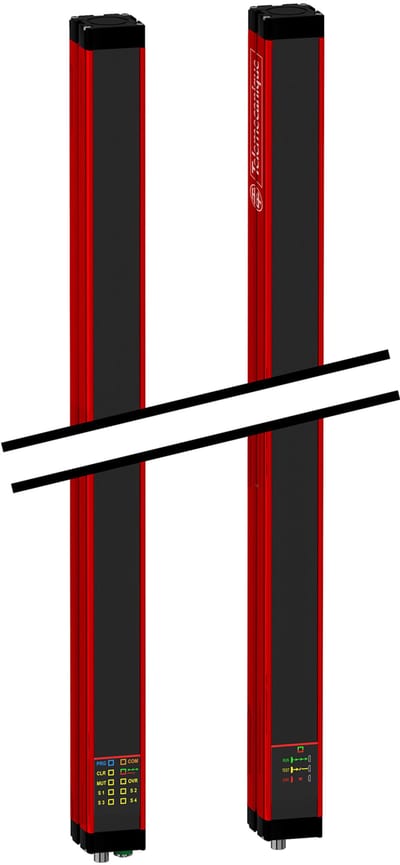

Telemecanique XUSL4MB3BB081N Type 4 Safety Light Grille with Integrated Muting
Telemecanique

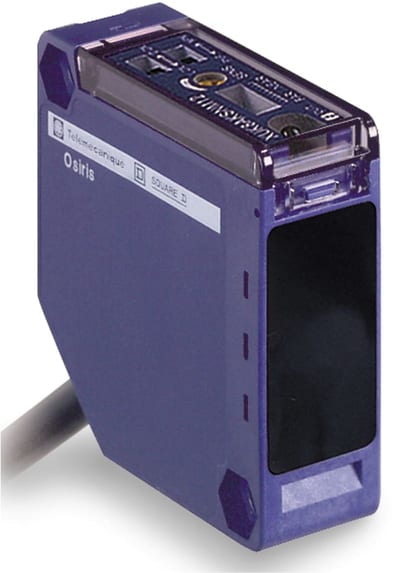

Telemecanique XUK8AKSNL2 Photoelectric Sensor, Diffuse with Background Suppression, Sn 1 m, 2 m Cable
