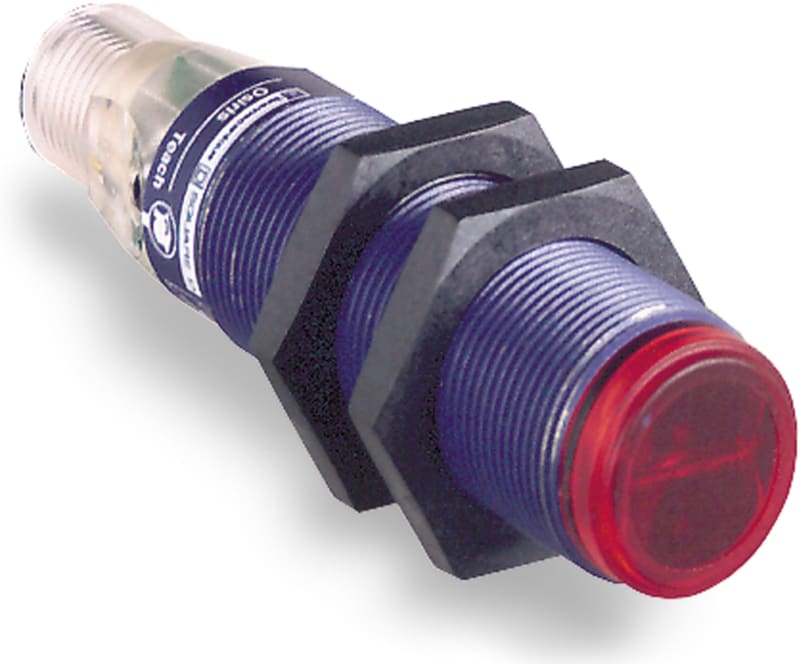

Telemecanique XUB4APANM12 Photoelectric Sensor, Diffuse, Plastic, PNP, NO, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XUB4APANM12 photoelectric sensor, diffuse, Ø18 mm (M18), plastic housing, PNP NO output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUB4APANM12
- EAN / GTIN
- 3666916036440
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Output type
- PNP
- Contact configuration
- NO
- Voltage type
- AC/DC
- Max. output current
- 100 mA
- Housing material
- Plastic
- Suitable for safety functions
- No
- Ambient temperature
- -25–55 °C
- With time function
- No
- Switching frequency
- 500 Hz
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/PNP
- Type of switch function
- Normally open contact (NO)
- Rated control supply voltage DC
- 12–24 V
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Laser protection class
- None
- Type of light
- Infrared light
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0.3 mm
- With monitoring function downstream switching devices
- No
- With restart blockage
- No
- Response time
- 1 ms
- Transmission range of the safety field
- 3 m
- Type of safety according to IEC 61496-1
- 1
- Operating distance
- 100 mm
- Pre failure notice
- No
- Material of optical surface
- Plastic
- Degree of protection (IP)
- IP65
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- Analogue output 4 mA ... 20 mA
- No
- Diameter sensor
- 18 mm
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Length of sensor
- 60 mm
- Max. switching distance
- 150 mm
- With reflector
- No
- With other analogue output
- No
- Sensing mode
- Dark switching
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916036440
- SAP 1000061179
- Code 8873725
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCMD2102L5 Limit Switch, Metal Roller Plunger
Telemecanique
Telemecanique ZCY12 Metal Roller Actuator Lever for ZC2/XC Standard Limit Switches
Telemecanique
Telemecanique OsiSense XS8D1A1MAL2 Inductive Proximity Sensor — 80 × 80 mm block, Sn 60 mm, 2-Wire AC/DC, NO, pre-wired cable
Telemecanique
Telemecanique XCMD2115C12 Limit Switch, Short Roller Lever, Metal Body, M12 connector (5-pin)
Telemecanique
Telemecanique XZCP0941L10 Sensor Cable, M8 female straight, 4-pin, 10 m
Telemecanique
Telemecanique OsiSense XS1M18KP340 Inductive Proximity Sensor — M18 barrel, Sn 5 mm, PNP or NPN, programmable, NO or NC, pre-wired cable (2 m)
Telemecanique
Inductive sensors (XSDH607339)
Telemecanique
Telemecanique ZCKY13 Actuator Lever for ZCK Limit Switches
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUB4APANM12?
- XUB4APANM12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUB4APANM12.
- What is the HS code for XUB4APANM12?
- The customs tariff (HS) code for XUB4APANM12 is 8536.50.
- Who manufactures XUB4APANM12?
- XUB4APANM12 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUB4APANM12?
- Yes — the XUB4APANM12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUB4APANM12?
- The minimum order quantity is 1.
- Is XUB4APANM12 available?
- Yes — XUB4APANM12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
