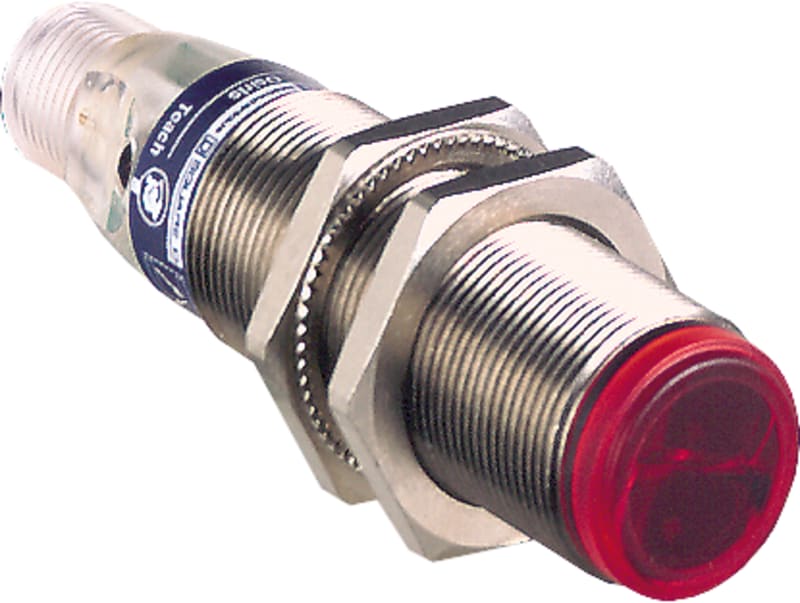

Telemecanique XUB1BNANM12 Photoelectric Sensor M18, Retroreflective, Metal, NPN, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUB1BNANM12 XUB M18 cylindrical photoelectric sensor, retroreflective, metal housing, NPN output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUB1BNANM12
- EAN / GTIN
- 3666916036655
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Output type
- NPN
- Contact configuration
- NO
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 4000 mm
- Max. switching distance
- 5500 mm
- Max. output current
- 100 mA
- With reflector
- Yes
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Connector M12
- Type of switching output
- NPN/NPN
- Type of switch function
- Normally open contact (NO)
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 76 mm
- Sensing mode
- Dark switching
- Material of optical surface
- Plastic
- Housing material
- Metal
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 1000 mm
- Response time
- 1 ms
- Switching frequency
- 500 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Infrared light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916036655
- SAP 1000005388
- Code 830592
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMEP400BD11F Pressure Transmitter, 0–400 bar, G 1/4 A, 0.5–4.5 V ratiometric
Telemecanique
Telemecanique XCPR2118P20 Limit Switch, Plastic Body, M20 entry
Telemecanique
Telemecanique OsiSense XS618B1DBM12 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, 2-Wire DC, NC, M12 connector (4-Pin)
Telemecanique

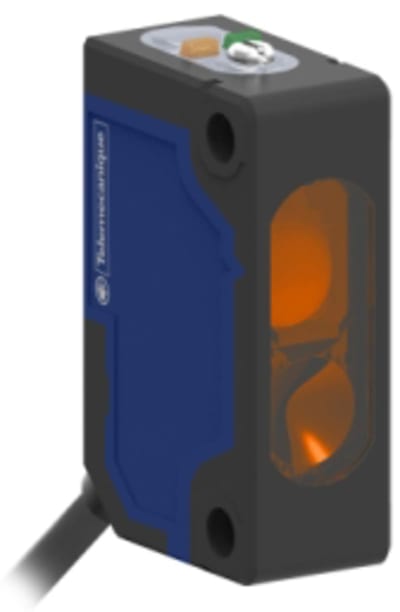

Telemecanique XUM6APXBL2 Photoelectric Sensor, Diffuse with Background Suppression, Sn 0.8 m, PNP, 2 m cable
Telemecanique
Telemecanique OsiSense XS8C1A1MBL01U20 Inductive Proximity Sensor — 40 × 40 mm block, Sn 25 mm, 2-Wire AC/DC, NC, screw terminals
Telemecanique

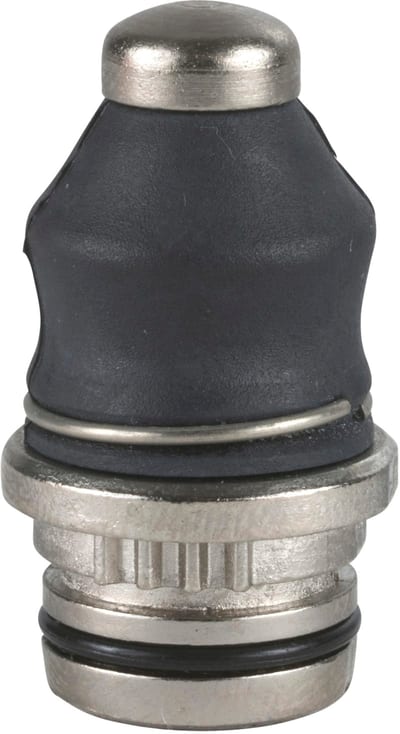

Telemecanique ZCE11 Plunger Operating Head for XC Standard Limit Switches
