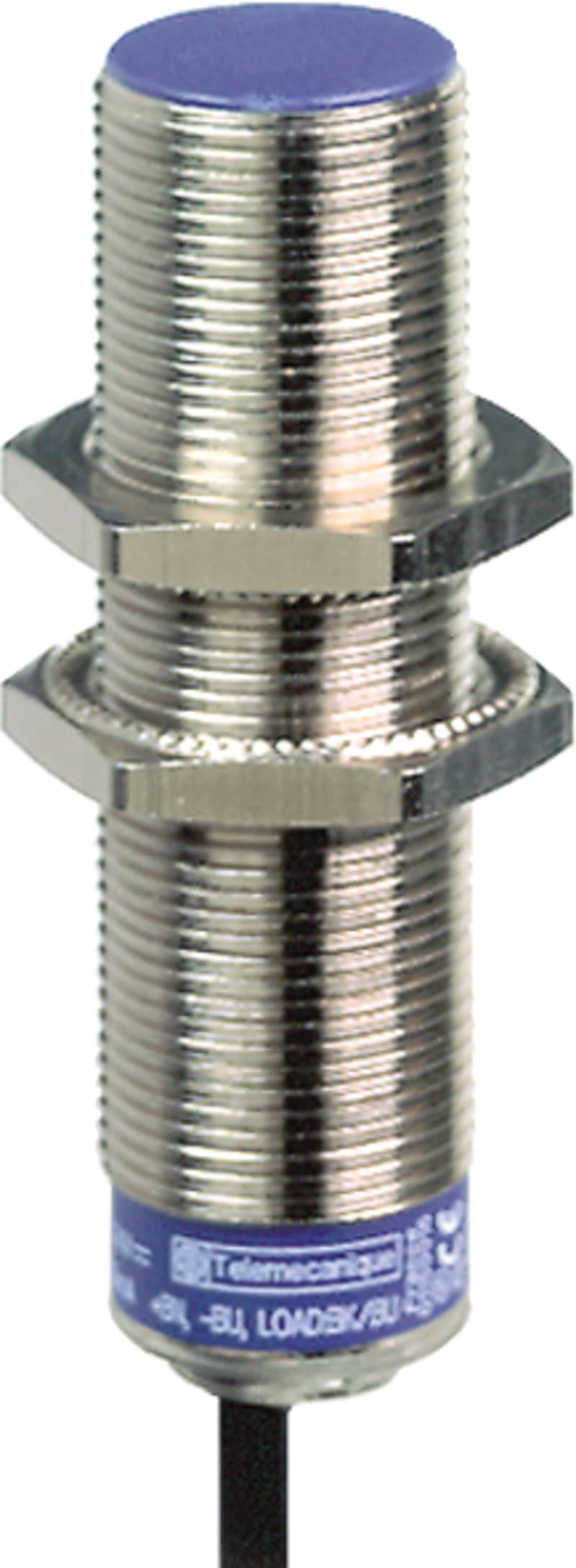

Telemecanique OsiSense XS618B1NAL5 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, NPN, NO, pre-wired cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS618B1NAL5 is an OsiSense XS inductive proximity sensor in an M18 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 8 mm. It provides a NPN (3-wire DC) output, switching NO (normally open), via pre-wired cable. IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS618B1NAL5
- EAN / GTIN
- 3666916012468
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M18 cylindrical threaded barrel (Nickel-plated brass)
- Nominal sensing distance Sn
- 8 mm
- Output
- NPN (3-wire DC)
- Switching function
- NO (normally open)
- Connection
- pre-wired cable
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 14 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916012468
Product Documentation
