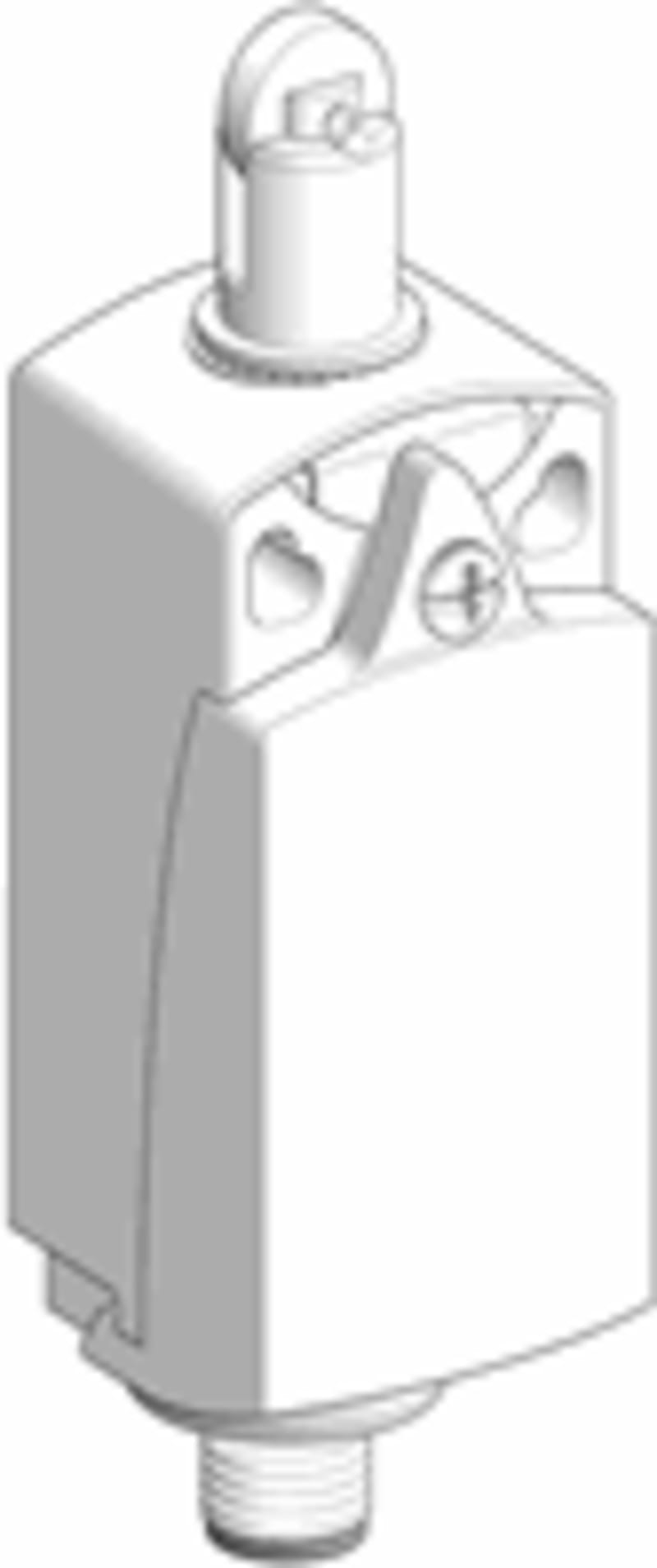

Telemecanique XCKP2102M12 Limit Switch, Roller Plunger, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKP2102M12 limit switch (position switch), roller plunger actuator, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XCKP2102M12
- EAN / GTIN
- 3666916093931
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 77 pcs
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Connector M12
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Roller cam
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 31 mm
- Height of sensor
- 65 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Alignment of the control element
- Roller cam straight
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916093931
- SAP 1000340391
- Code 8989013
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS518B1MAL2 Inductive Proximity Sensor — M18 barrel, Sn 5 mm, 2-Wire AC/DC, NO, pre-wired cable (2 m)
Telemecanique
2 Metal Nuts (XSZE118)
Telemecanique
2 Metal Nuts (XSZE130)
Telemecanique
Telemecanique XS1N05PA311S Inductive Proximity Sensor, PNP
Telemecanique

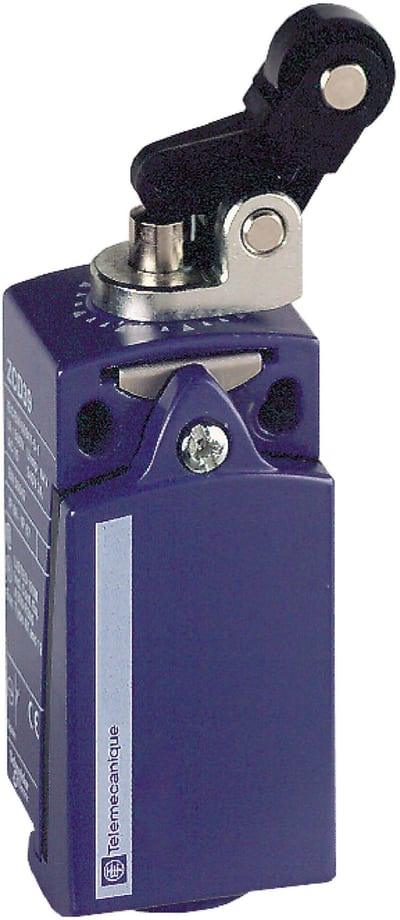

Telemecanique XCKD2527P16 Limit Switch, Roller Lever Arm, Plastic Body, 1 NO + 1 NC, M16 entry
Telemecanique

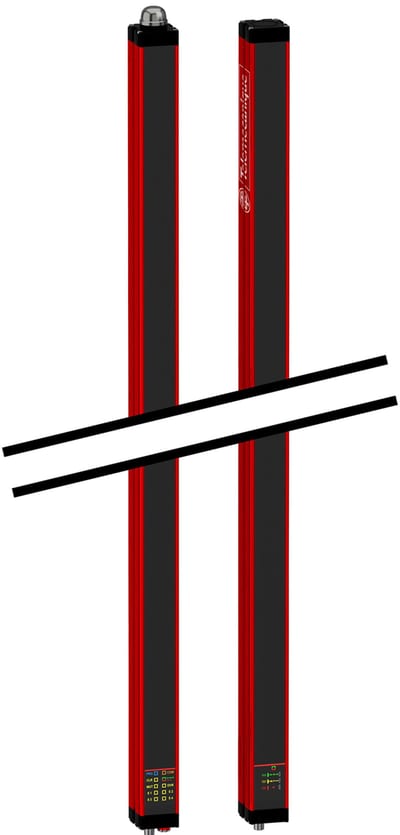

Telemecanique XUSL4MA4BB091N Type 4 Safety Light Grille with Integrated Muting
Telemecanique

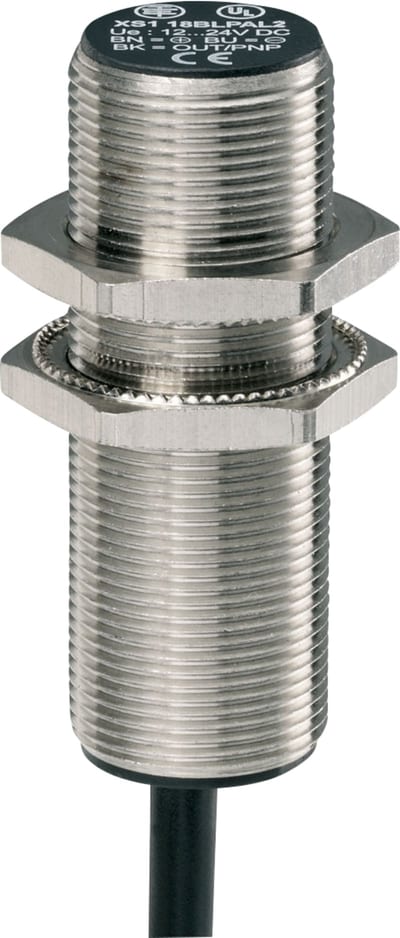

Telemecanique OsiSense XS518B1MBL2 Inductive Proximity Sensor — M18 barrel, Sn 5 mm, 2-Wire AC/DC, NC, pre-wired cable (2 m)
Telemecanique

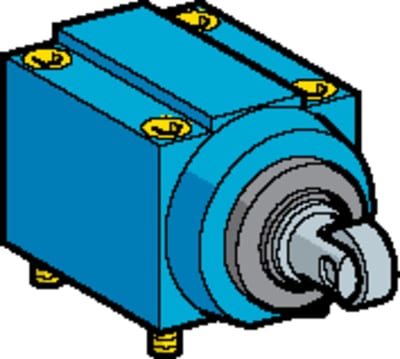

Telemecanique ZC2JE85 Limit Switch Operating Head, Roller cam
