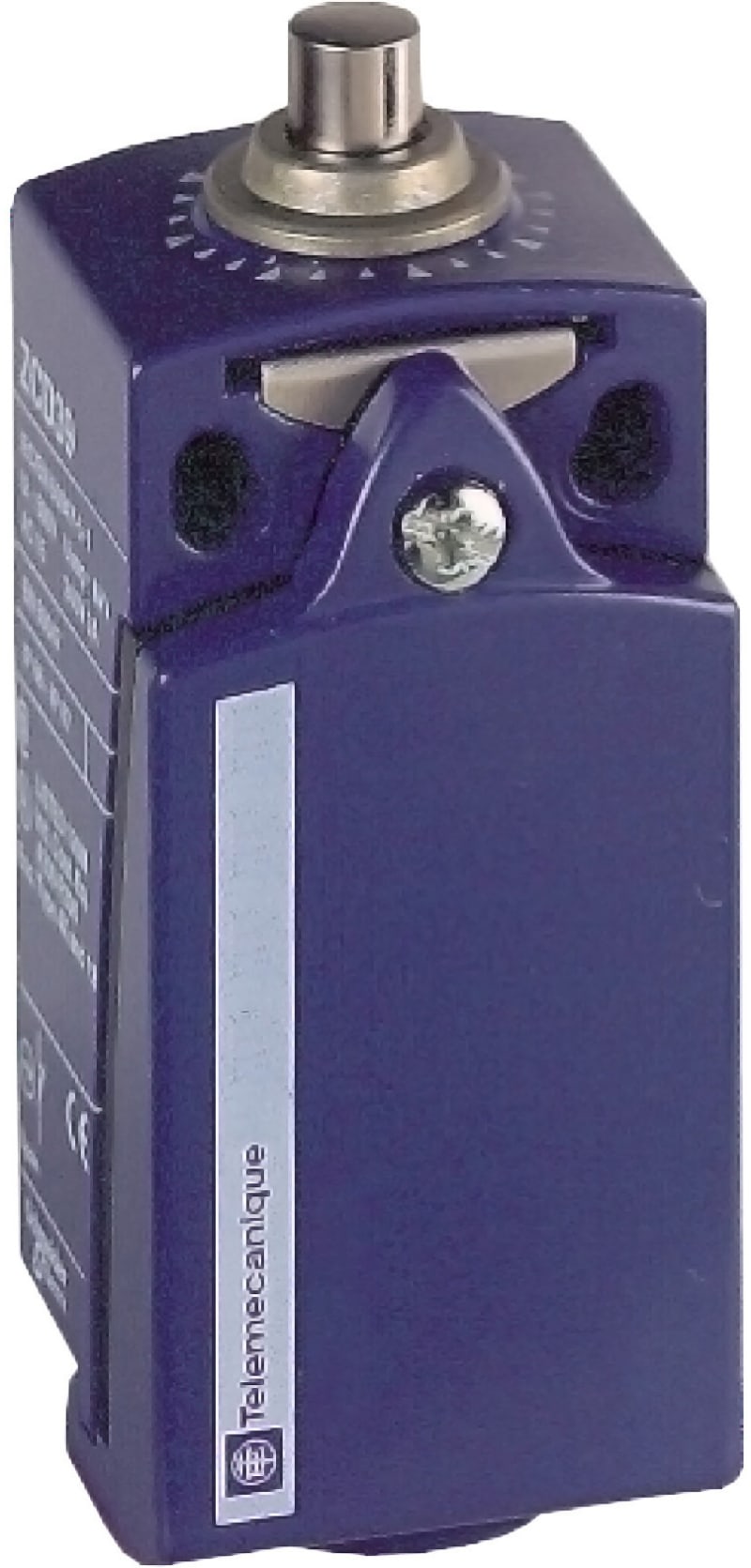

Telemecanique XCKD2110G11 Limit Switch, Metal Plunger, 1 NO + 1 NC, PG11 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKD2110G11 limit switch (position switch), metal plunger actuator, 1 NO + 1 NC contacts, PG11 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKD2110G11
- EAN / GTIN
- 3666916094723
- Sales unit
- pcs
- Package quantity
- 27 pcs
- Contact configuration
- NO/NC
- Cable entry
- PG11
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Plunger
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 31 mm
- Height of sensor
- 75 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916094723
- SAP 1000028301
- Code 8222199
Product Documentation
