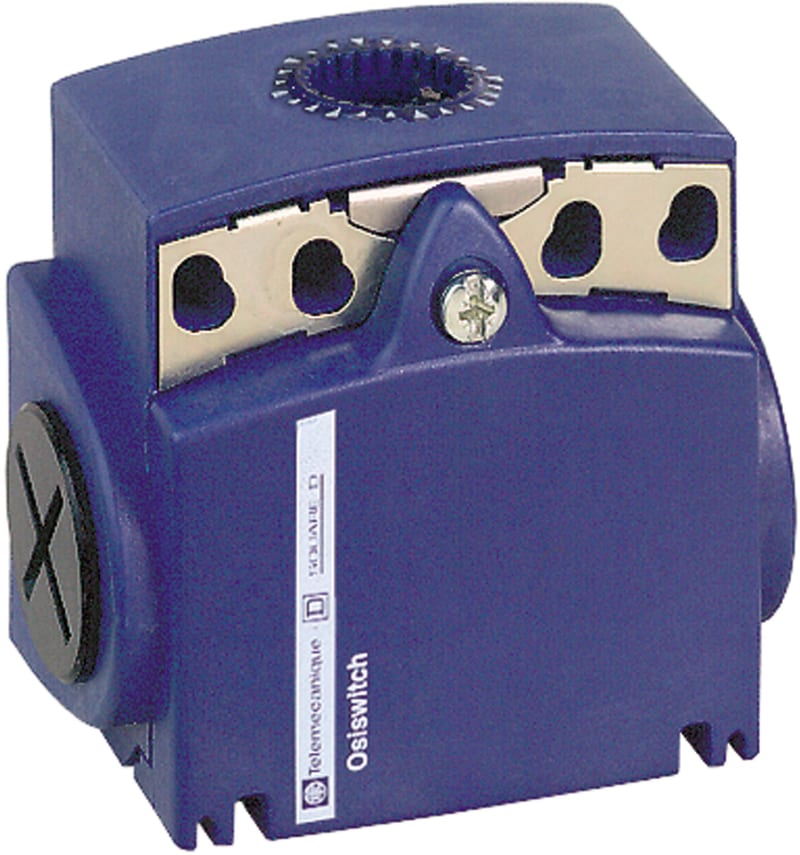

Telemecanique ZCT25P16 Limit Switch Body, Plastic, NO/NC, Slow-break, M16 cable entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCT25P16 limit switch body (contact block), plastic housing, NO/NC slow-break contacts, M16 cable entry; combines with ZCK/ZC2 operating heads to form a complete limit switch.
Technical Specifications
- Manufacturer part number (MPN)
- ZCT25P16
- EAN / GTIN
- 3666916091814
- Sales unit
- pcs
- Package quantity
- 72 pcs
- Contact configuration
- NO / NC
- Switching function
- Slow-action switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 58 mm
- Height of sensor
- 51 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916091814
- SAP 1000052294
- Code 8875956
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUB2BPBNM12R Photoelectric Through-Beam Receiver, Metal, PNP, NC, M12 connector
Telemecanique
Telemecanique OsiSense XS7F1A1PAL2 Inductive Proximity Sensor — 15 × 32 mm block, Sn 10 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique OsiSense XS612B1NBL2 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, NPN, NC, pre-wired cable
Telemecanique
Telemecanique OsiSense XS612B1NBL5 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, NPN, NC, pre-wired cable
Telemecanique
Telemecanique XCKS539H29 Limit Switch, 1 NO + 1 NC, M20 entry
Telemecanique
Telemecanique XS512B1DAL2 Optimum Inductive Proximity Sensor Ø12 mm, DC 2-Wire NO, 2 m cable
Telemecanique
Telemecanique XUB5BPANM12 Photoelectric Sensor, Diffuse, Metal, PNP, NO, M12 connector
Telemecanique
Telemecanique XUSL4MA2BB051N Type 4 Safety Light Grille with Integrated Muting
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZCT25P16?
- ZCT25P16 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZCT25P16.
- What is the HS code for ZCT25P16?
- The customs tariff (HS) code for ZCT25P16 is 8536.50.
- Who manufactures ZCT25P16?
- ZCT25P16 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for ZCT25P16?
- Yes — the ZCT25P16 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZCT25P16?
- The minimum order quantity is 1.
- Is ZCT25P16 available?
- Yes — ZCT25P16 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
