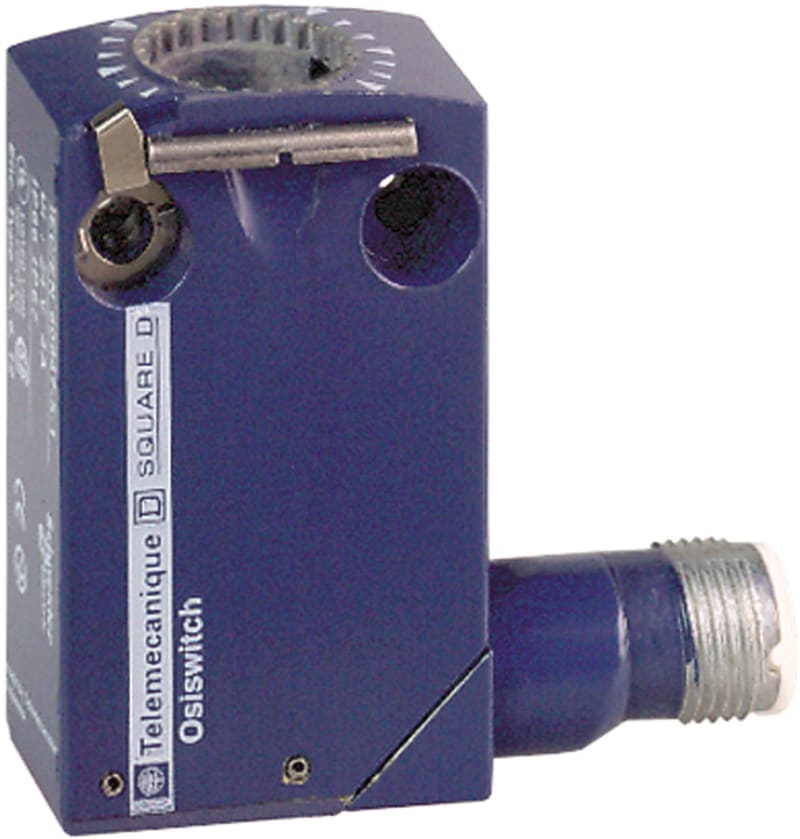

Telemecanique ZCMD21M12 Limit Switch Body, Metal, NO/NC, Snap-action, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCMD21M12 limit switch body (contact block), metal housing, NO/NC snap-action contacts, M12 connector; combines with ZCK/ZC2 operating heads to form a complete limit switch.
Technical Specifications
- Manufacturer part number (MPN)
- ZCMD21M12
- EAN / GTIN
- 3666916042588
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Contact configuration
- NO / NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Connector M12
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66
- Forced opening
- No
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 52 mm
- Height of sensor
- 74 mm
- Length of sensor
- 16 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as change-over contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916042588
- SAP 1000009195
- Code 8477298
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCP0366L5 Sensor Cable, M8 female angled, 3-pin, 5 m
Telemecanique
Telemecanique XCMD21F0C12 Limit Switch, Plunger Head, Metal Body, M12 connector (5-pin)
Telemecanique
Telemecanique XUSZSC172 Mounting Column for Safety Light Curtains, 1720 mm
Telemecanique
Telemecanique XZCPV1340L2 Sensor Cable, M12 female, 3-pin, PVC, 2 m
Telemecanique
Telemecanique XMLP160BC11F Pressure Transmitter, 0–160 bar, 0.5–4.5 V ratiometric, G 1/4, DIN connector
Telemecanique
Telemecanique XMLRM01G2P26 Pressure Sensor with Display, 0–1 bar, 4–20 mA + 2× PNP
Telemecanique
Telemecanique ZCY91 Metal Roller Actuator Lever for ZC2/XC Standard Limit Switches
Telemecanique

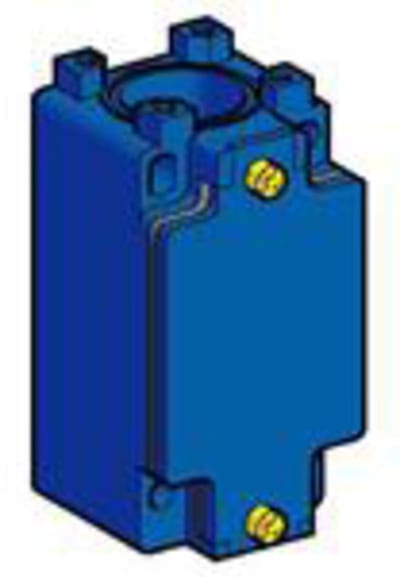

Telemecanique ZCKJ8 Limit Switch Body for ZCK Limit Switches
