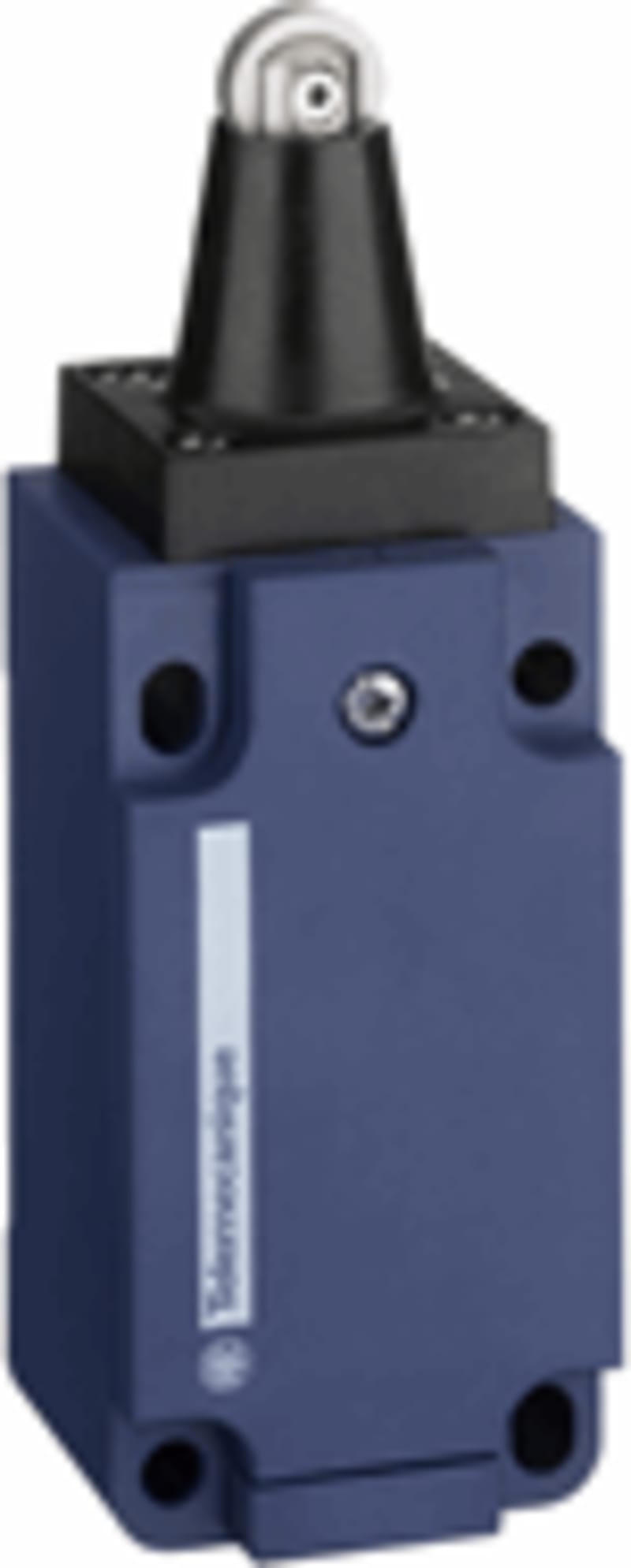

Telemecanique XCKS502 Limit Switch, Plunger, 1 NO + 1 NC, PG13.5 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKS502 limit switch (position switch), plunger actuator, 1 NO + 1 NC contacts, PG13.5 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKS502
- EAN / GTIN
- 3666916053706
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Contact configuration
- NO / NC
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- Roller cam
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 40 mm
- Height of sensor
- 72.5 mm
- Length of sensor
- 36 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Alignment of the control element
- Roller cam straight
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916053706
- SAP 1000342395
- Code 81106777
