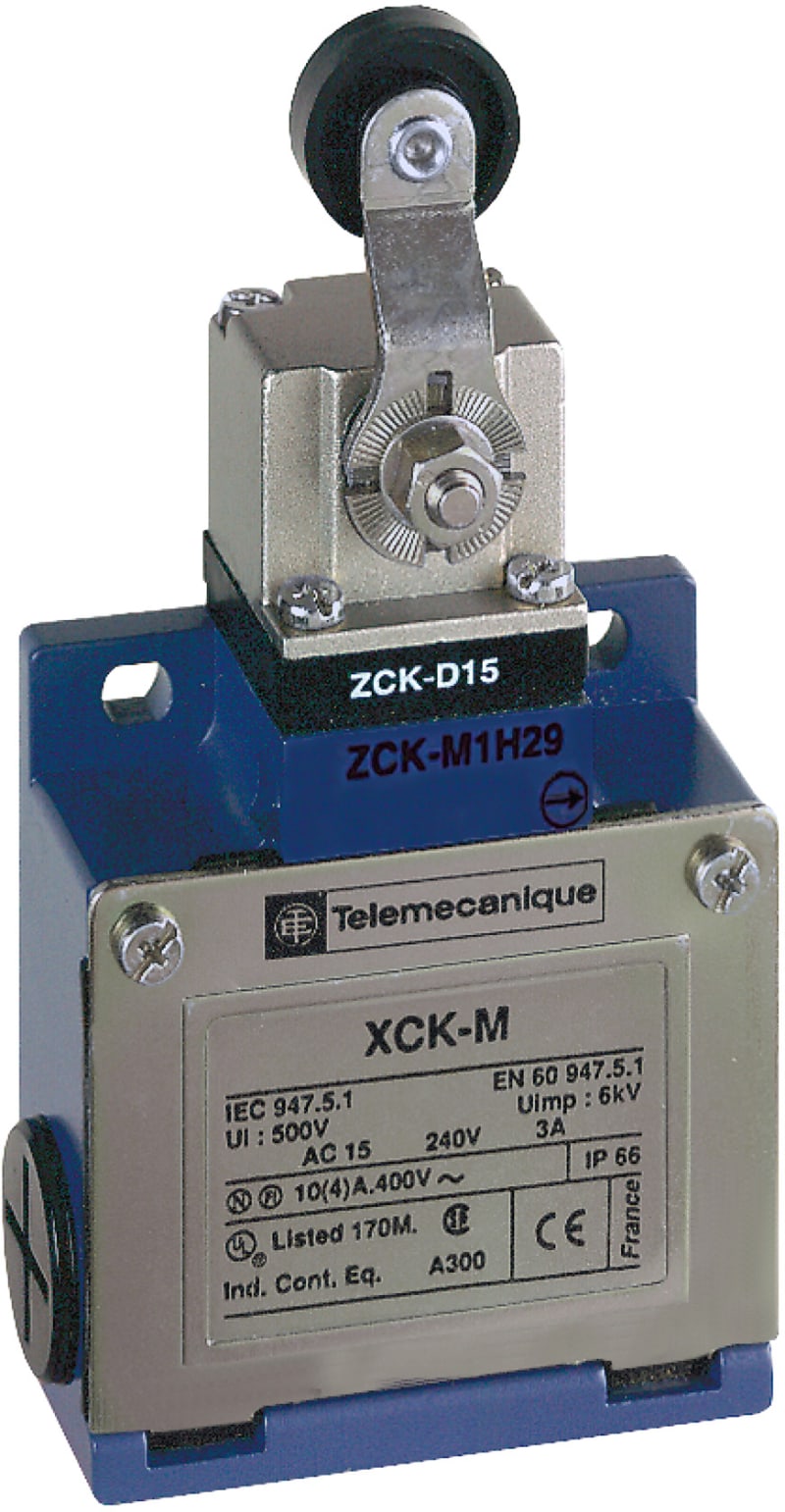

Telemecanique XCKM515H29 Limit Switch, 1 NO + 1 NC, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKM515H29 limit switch (position switch), 1 NO + 1 NC contacts, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKM515H29
- EAN / GTIN
- 3666916056998
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 32 pcs
- Contact configuration
- NO + NC
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Special construction
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Roller lever
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 63 mm
- Height of sensor
- 64 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Number of contacts as change-over contact
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916056998
- SAP 1000087713
- Code 8889457
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCPV1965L10 Sensor Cable, M8 female angled, 3-pin, PVC, 10 m
Telemecanique

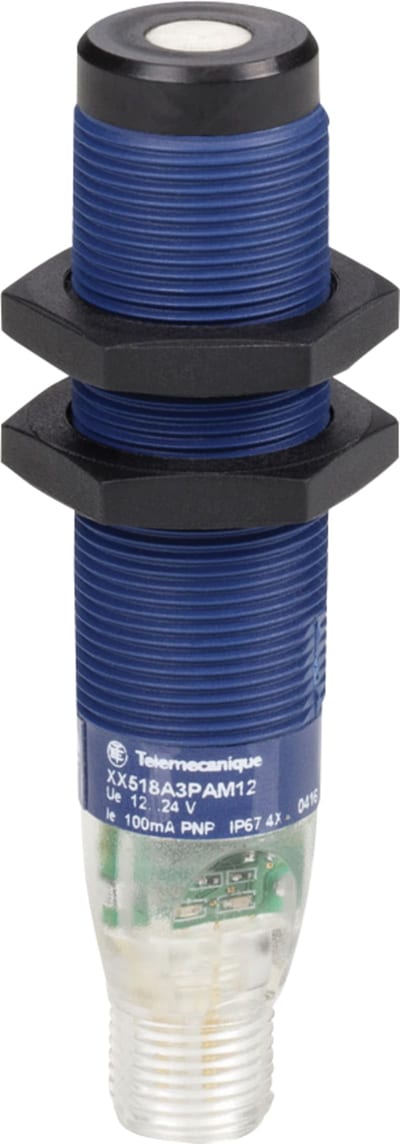

Telemecanique XXT12A8M8 Ultrasonic Sensor (Through-Beam Emitter) M12, M8 connector
Telemecanique
Telemecanique XMLP160BM71F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique XUSL4E14F031NS1 Safety Light Curtain Type 4, Finger Detection (14 mm), 310 mm Height
Telemecanique

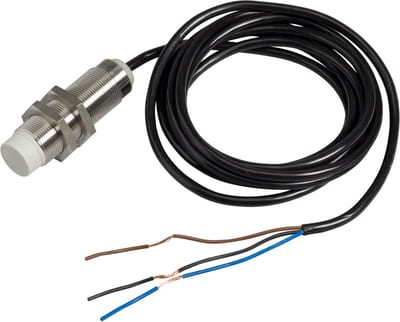

Telemecanique XS218SAMAL2 Inductive Sensor Ø18 mm, AC 2-Wire, NO, 2 m Cable
