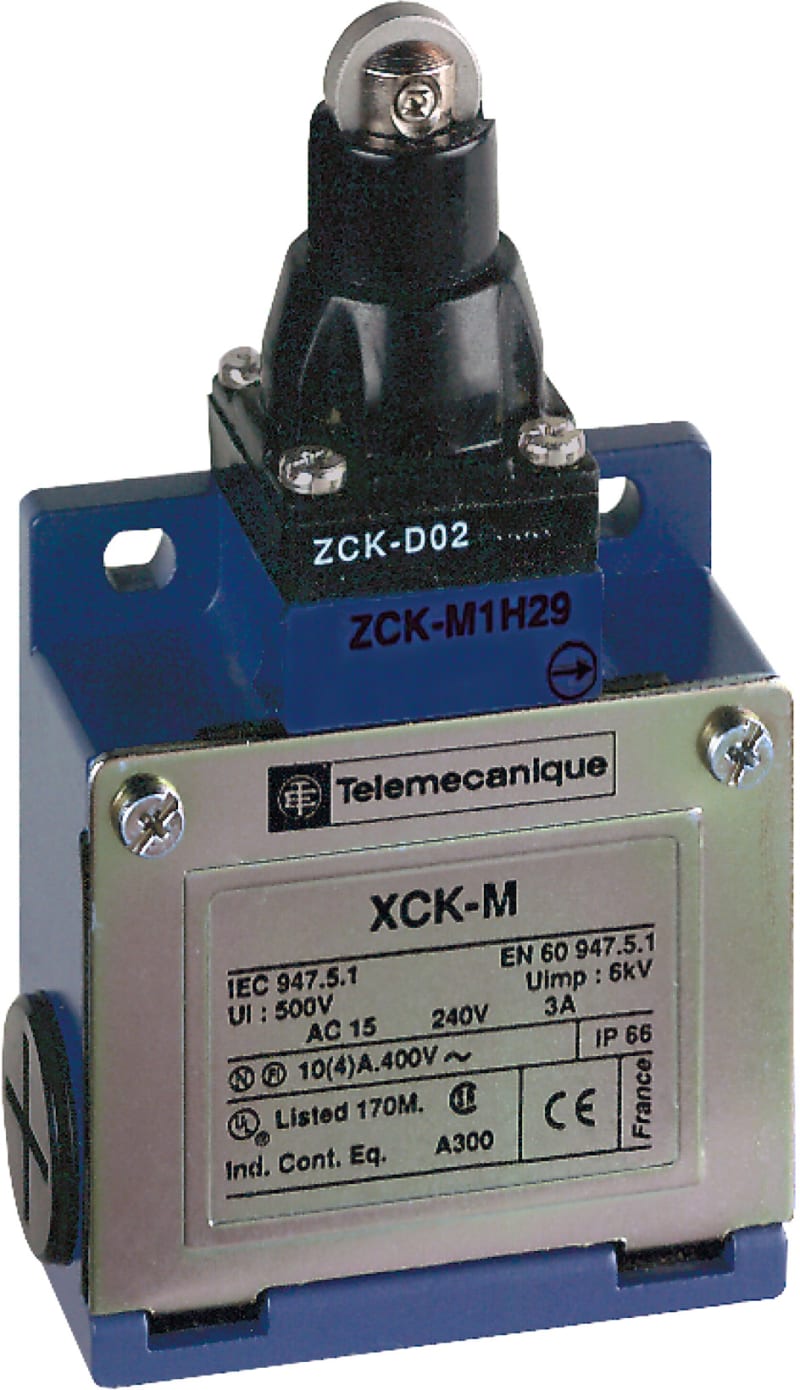

Telemecanique XCKM502H29 Limit Switch, Roller Plunger, 1 NO + 1 NC, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKM502H29 limit switch (position switch), roller plunger actuator, 1 NO + 1 NC contacts, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKM502H29
- EAN / GTIN
- 3666916057063
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 32 pcs
- Contact configuration
- NO + NC
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Special construction
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Roller cam
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 63 mm
- Height of sensor
- 64 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Alignment of the control element
- Roller cam straight
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916057063
- SAP 1000070554
- Code 8728600
Product Documentation
More from Telemecanique
Telemecanique

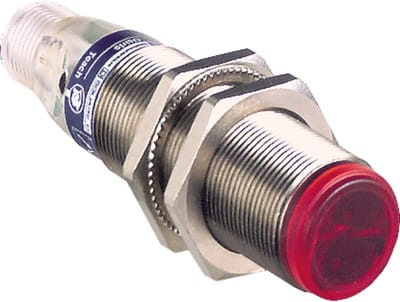

Telemecanique XUB9BPBNM12 Photoelectric Sensor, Polarised Reflex, Metal, PNP, NC, M12 connector
Telemecanique
Telemecanique XZCP0166L2 Sensor Cable, M8 female straight, 3-pin, 2 m
Telemecanique

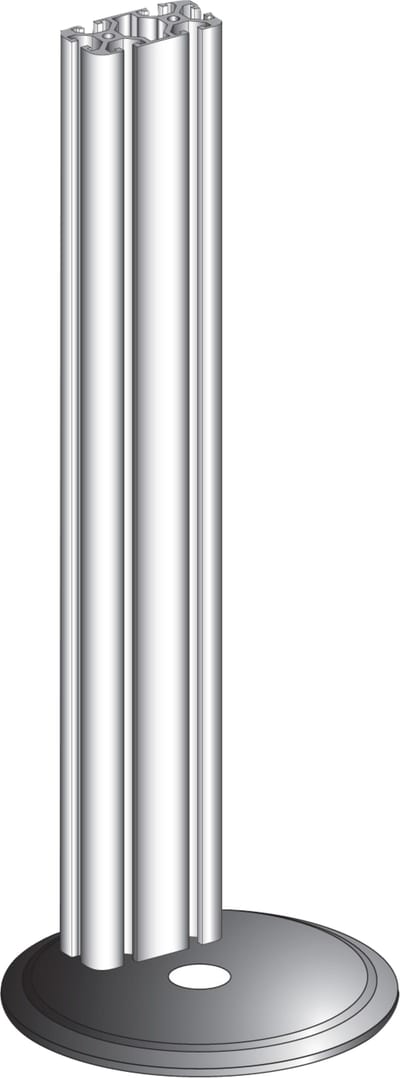

Telemecanique XUSZSS125 Mounting Column for Safety Light Curtains, 1250 mm
Telemecanique

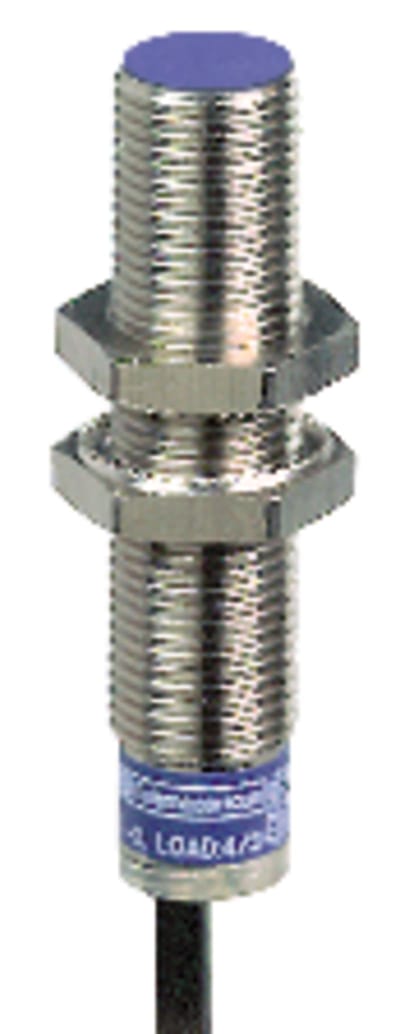

Telemecanique OsiSense XS612B1DAL2 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, 2-Wire DC, NO, pre-wired cable (2 m)
Telemecanique

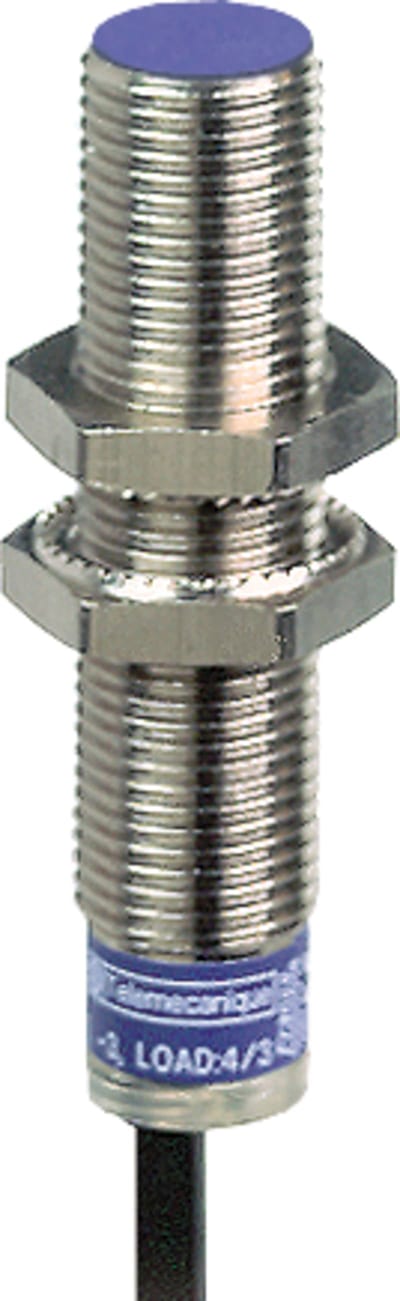

Telemecanique OsiSense XS612B1MBL5 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, 2-Wire AC/DC, NC, pre-wired cable
Telemecanique

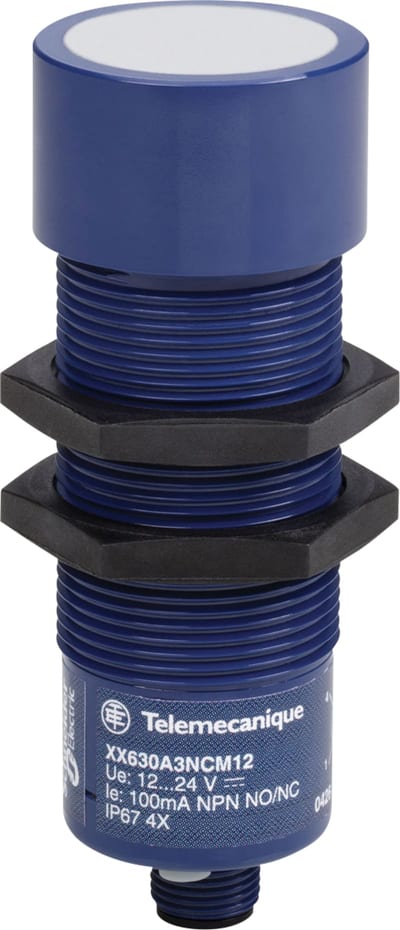

Telemecanique XX630A2NCM12 Ultrasonic Sensor M30, NPN, M12 connector
Telemecanique

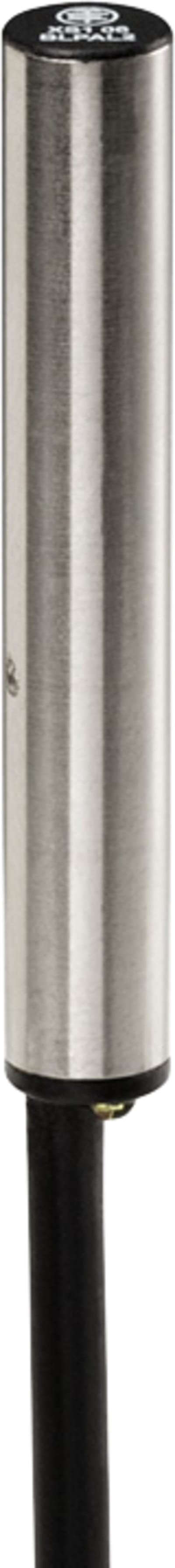

Telemecanique XS106B3PAM8 Inductive Proximity Sensor Ø6.5 mm, Smooth Body, PNP NO, M8 connector
Telemecanique

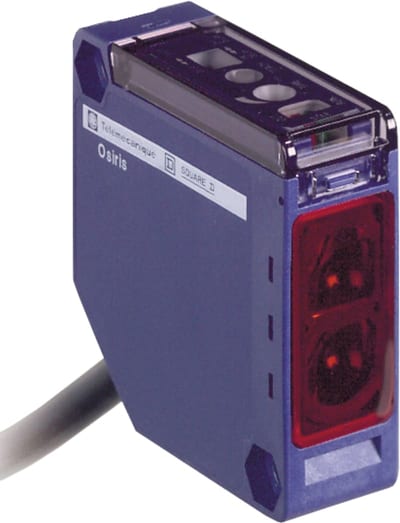

Telemecanique XUK9APBNL2 Photoelectric Sensor, Polarised Retroreflective, PNP, 2 m cable
