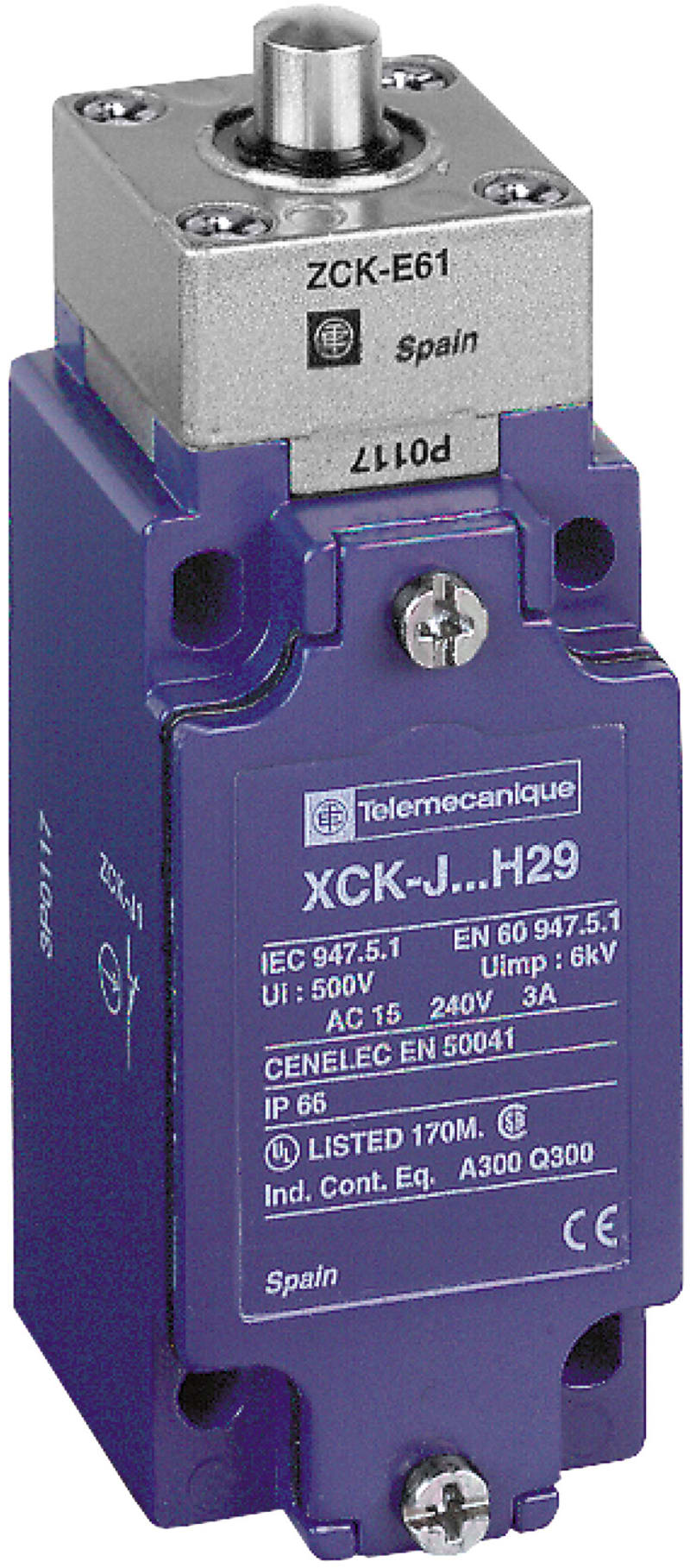

Telemecanique XCKJ561H29 Limit Switch, Metal Plunger, 1 NO + 1 NC, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKJ561H29 limit switch (position switch), metal plunger actuator, 1 NO + 1 NC contacts, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKJ561H29
- EAN / GTIN
- 3666916055649
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Contact configuration
- NO + NC
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Plunger
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 3 A
- Width sensor
- 40 mm
- Height of sensor
- 77 mm
- Length of sensor
- 44 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916055649
- SAP 1000036448
- Code 8769129
Product Documentation
More from Telemecanique
Telemecanique

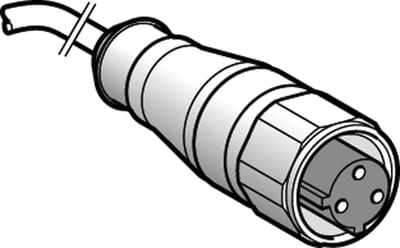

Telemecanique XZCR1511041C5 Sensor Cable, M12 to M12
Telemecanique

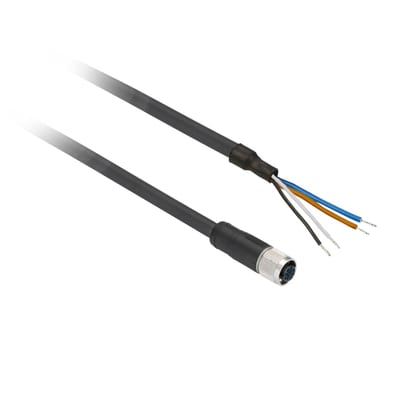

Telemecanique XZCP1169L5 Sensor Cable, M12 female straight, 4-pin, 5 m
Telemecanique
Telemecanique XMLC002B2S11 Pressure Switch, 0.3–2.5 bar
Telemecanique

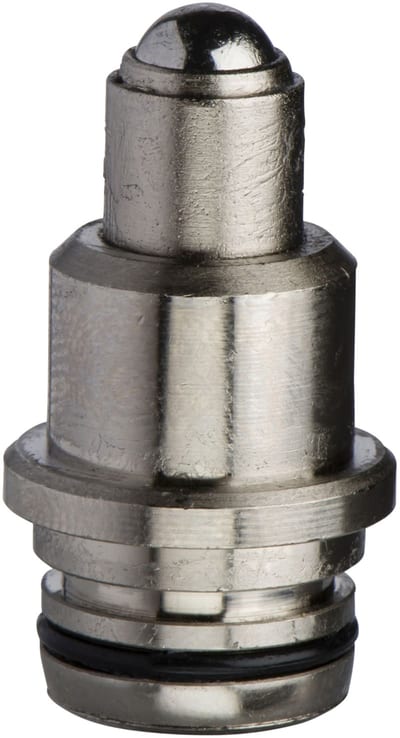

Telemecanique ZCE13 Plunger Operating Head for XC Standard Limit Switches
Telemecanique

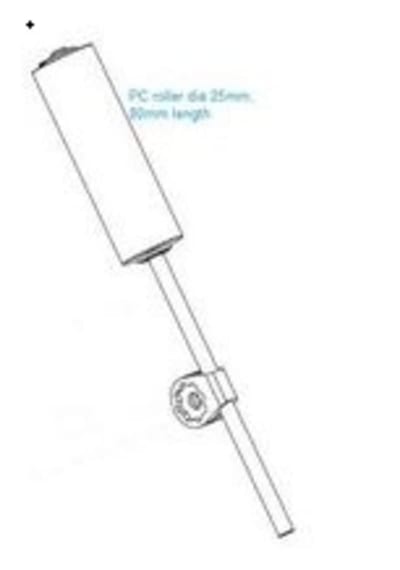

Telemecanique ZCKY21 Actuator Lever for ZCK Limit Switches
Telemecanique

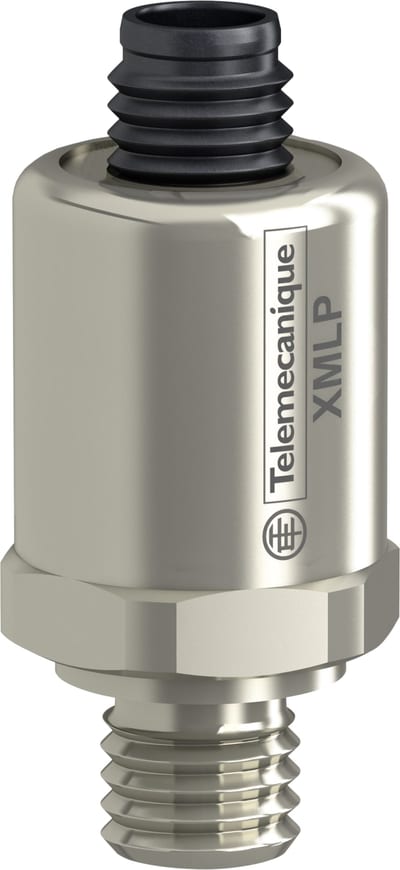

Telemecanique XMLP010BD21FQ Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique

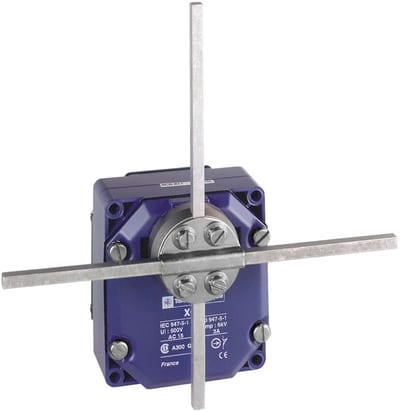

Limit Switch with 2 Firkantpinner (XCRF57)
Telemecanique

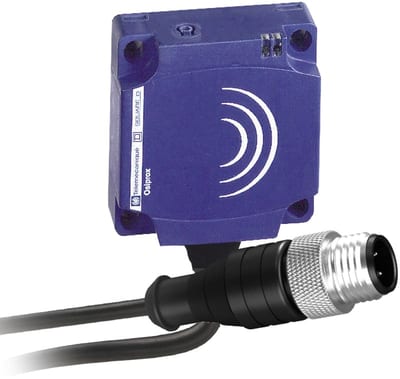

Telemecanique OsiSense XS8C1A1MAL01U20 Inductive Proximity Sensor — 40 × 40 mm block, Sn 25 mm, 2-Wire AC/DC, NO, screw terminals
