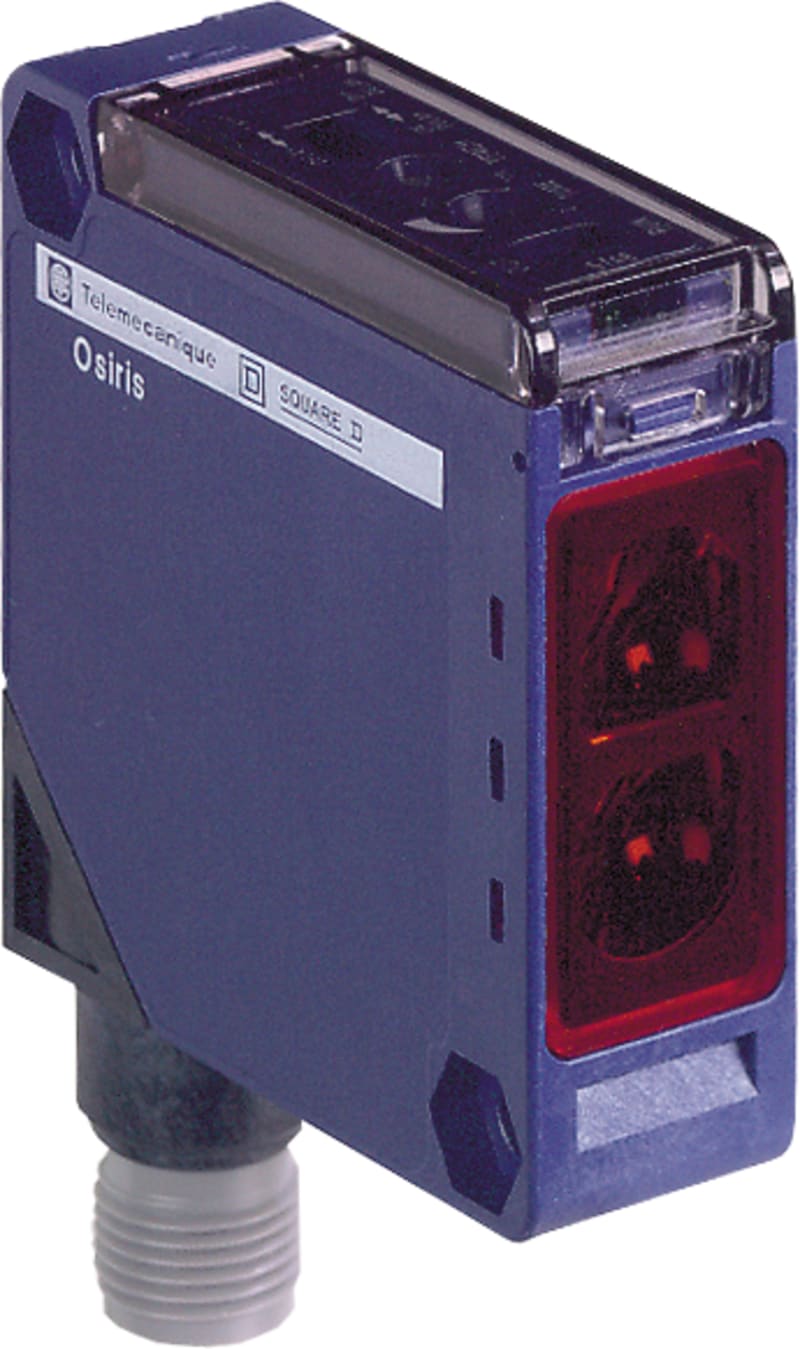

Telemecanique XUK5APBNM12 Photoelectric Sensor, Diffuse, Plastic, PNP, NC, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XUK5APBNM12 photoelectric sensor, diffuse, Compact 50 × 50 mm, plastic housing, PNP NC output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUK5APBNM12
- EAN / GTIN
- 3666916037577
- Sales unit
- pcs
- Package quantity
- 44 pcs
- Output type
- PNP
- Contact configuration
- NC
- Voltage type
- AC/DC
- Max. output current
- 100 mA
- Housing material
- Plastic
- Suitable for safety functions
- No
- Ambient temperature
- -25–55 °C
- With time function
- No
- Switching frequency
- 250 Hz
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/PNP
- Type of switch function
- Breaker contact (NC)
- Rated control supply voltage DC
- 12–24 V
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Laser protection class
- None
- Type of light
- Infrared light
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0.3 mm
- With monitoring function downstream switching devices
- No
- With restart blockage
- No
- Response time
- 2 ms
- Transmission range of the safety field
- 0.3 m
- Type of safety according to IEC 61496-1
- 1
- Operating distance
- 1000 mm
- Pre failure notice
- No
- Material of optical surface
- Plastic
- Degree of protection (IP)
- IP65
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- Analogue output 4 mA ... 20 mA
- No
- Width sensor
- 18 mm
- Height of sensor
- 50 mm
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Length of sensor
- 50 mm
- Max. switching distance
- 1500 mm
- With reflector
- No
- With other analogue output
- No
- Sensing mode
- Dark switching
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916037577
- SAP 1000039364
- Code 8739620
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCKT2110P16 Limit Switch, Metal Plunger, 1 NO + 1 NC, M16 entry
Telemecanique
Telemecanique XUK5ANBNM12 Photoelectric Sensor, Diffuse, NPN, NC, M12 connector
Telemecanique
Telemecanique OsiSense XS7E1A1NBL2 Inductive Proximity Sensor — 26 × 26 mm block, Sn 10 mm, NPN, NC, pre-wired cable
Telemecanique
XUK,Direct.NPN NO 2M Cable
XUK5ANANL2
Telemecanique
Telemecanique XUB5APBWL2 Photoelectric Sensor M18, Plastic, PNP, 2 m cable
Telemecanique
Telemecanique OsiSense XS7D1A1PAM12 Inductive Proximity Sensor — 80 × 80 mm block, Sn 40 mm, PNP, NO, M12 connector (4-Pin)
Telemecanique

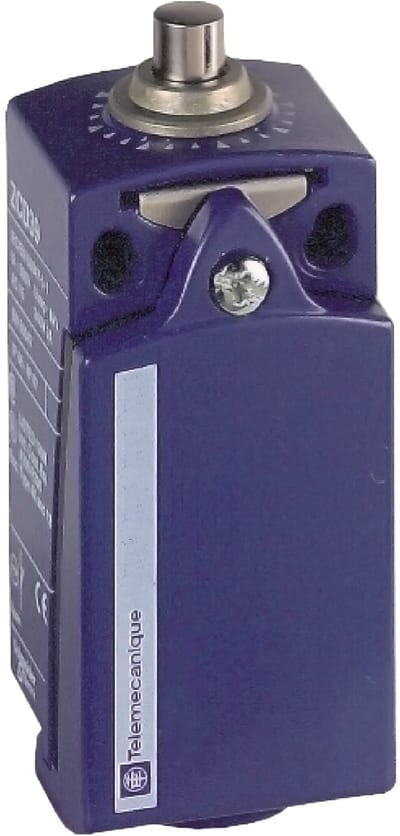

Telemecanique XCKD2510P16 Limit Switch, Metal Plunger, 1 NO + 1 NC, M16 entry
Telemecanique

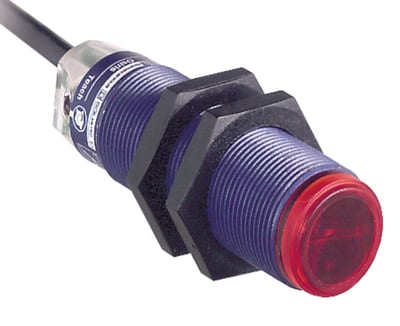

Telemecanique XUB5ANBNL2 Photoelectric Sensor M18, Plastic, NPN, 2 m cable
