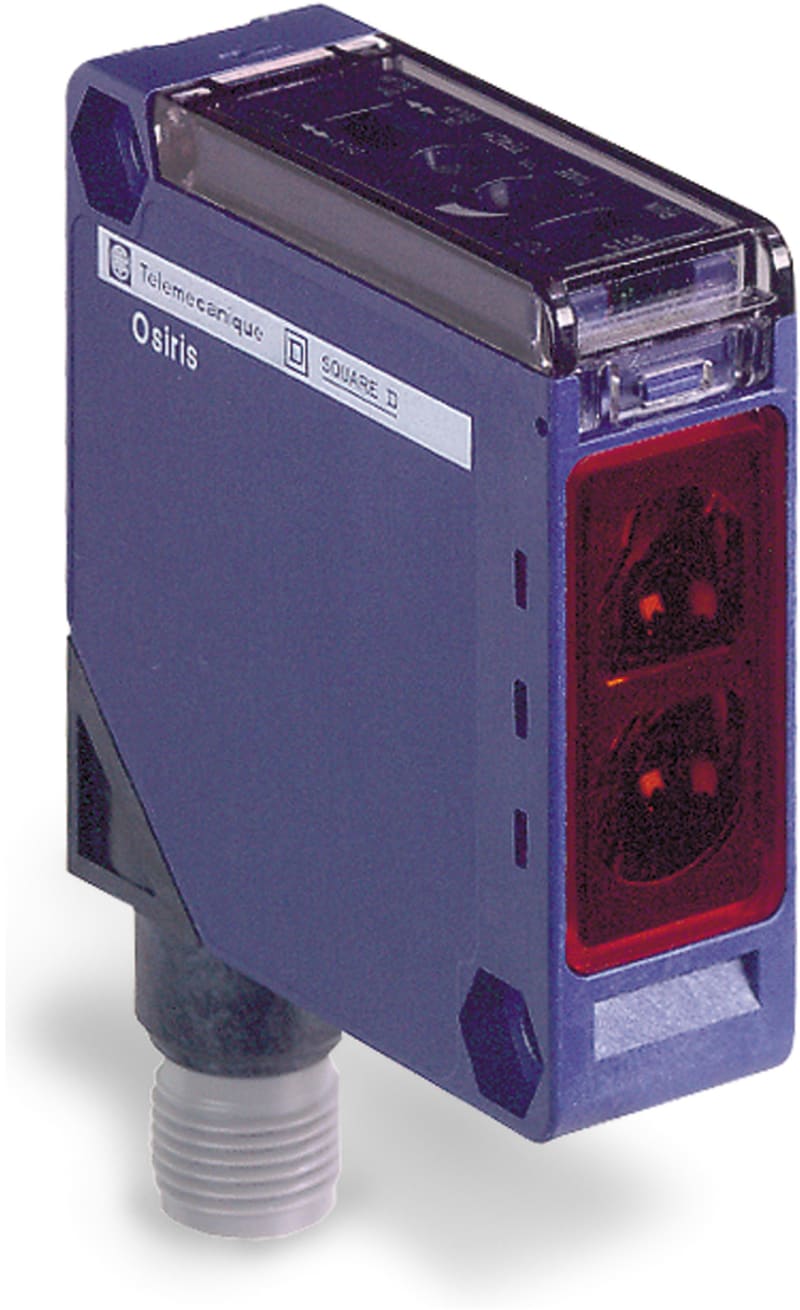

Telemecanique XUK1APBNM12 Photoelectric Sensor, Retroreflective, PNP, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUK1APBNM12 XUK compact photoelectric sensor, retroreflective, PNP output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUK1APBNM12
- EAN / GTIN
- 3666916037706
- Sales unit
- pcs
- Package quantity
- 44 pcs
- Output type
- PNP
- Contact configuration
- NC
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 7000 mm
- Max. switching distance
- 10000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/PNP
- Type of switch function
- Breaker contact (NC)
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Width sensor
- 18 mm
- Height of sensor
- 50 mm
- Length of sensor
- 50 mm
- Sensing mode
- Dark switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 5000 mm
- Ambient temperature
- -25–55 °C
- Response time
- 2 ms
- Switching frequency
- 250 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Infrared light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP65
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916037706
- SAP 1000039455
- Code 8787466
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique ZCY49 Thermoplastic Roller Actuator Lever for ZC2/XC Standard Limit Switches
Telemecanique
Telemecanique XMLR040G1N25 Pressure Sensor with Display, 0–40 bar, 4–20 mA + 1× NPN
Telemecanique
Telemecanique OsiSense XS218AAPAL2 Inductive Proximity Sensor — M18 barrel, Sn 12 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique XS218AAMAU20 Inductive Proximity Sensor, M2
Telemecanique
Telemecanique XUSL4E3BB081NS1 Safety Light Grid Type 4, Body Detection, 3 Beams, 810 mm
Telemecanique
Telemecanique ZCKJ11 Limit Switch Body, Metal, Snap-action, Plug-In, PG cable entry
Telemecanique
Telemecanique XUSL4E14F076NM Safety Light Curtain Type 4, Finger Detection (14 mm), 760 mm Height
Telemecanique
Telemecanique XMH500MF1021F Submersible Level Transmitter, 0–0.5 bar
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUK1APBNM12?
- XUK1APBNM12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUK1APBNM12.
- What is the HS code for XUK1APBNM12?
- The customs tariff (HS) code for XUK1APBNM12 is 8536.50.
- Who manufactures XUK1APBNM12?
- XUK1APBNM12 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUK1APBNM12?
- Yes — the XUK1APBNM12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUK1APBNM12?
- The minimum order quantity is 1.
- Is XUK1APBNM12 available?
- Yes — XUK1APBNM12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
