Telemecanique XUB5BPBWL2 Photoelectric Sensor M18, Metal, PNP, 2 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description

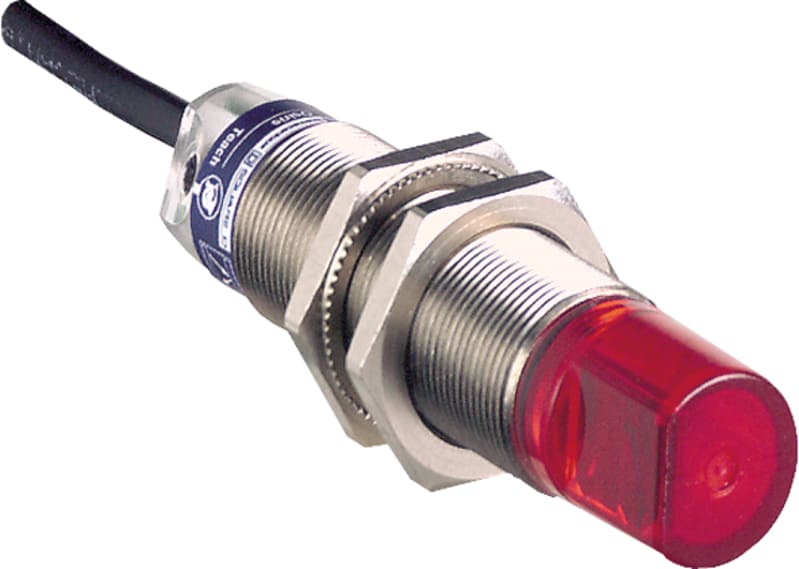

Telemecanique XUB5BPBWL2 XUB M18 cylindrical photoelectric sensor, metal housing, PNP output, 2 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XUB5BPBWL2
- EAN / GTIN
- 3666916035993
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Output type
- PNP
- Contact configuration
- NC
- Voltage type
- AC/DC
- Max. output current
- 100 mA
- Housing material
- Metal
- Suitable for safety functions
- No
- Ambient temperature
- -25–55 °C
- With time function
- No
- Switching frequency
- 500 Hz
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Cable radial
- Type of switching output
- PNP/PNP
- Type of switch function
- Breaker contact (NC)
- Rated control supply voltage DC
- 12–24 V
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Laser protection class
- None
- Type of light
- Infrared light
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0.3 mm
- With monitoring function downstream switching devices
- No
- With restart blockage
- No
- Response time
- 1 ms
- Transmission range of the safety field
- 0.3 m
- Type of safety according to IEC 61496-1
- 1
- Pre failure notice
- No
- Material of optical surface
- Plastic
- Material of cable sheath
- PUR vulcanized
- Degree of protection (IP)
- IP67K
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- Analogue output 4 mA ... 20 mA
- No
- Diameter sensor
- 18 mm
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Length of sensor
- 78 mm
- Max. switching distance
- 800 mm
- With reflector
- No
- With other analogue output
- No
- Sensing mode
- Light switching
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916035993
- SAP 1000074303
- Code 8778211
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS512B1MAL2 Inductive Proximity Sensor — M12 barrel, Sn 2 mm, 2-Wire AC/DC, NO, pre-wired cable
Telemecanique
Telemecanique XUSL2E30H031N Safety Light Curtain Type 2, 30 mm resolution, hand detection, 310 mm protected height
Telemecanique
Telemecanique OsiSense XS530B1NAM12 Inductive Proximity Sensor — M30 barrel, Sn 10 mm, NPN, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique XUSL2E30H121N Safety Light Curtain Type 2, 30 mm resolution, hand detection, 1210 mm protected height
Telemecanique
Telemecanique XUSL2E30H046N Safety Light Curtain Type 2, 30 mm resolution, hand detection, 460 mm protected height
Telemecanique
Telemecanique OsiSense XS212SAPAM12 Inductive Proximity Sensor — M12 stainless barrel, Sn 7 mm, PNP, NO, M12 connector (4-Pin)
Telemecanique

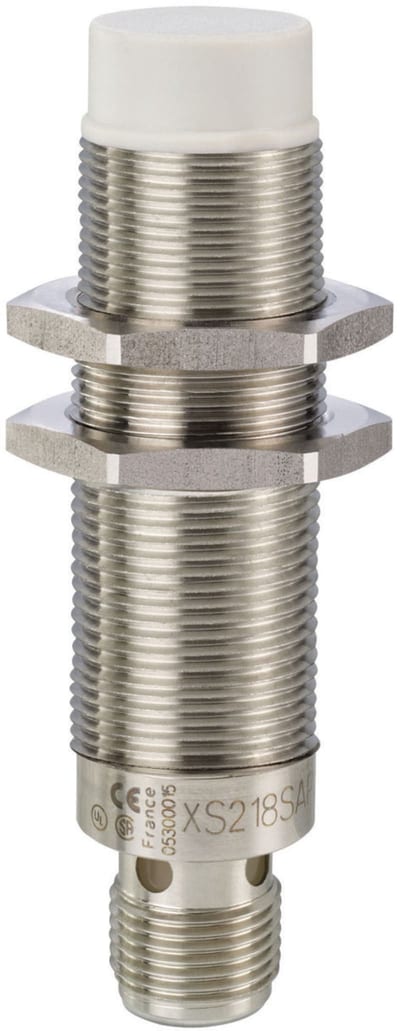

Telemecanique OsiSense XS218SAPAM12 Inductive Proximity Sensor — M18 stainless barrel, Sn 12 mm, PNP, NO, M12 connector (4-Pin)
