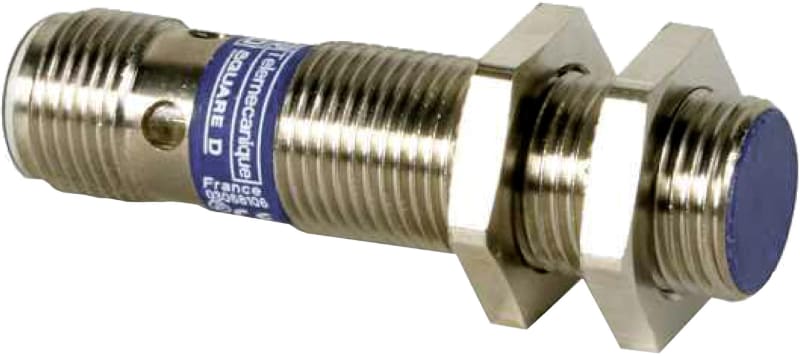

Telemecanique OsiSense XS512B1NAM12 Inductive Proximity Sensor — M12 barrel, Sn 2 mm, NPN, NO, M12 connector (4-Pin)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS512B1NAM12 is an OsiSense XS inductive proximity sensor in an M12 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 2 mm. It provides a NPN (3-wire DC) output, switching NO (normally open), via M12 connector (4-pin). IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS512B1NAM12
- EAN / GTIN
- 3666916013526
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M12 cylindrical threaded barrel (Nickel-plated brass)
- Nominal sensing distance Sn
- 2 mm
- Output
- NPN (3-wire DC)
- Switching function
- NO (normally open)
- Connection
- M12 connector (4-pin)
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 44 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
