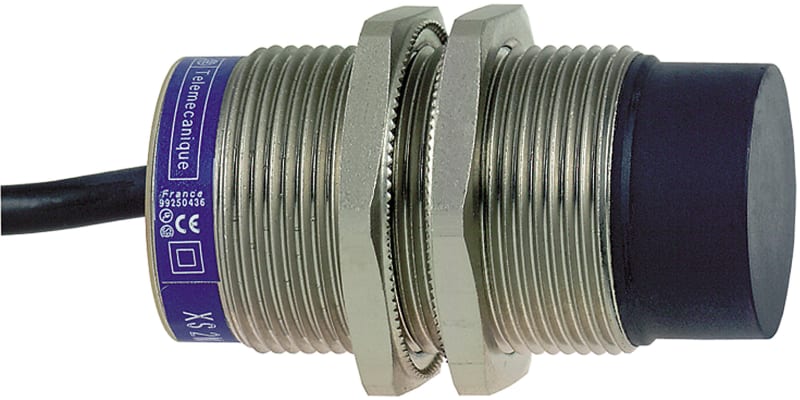

Telemecanique OsiSense XS630B4MBL2 Inductive Proximity Sensor — M30 barrel, Sn 22 mm, 2-Wire AC/DC, NC, pre-wired cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS630B4MBL2 is an OsiSense XS inductive proximity sensor in an M30 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 22 mm and a flush-mountable (shielded) sensing face. It provides a 2-wire AC/DC output, switching NC (normally closed), via pre-wired cable. Rated supply 24…240 V AC/DC, IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS630B4MBL2
- EAN / GTIN
- 3666916011683
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M30 cylindrical threaded barrel (Nickel-plated brass)
- Mounting
- flush-mountable (shielded)
- Nominal sensing distance Sn
- 22 mm
- Output
- 2-wire AC/DC
- Switching function
- NC (normally closed)
- Connection
- pre-wired cable
- Rated supply voltage
- 24…240 V AC/DC
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 11 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916011683
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS530B1MBL2 Inductive Proximity Sensor — M30 barrel, Sn 10 mm, 2-Wire AC/DC, NC, pre-wired cable (2 m)
Telemecanique
Telemecanique ZCKM8H29 Limit Switch Body, Metal, NO+NO, Slow-break, M20 cable entry
Telemecanique
Telemecanique XCKT limit switch, plastic body, thermoplastic roller lever plunger head, horizontal actuation, 1 NC + 1 NO, snap action, spring return, M16 x 1.5 cable entry, IP66/IP67 XCKT2121P16
Telemecanique
Telemecanique XUSL4MB4BB091N Type 4 Safety Light Grille with Integrated Muting
Telemecanique
Telemecanique XS518B1DAL2 Optimum Inductive Proximity Sensor Ø18 mm, DC 2-Wire NO, 2 m cable
Telemecanique
Telemecanique OsiSense XS630B1MAL10 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, 2-Wire AC/DC, NO, pre-wired cable
Telemecanique
Telemecanique OsiSense XS530B1PBL2 Inductive Proximity Sensor — M30 barrel, Sn 10 mm, PNP, NC, pre-wired cable (2 m)
Telemecanique
Telemecanique XS112B3NAM12 Inductive Proximity Sensor Ø12 mm, Threaded, NPN NO, M12 connector
Technical guides
- Inductive Proximity Sensor Cross-Reference — Telemecanique OsiSense XS, Carlo Gavazzi ICB, Omron E2E, Eaton E57, Turck, Pepperl+Fuchs by Housing, Sensing Distance and Output
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XS630B4MBL2?
- XS630B4MBL2 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XS630B4MBL2.
- What is the HS code for XS630B4MBL2?
- The customs tariff (HS) code for XS630B4MBL2 is 8536.50.
- Who manufactures XS630B4MBL2?
- XS630B4MBL2 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XS630B4MBL2?
- Yes — the XS630B4MBL2 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XS630B4MBL2?
- The minimum order quantity is 1.
- Is XS630B4MBL2 available?
- Yes — XS630B4MBL2 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
