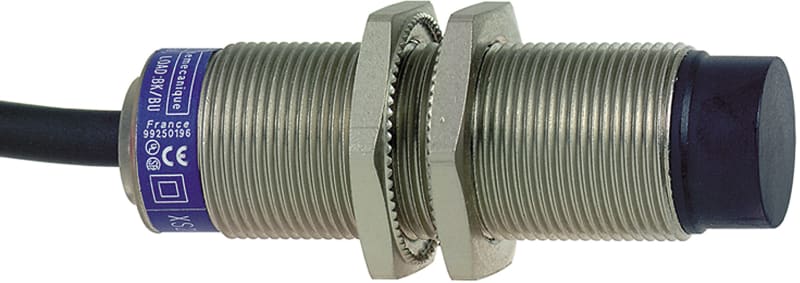

Telemecanique OsiSense XS618B4PAL2 Inductive Proximity Sensor — M18 barrel, Sn 12 mm, PNP, NO, pre-wired cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS618B4PAL2 is an OsiSense XS inductive proximity sensor in an M18 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 12 mm and a non-flush (unshielded) sensing face. It provides a PNP (3-wire DC) output, switching NO (normally open), via pre-wired cable. IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS618B4PAL2
- EAN / GTIN
- 3666916012154
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M18 cylindrical threaded barrel (Nickel-plated brass)
- Mounting
- non-flush (unshielded)
- Nominal sensing distance Sn
- 12 mm
- Output
- PNP (3-wire DC)
- Switching function
- NO (normally open)
- Connection
- pre-wired cable
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916012154
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUYFALNEP60015 Laser Fork Sensor 59 × 15 mm, Teach-In, M8 Connector
Telemecanique
Telemecanique OsiSense XS118BLPBL2 Inductive Proximity Sensor — M18 barrel, Sn 5 mm, PNP, NC, pre-wired cable (2 m)
Telemecanique
Telemecanique XUSL4E30H106L Safety Light Curtain Type 4, Hand Detection (30 mm), 1060 mm Height
Telemecanique
Telemecanique XCRZ03 XCR Limit Switch Square Actuating Rod 200 mm
Telemecanique
Telemecanique XUSZSC172R Mounting Column for Safety Light Curtains, 1720 mm
Telemecanique

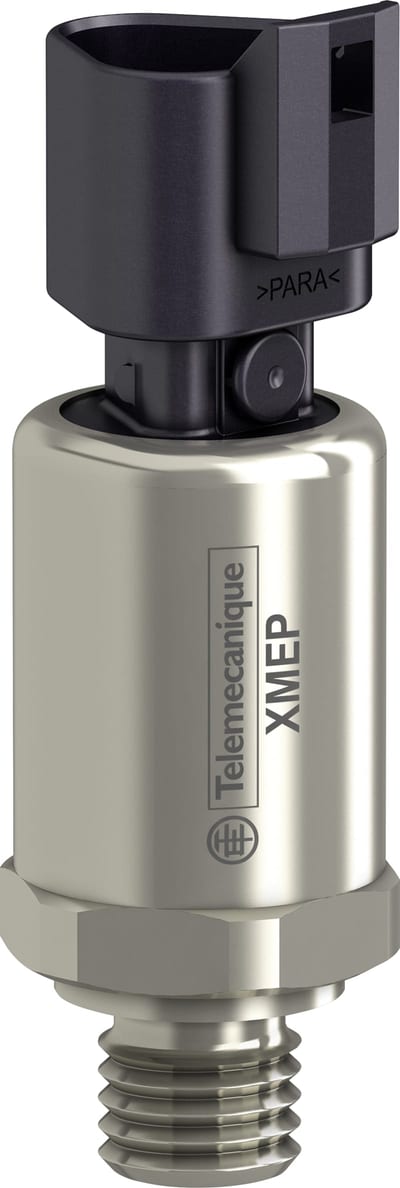

Telemecanique XMEP250BT11F Pressure Transmitter, 0–250 bar, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
Telemecanique

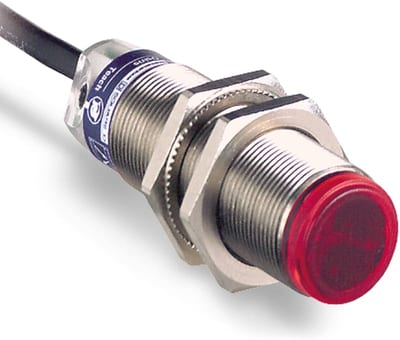

Telemecanique XUB4BPANL2 Photoelectric Sensor M18, Metal, PNP, 2 m cable
Telemecanique
Telemecanique OsiSense XS130BHNBM12 Inductive Proximity Sensor — M12 barrel, Sn 15 mm, NPN, NC, M12 connector (4-Pin)
Technical guides
- Inductive Proximity Sensor Cross-Reference — Telemecanique OsiSense XS, Carlo Gavazzi ICB, Omron E2E, Eaton E57, Turck, Pepperl+Fuchs by Housing, Sensing Distance and Output
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XS618B4PAL2?
- XS618B4PAL2 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XS618B4PAL2.
- What is the HS code for XS618B4PAL2?
- The customs tariff (HS) code for XS618B4PAL2 is 8536.50.
- Who manufactures XS618B4PAL2?
- XS618B4PAL2 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XS618B4PAL2?
- Yes — the XS618B4PAL2 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XS618B4PAL2?
- The minimum order quantity is 1.
- Is XS618B4PAL2 available?
- Yes — XS618B4PAL2 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
