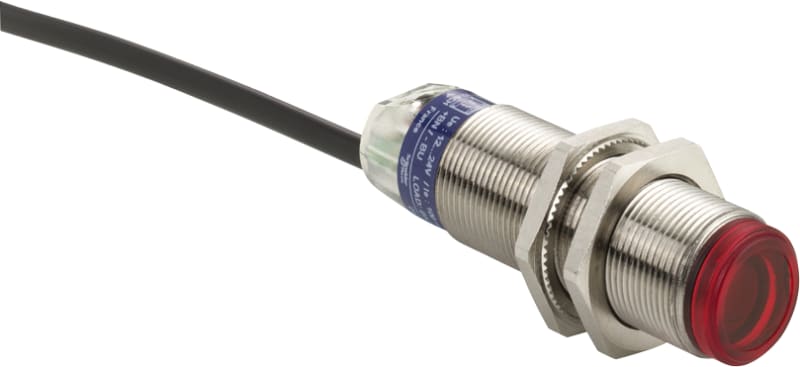

Telemecanique XUBTSPSNL2 Photoelectric Sensor M18, Retroreflective for Transparent Objects, PNP, 2 m cable

Telemecanique XUBTSPSNL2 XUBT M18 retroreflective photoelectric sensor for transparent object detection (bottles, films), PNP output, 2 m cable.

Manufacturer part number (MPN)

XUBTSPSNL2 EAN / GTIN: 3666916032633 Sales unit: pcs Package quantity: 35 pcs Output type: PNP Pre failure notice: No With time function: No Rated switching distance: 1400 mm Max. switching distance: 1400 mm Max. output current: 100 mA With reflector: Yes Analogue output 0 V ... 10 V: No Analogue output 0 mA ... 20 mA: No Analogue output 4 mA ... 20 mA: No Analogue output -10 V ... +10 V: No With other analogue output: No Setting procedure: Teach-In With communication interface analogue: No With communication interface AS-Interface: No With communication interface CANOpen: No With communication interface DeviceNet: No With communication interface Ethernet: No With communication interface INTERBUS: No With communication interface PROFIBUS: No With communication interface RS-232: No With communication interface RS-422: No With communication interface RS-485: No With communication interface SSD: No With communication interface SSI: No Number of semiconductor outputs with signalling function: 1 Number of protected semiconductor outputs: 1 Type of electric connection: Cable radial Type of switching output: PNP/PNP Type of switch function: Programmable/configurable Operation agent-safety class: Safety class 1 Explosion safety category for gas: None Explosion safety category for dust: None Construction type housing: Cylinder, screw-thread Diameter sensor: 18 mm Length of sensor: 64 mm Sensing mode: Light-/dark switching material of optical surface: Plastic Housing material: Plastic Max. output current at protected output: 100 mA Min. reflector distance: 5000 mm Ambient temperature: 0–55 °C Response time: 500 ms Switching frequency: 1000 Hz Type of safety according to IEC 61496-1: 1 Rated control supply voltage DC: 12–24 V Voltage type: AC/DC With monitoring function downstream switching devices: No Laser protection class: None Type of light: Polarized red light With restart blockage: No Suitable for safety functions: No Degree of protection (IP): IP65 Country of origin: France

HS Code

8536.50

• EAN 3666916032633
• SAP 1000003583
• Code 824885
