Telemecanique XUBTAPSWM12 Photoelectric Sensor M18, Retroreflective for Transparent Objects, Plastic, PNP, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUBTAPSWM12 XUBT M18 retroreflective photoelectric sensor for transparent object detection (bottles, films), plastic housing, PNP output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUBTAPSWM12
- EAN / GTIN
- 3666916032664
- Sales unit
- pcs
- Package quantity
- 35 pcs
- Output type
- PNP
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 800 mm
- Max. switching distance
- 800 mm
- Max. output current
- 100 mA
- With reflector
- Yes
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Teach-In
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/PNP
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 92 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 5000 mm
- Ambient temperature
- 0–55 °C
- Response time
- 500 ms
- Switching frequency
- 1000 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Polarized red light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916032664
- SAP 1000342135
- Code 8998757
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique ZCP21M12 Limit Switch Body, Plastic, 1 NO + 1 NC
Telemecanique
Telemecanique XCSDMP590L01M12 Magnetic Safety Switch, 01 m cable
Telemecanique

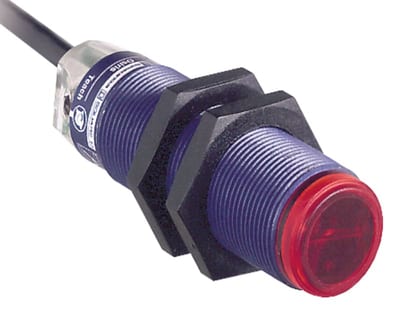

Telemecanique XUB1APBNL2 Photoelectric Sensor M18, Retroreflective, Plastic, PNP, 2 m cable
Telemecanique

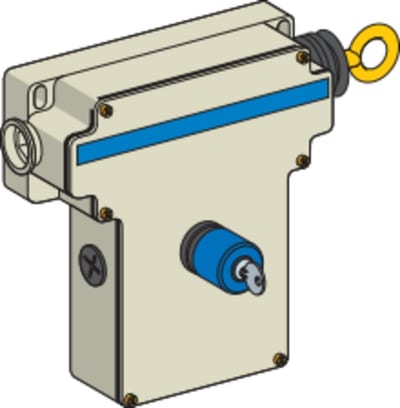

Telemecanique XY2CE5A297 Emergency Stop Rope Pull Switch, 2 NC + 2 NO
Telemecanique

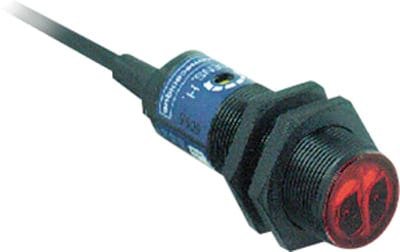

Telemecanique XUYBCO989SP Photoelectric Sensor, Polarised Retroreflective, Red Light, Sn 1.5 m, M8 connector
Telemecanique

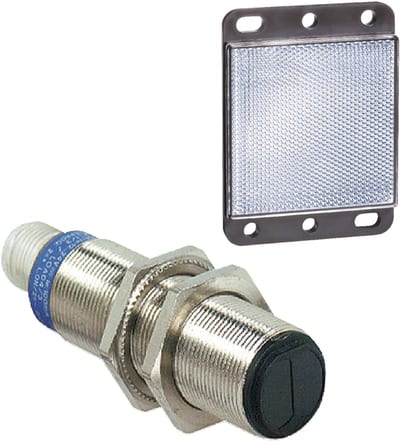

Telemecanique XU9N18PP341D Photoelectric Sensor Ø18 mm, Polarised Reflex, Stainless Steel, M12 Connector
Telemecanique

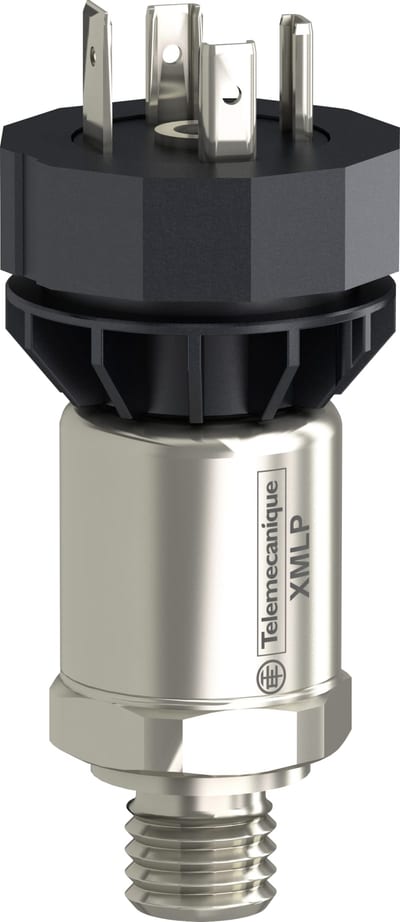

Telemecanique XMLPM00GC21F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4
