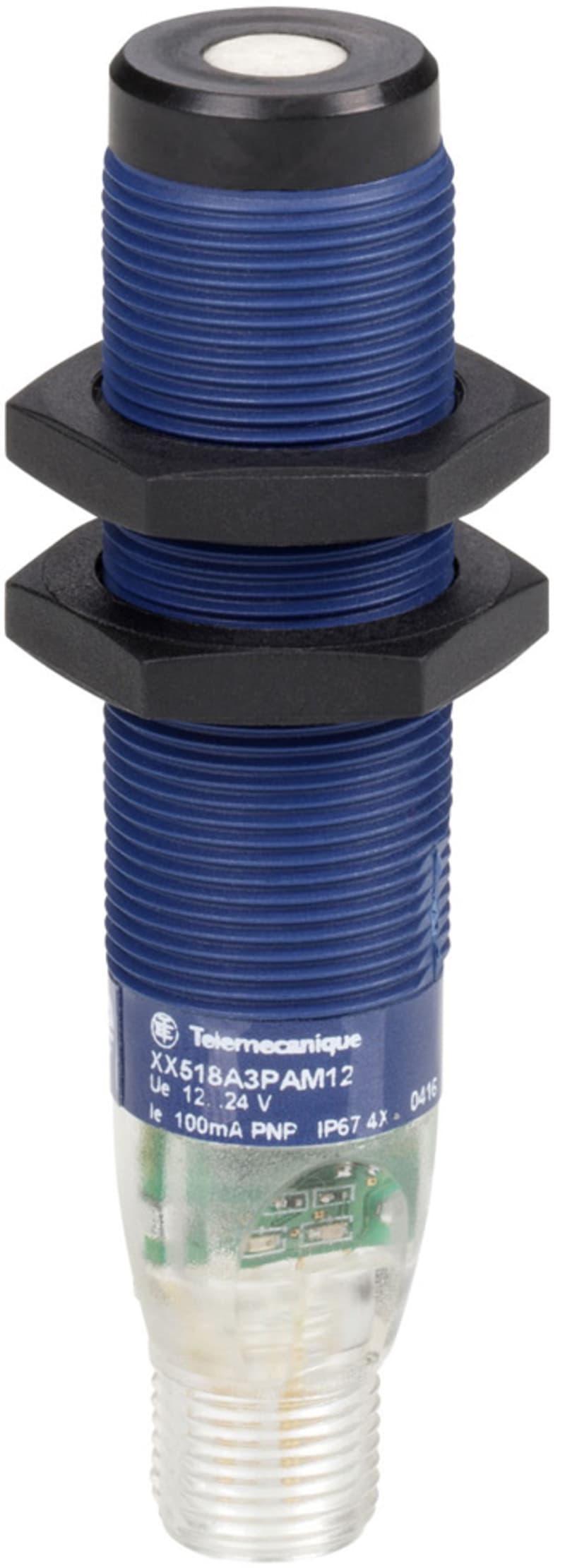

Telemecanique XX518A3PAM12 Ultrasonic Sensor, Sn 5 m, PNP, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XX518A3PAM12 OsiSense XX ultrasonic proximity sensor, Sn 5 m, PNP output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XX518A3PAM12
- EAN / GTIN
- 3666916079843
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Diameter
- 18 mm
- Output type
- PNP
- Voltage type
- AC/DC
- Max. output current
- 100 mA
- Housing material
- Plastic
- Ambient temperature
- -20–65 °C
- Switching frequency
- 40 Hz
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/PNP
- Type of switch function
- Normally open contact (NO)
- Blind zone
- 51 mm
- Setting procedure
- Teach-In
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- No-load current
- 40 mA
- Relative linearity deflection
- 0 %
- Relative repeat accuracy
- 1.27 %
- Synchronisation possible
- No
- Supply voltage
- 12–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Width sensor
- 18 mm
- Diameter sensor
- 18 mm
- Height of sensor
- 18 mm
- Length of sensor
- 77.6 mm
- Adjustable distance
- 51–508 mm
- Measuring range length
- 51–508 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916079843
- SAP 1000058759
- Code 8872160
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XS112B3PAM12 Inductive Proximity Sensor Ø12 mm, Threaded, PNP NO, M12 connector
Telemecanique
Telemecanique ZCE02 Roller Plunger Operating Head for XC Standard Limit Switches
Telemecanique
Telemecanique OsiSense XS612B1PAL2 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique ZCMD21C12 Limit Switch Body, Metal, NO/NC, Snap-action
Telemecanique
Mushroom Head Push/turn Black Ø40mm
ZB5AS52
Telemecanique
Telemecanique OsiSense XS1N18PA349D Inductive Proximity Sensor — M18 barrel, Sn 10 mm, PNP, NO
Telemecanique
Telemecanique OsiSense XS8C4A4PCP20 Inductive Proximity Sensor — 40 × 40 × 117 mm block, Sn 40 mm, PNP, NO or NC, screw terminals
Telemecanique
Telemecanique XUB0BPSNM12 Multimode Photoelectric Sensor, Metal, PNP, programmable, M12 connector
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XX518A3PAM12?
- XX518A3PAM12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XX518A3PAM12.
- What is the HS code for XX518A3PAM12?
- The customs tariff (HS) code for XX518A3PAM12 is 8536.50.
- Who manufactures XX518A3PAM12?
- XX518A3PAM12 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XX518A3PAM12?
- Yes — the XX518A3PAM12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XX518A3PAM12?
- The minimum order quantity is 1.
- Is XX518A3PAM12 available?
- Yes — XX518A3PAM12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
