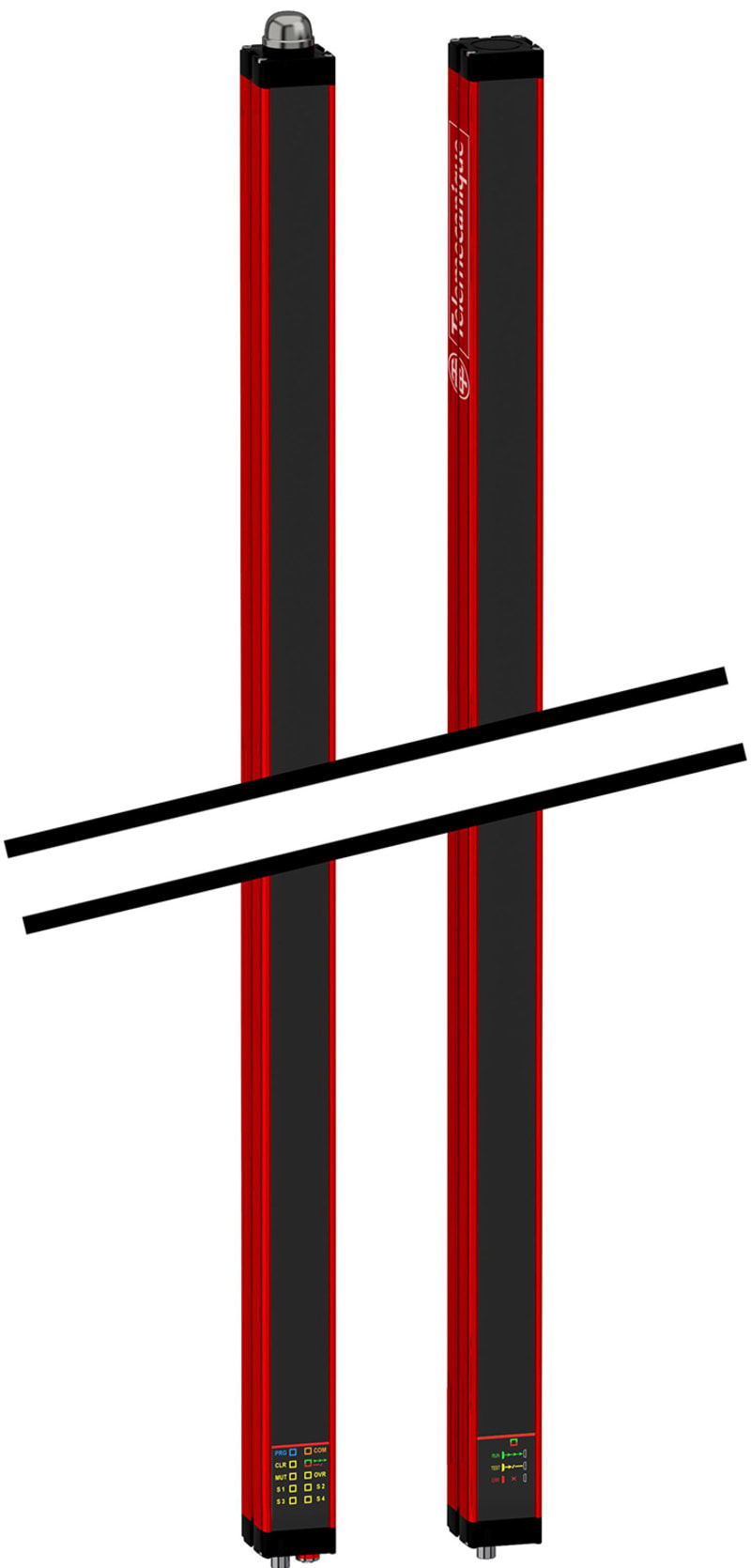

Telemecanique XUSL4MA30H121N Type 4 Safety Light Grille with Integrated Muting, 1210 mm protected height
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL4MA30H121N type 4 safety light grille with integrated muting function, 1210 mm protected height, for conveyor and palletiser openings where material must pass but persons must be detected.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL4MA30H121N
- EAN / GTIN
- 3666916027516
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 3
- Width sensor
- 50 mm
- Height of sensor
- 1320 mm
- Length of sensor
- 55 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- With muting function
- Yes
- Override possible
- No
- Response time
- 17.6 ms
- Reduced resolution
- Yes
- Transmission range of the safety field
- 12 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 1210 mm
- Type of safety according to IEC 61496-1
- 4
- Voltage type
- DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP67
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916027516
- SAP 1200357473
- Code 82360816
